Quick Details
-
Rated Loading Capacity:
-
14T
-
Rated Lifting Moment:
-
different
-
Max. Lifting Height:
-
28.5m
-
Span:
-
21.3m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAVAC
-
Driving way:
-
Hydraulic motor drive, two speed
-
Safety system:
-
Safe load moment limiter
-
Boom type:
-
4/5/6sections
-
Operation system:
-
Wireless remote control and manual
-
Turning Angle/speed:
-
0-360° endless rotating/60sec
-
Outriggers:
-
Hydraulic automatic support
-
Start mode:
-
Electric start
-
Climbing ability:
-
20°(36%)
-
Startup performance:
-
-5°C~40°C
Quick Details
-
Weight (KG):
-
1800
-
Marketing Type:
-
Hot Selling 2023
-
Application:
-
Construction, Narrow Space
-
Rated Loading Capacity:
-
14T
-
Rated Lifting Moment:
-
different
-
Max. Lifting Height:
-
28.5m
-
Span:
-
21.3m
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
CHAVAC
-
Driving way:
-
Hydraulic motor drive, two speed
-
Safety system:
-
Safe load moment limiter
-
Boom type:
-
4/5/6sections
-
Operation system:
-
Wireless remote control and manual
-
Turning Angle/speed:
-
0-360° endless rotating/60sec
-
Outriggers:
-
Hydraulic automatic support
-
Start mode:
-
Electric start
-
Climbing ability:
-
20°(36%)
-
Startup performance:
-
-5°C~40°C

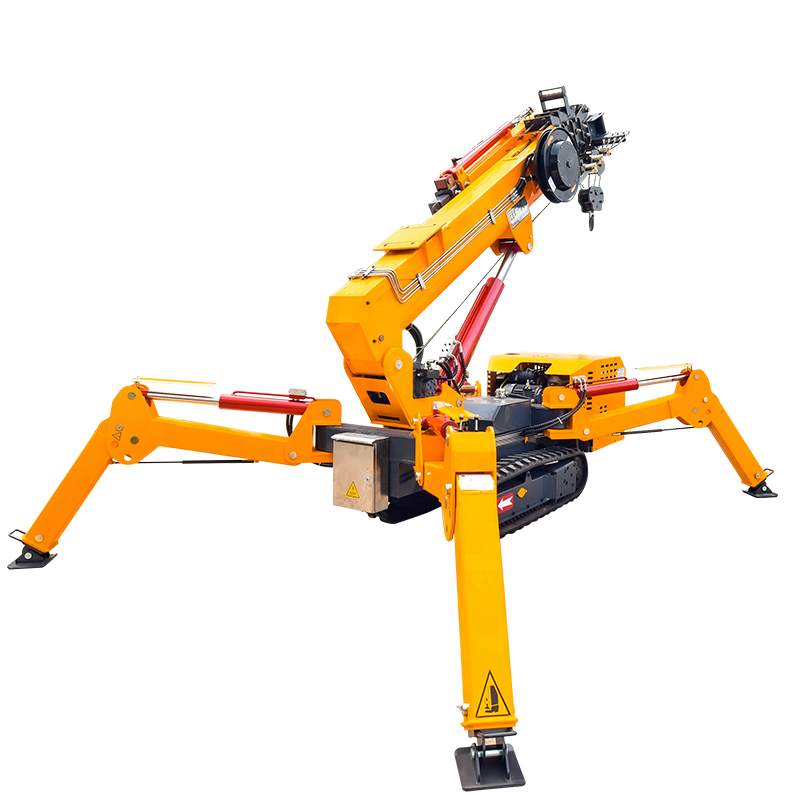

CHAVAC Crawler Spider Crane combines the space-saving qualities of a spider crane wi t h the powerful lifting capabilities of a pick-and-carry crane inside one practical machine. This compact equipment offers an alternate solution to the difficulties associated with lifting in areas with restricted access.
|
Model Type |
EPFC 1.2 |
EPFC2.0 |
EPFC3.0 |
EPFC5.0 |
EPFC8.0 |
EPFC 10 |
EPFC12 |
EPFC1 4 |
|
Lifting Height/Boom Qty |
5.8m/4 |
6.8m/5 |
10m/5 |
17m/5 |
18.5 m /5 |
21m/5 |
24.5 m /5 |
24.5 m /5 |
|
Capacity |
1.2 ton |
2 ton |
3ton |
5ton |
8ton |
10 ton |
12ton |
14ton |
|
Working radius |
5m |
6m |
9m |
15.5m |
17m |
20m |
23m |
23m |
|
Boom length (m ) |
1.7 - 5 m |
1.7-6m |
2.8-8.2m |
4-15m |
4.5-16m |
5-21m |
5.5-23m |
5.5-23m |
|
Boom Angle/time |
0-7 5 °/13sec |
|||||||
|
Turning Angle/speed |
0-360° endless rotating/60sec |
|||||||
|
Outriggers |
Hydraulic automatic support |
|||||||
|
Driving way |
Hydraulic motor drive, two speed |
|||||||
|
Driving speed |
0-2.5km/h |
0-5.5km/h |
||||||
|
Grade ability |
20°(36%) |
|||||||
|
Engine(Dual Power) |
Electric + Gasoline |
Electric + Diesel Dual Power (ERUO II emission standard) |
||||||
|
Oil Engine |
HONDA 9.6KW |
Chang chai |
YUNNEI YN27GBZ/2.7L |
Quan chai |
||||
|
Fuel/volume |
Gasoline/8L |
diesel/8L |
diesel/45L |
|||||
|
Battery capacity |
12v 45AH |
24v 45AH |
||||||
Offer OEM & ODM service,according to different materials size and weight.
Please inform us the materials you want to lift,as well as size and weight to get a proper proposal.
1) The Crawler Spider Crane for moving loads quickly, easily, and safely.
2) Spider crane, suitable for occasions with limited space.
3) The spider crane is a full-slewing, boom-type, full-hydraulic transmission crane.
4) The main arm is 4-5 sections. The main arm section adopts a U-shaped structure. The single-stage telescopic oil cylinder and the wire rope telescopic mechanism can realize the synchronous expansion and contraction of the main arm.
5) The telescoping limit of the boom uses the double insurance of the marking line and the alarm.
