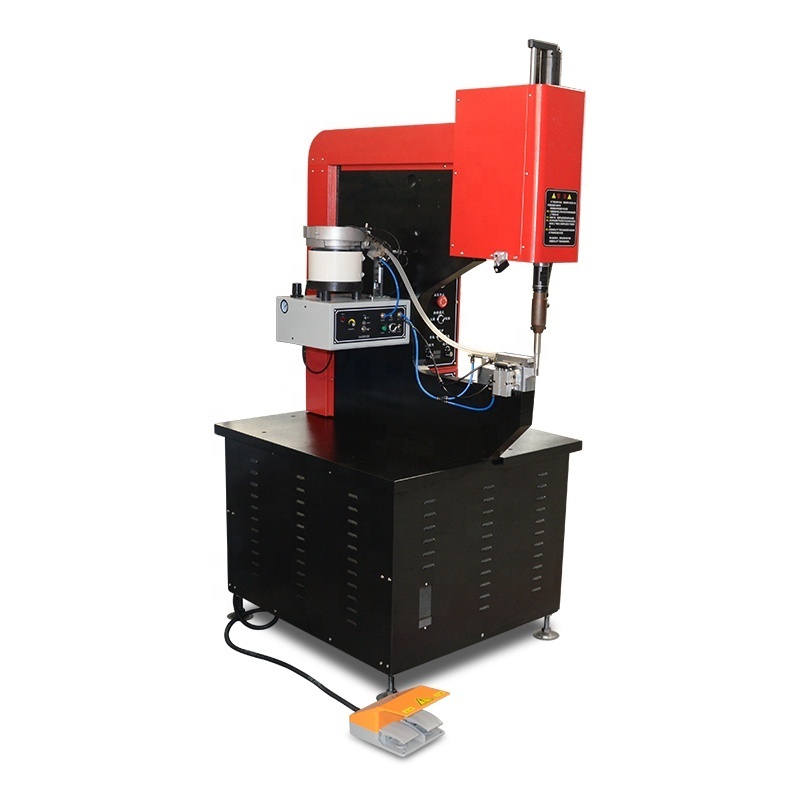

From our standard product offering insertion machines, to our build-to-order products and custom engineered insertion solutions,
JULY has the ability to provide you with a totally unified solution for virtually any of your insertion challenges. Whether your
company is new to hardware insertion, or inserts millions of fasteners each year, Our solution oriented approach will ensure that
you get the correct system for your needs.
- Product Details
- {{item.text}}
Quick Details
-
Power (kW):
-
2.2
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
Quick Details
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
JULY
-
Weight (KG):
-
530
-
Power (kW):
-
2.2
-
After-sales Service Provided:
-
Online support
-
After Warranty Service:
-
Video technical support
-
Local Service Location:
-
None
Products Description
PRODUCT SPECIFICATIONS
|
No
|
Item
|
Data
|
|
1
|
C type throat depth
|
500MM
|
|
2
|
C type throat hight
|
365MM
|
|
3
|
Stpoke
|
100MM
|
|
4
|
Nominal pressure
|
100KN(10T)adjustable
|
|
5
|
Positive limiting position equipment
|
Control down-limit position
|
|
6
|
Drive model
|
Lower noise and high efficiency hydraulical pressure system
|
|
7
|
Machine load repeat precision
|
±1%
|
|
8
|
Die assmble replace model
|
Down clip screw loose quickly peplace block
|
|
9
|
Auto sending standoff shake plate (choice)
|
quickly auto-supply material system
|
|
10
|
Laser positioning instruction
|
Quickly position
|
|
11
|
Single machine shape spec(MM)
|
840*710*1950MM
|
|
12
|
Die assmble replace model
|
2.2KW Three-phase 380V
|
Details Images
Positive Limit
The positive limit system provides an easily adjustable method of precisely maintaining the stopping point of the machine
cylinder, effectively preventing the indentation of soft materials when inserting the fastener, such as Aluminum, Glass Fiber,
Printed Circuit Board, Plastic and various composite materials. The product thickness can be accurate to ±0.05mm.
cylinder, effectively preventing the indentation of soft materials when inserting the fastener, such as Aluminum, Glass Fiber,
Printed Circuit Board, Plastic and various composite materials. The product thickness can be accurate to ±0.05mm.
Anti Pressing Hand Protective System
Intelligent fastener insertion machine is equipped with mandatory our patented safety protection system, automatic detection on
the anti pressing hand function is working when starting up.
the anti pressing hand function is working when starting up.
Replaceable Die Base Mounting Plate
The bottom die base replace frequently during working, which leads to screw striped of the lock thread lose efficacy in long term
working. Our machine is specially designed the quench hardening and grinding quick changing bottom plate for the die base.
working. Our machine is specially designed the quench hardening and grinding quick changing bottom plate for the die base.
Main Electrical Cabinet and Control Panel
Control the power, parameter setting and adjust the pressure etc.
Auto Feeding System (Optional)
Intelligent ON and OFF of the bowl feeder to avoid long time friction pf fasteners under vibration state, resulting in coating
peeling and abrasion. Used for the size of M2-M6 screws, nuts and standoffs automatic feeding. The maximum length nuts and
standoffs can reach 30mm. The system has the function of fast removal residue fastener.
peeling and abrasion. Used for the size of M2-M6 screws, nuts and standoffs automatic feeding. The maximum length nuts and
standoffs can reach 30mm. The system has the function of fast removal residue fastener.
Auto Feeding Tooling( Optional)
According to different feeding method and fasteners we have designed different tooling to achieve the machine working
automatically.
automatically.
Auto Feeding Tooling( Optional)
According to different feeding method and fasteners we have designed different tooling to achieve the machine working
automatically.
automatically.
