Quick Details
-
Dimension(L*W*H):
-
10750*6053*4670mm
-
Weight (KG):
-
65000 kg
-
Product name:
-
Container Handler
-
Type:
-
Used Container Handler
-
Color:
-
Customized Color
-
Application:
-
Lifting Heavy Items
Quick Details
-
Warranty:
-
12 Months
-
Place of Origin:
-
XUZHOU
-
Brand Name:
-
China Brand
-
Dimension(L*W*H):
-
10750*6053*4670mm
-
Weight (KG):
-
65000 kg
-
Product name:
-
Container Handler
-
Type:
-
Used Container Handler
-
Color:
-
Customized Color
-
Application:
-
Lifting Heavy Items
Products Description

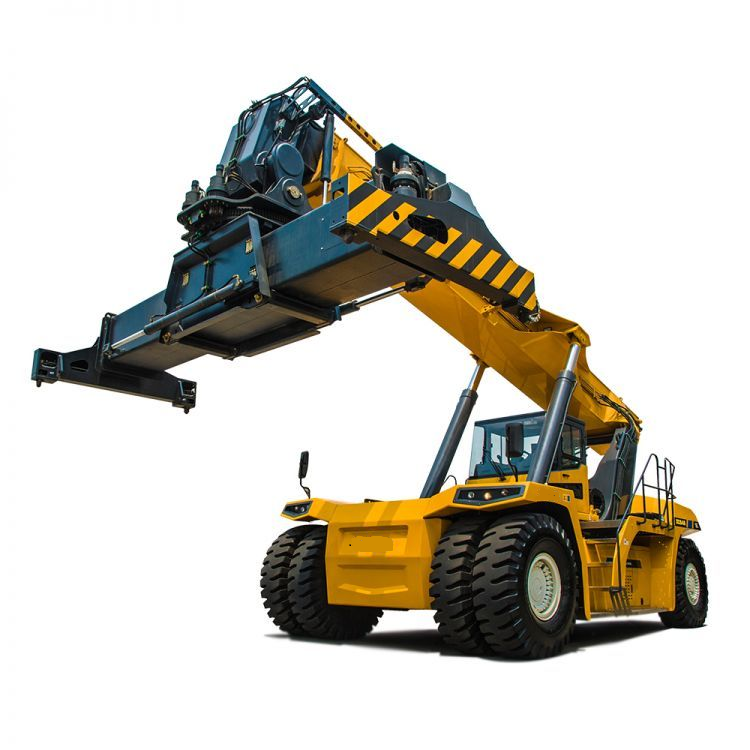

Reach stacker crane XCS4531
for Sale
1.High-strength integral hood and one-body impact molding overhead guard.
2.Smooth and novel styling, balance weight with car design elements, strong personality, dynamic.
3.Optimized design of load sensing hydraulic system reduces vehicle fuel consumption Effectively.
4.Adopted interactive ergonomic design to improve operating comfort. Equipped with wide field of view mast to improve driver's field of view.
5.Integral steering device, more sensitive directivity, smooth operation, more stable quality.
6.Interior space of car body is more spacious Parts Positions are more reasonable. Maintainability of machine is better.
2.Smooth and novel styling, balance weight with car design elements, strong personality, dynamic.
3.Optimized design of load sensing hydraulic system reduces vehicle fuel consumption Effectively.
4.Adopted interactive ergonomic design to improve operating comfort. Equipped with wide field of view mast to improve driver's field of view.
5.Integral steering device, more sensitive directivity, smooth operation, more stable quality.
6.Interior space of car body is more spacious Parts Positions are more reasonable. Maintainability of machine is better.
Contact way
Lareina Yang
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15107124962
Web: www.newindu.com
Newindu Construction Engineering (Shanghai) Co., Ltd.
Add: Suite 2806, Super Ocean Finance Center, No.2067 West Yan'an Road, Shanghai 200336, China.
Tel: +86-21-62770109 Fax: +86-21-62120109
Mobile / Whatsapp/ Wechat: +86-15107124962
Web: www.newindu.com
Product Paramenters
|
XCS4531 container front stacker crane
|
|
|
|
|
||||
|
Reachstacker type
|
fuel oil
|
|
|
|
||||
|
Rated load
|
45t
|
|
|
|
||||
|
Machine quality
|
65t
|
|
|
|
||||
|
Applicable conditions
|
ISO 20ft standard container
|
|
|
|
||||
|
basic configuration
|
Engine model: QSM11
|
Rated power/speed: 250kw/2100rpm
|
|
|
||||
|
|
Gearbox model: 15.7TE30510
|
Gear position: front 5 and rear 3
|
|
|
||||
|
|
Drive axle model: D102PL341
|
Maximum static load: 150t
|
|
|
||||
|
|
Wheel lift model: 18.00-25
|
Tier: 40PR
|
|
|
||||
|
|
Main pump: Parker P2105 pump set*2
|
Controller: German
|
|
|
||||
|
spreader
|
Model: XDJ450T
|
Side shift distance: ±800mm
|
|
|
||||
|
|
Rotation angle: +105/-195°
|
Tilt angle: 0°
|
|
|
||||
|
|
Weight: 4.9t
|
Applicable object: ISO20ft container
|
|
|
||||
|
jib
|
Maximum lifting height: 9.2m
|
Inclination angle: 0～60°
|
|
|
||||
|
Machine parameters
|
Vehicle weight: 65t
|
Total length: 10750mm
|
|
|
||||
|
|
Overall width: 6053/4200mm
|
Total height: 4670mm
|
|
|
||||
|
|
Wheelbase: 6000mm
|
Minimum ground clearance: 350mm
|
|
|
||||
|
|
Front track: 3033mm
|
Rear track: 2770mm
|
|
|
||||
|
performance parameters
|
Rated load: 45t
|
Stacking layers: 3 (9′6″/8′6″)
|
|
|
||||
|
|
Maximum lifting speed (no load/full load): 420/250 mm/s
|
Maximum descending speed (no load/full load): 360/360 mm/s
|
|
|
||||
|
|
Maximum driving speed (no load/full load): 25/21 km/h
|
Gradeability (no load/full load): 39/32%
|
|
|
||||
|
|
Working pressure of hydraulic system: 260bar
|
Minimum turning radius: 8000mm
|
|
|
||||
|
|
20' container aisle width A1: 11300mm
|
40' container aisle width A1: 13600mm
|
|
|
||||
