- Product Details
- {{item.text}}
Quick Details
-
Warranty:
-
30 years warranty
-
Brand Name:
-
DAH
-
Model Number:
-
DHN-78X16
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2465*1134*35mm
-
Product name:
-

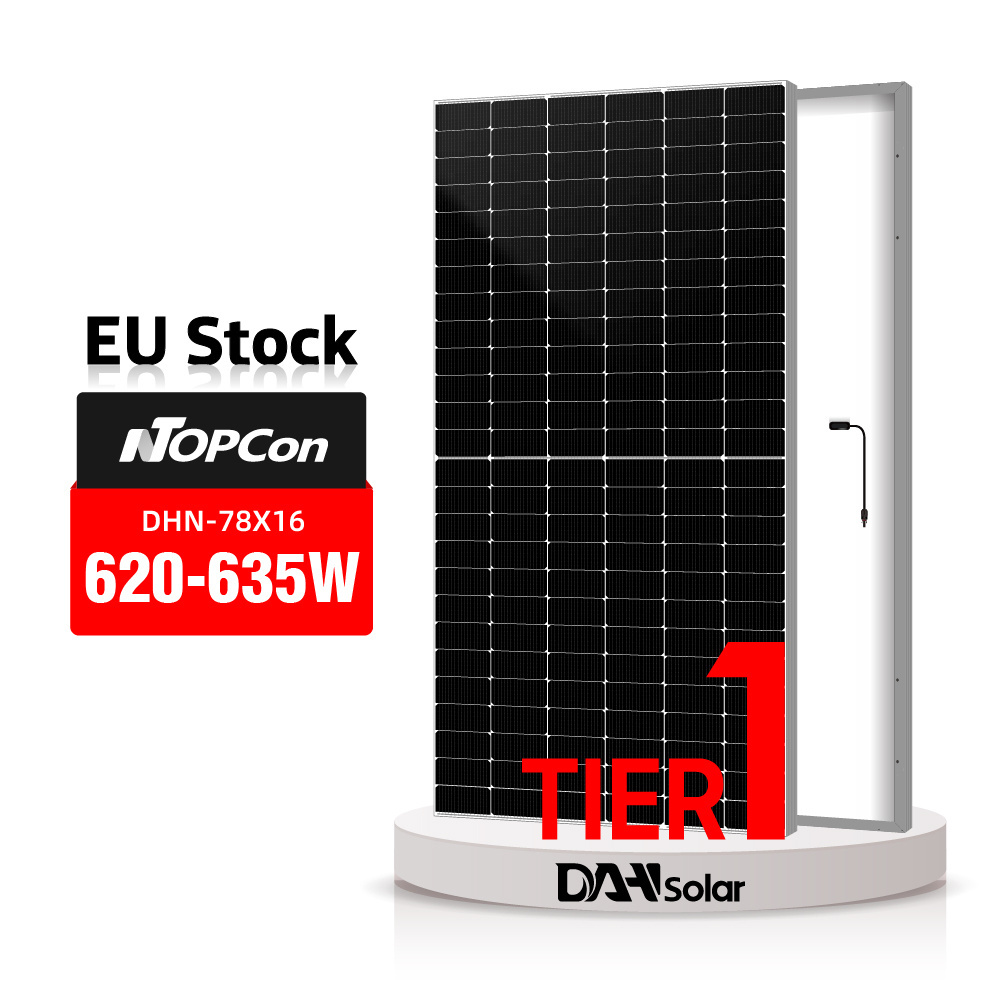

rotterdam n type topcon 1000w paneles solaes
-
Cable:
-
4.0mm2 , 300/300mm in Length
-
Glass:
-
3.2mm High Transmission, Antireflection Coating
-
Junction Box:
-
IP68, 3 Bypass Diodes
-
Connector:
-
MC4 Compatible
-
Maximum System Voltage:
-
1500V DC
-
Power Tolerance:
-
0~+5W
-
Application Level:
-
Class A
-
Cells Type:
-
N-type 182*91mm
-
Packing:
-
31pcs/Pallet, 496pcs/40HQ
Quick Details
-
Cell size:
-
182mmx182mm
-
Type:
-
PERC, Half Cell, Bifacial, Double-glass, All Black, N-TYPE, TOPCON
-
Panel Efficiency:
-
22.18%
-
Warranty:
-
30 years warranty
-
Brand Name:
-
DAH
-
Model Number:
-
DHN-78X16
-
Place of Origin:
-
Anhui, China
-
Panel Dimensions:
-
2465*1134*35mm
-
Product name:
-
rotterdam n type topcon 1000w paneles solaes
-
Cable:
-
4.0mm2 , 300/300mm in Length
-
Glass:
-
3.2mm High Transmission, Antireflection Coating
-
Junction Box:
-
IP68, 3 Bypass Diodes
-
Connector:
-
MC4 Compatible
-
Maximum System Voltage:
-
1500V DC
-
Power Tolerance:
-
0~+5W
-
Application Level:
-
Class A
-
Cells Type:
-
N-type 182*91mm
-
Packing:
-
31pcs/Pallet, 496pcs/40HQ
Are you looking for solar panels to start your business? We accept individual buyers,engineering in.stallers, distributors, etc. To meet your various needs, DAH solar panel have a series of international authoritative certificates such as CE, TUV, SGS, IEC, MCS,INMETRO, CQC.
|
Maximum Power(Pmax)
|
620w
|
625w
|
630w
|
635w
|
|
Open-circuit Voltage (Voc)
|
55.6
|
55.8
|
56
|
56.2
|
|
Maximum Power Voltage(Vmp)
|
46.8
|
47
|
47.2
|
47.4
|
|
Short-circuit Current (Isc)
|
14.08
|
14.14
|
14.20
|
14.26
|
|
Maximum Power Current (Imp)
|
13.25
|
13.30
|
13.35
|
13.40
|
|
Solar Panel Efficiency
|
22.18%
|
22.36%
|
22.54%
|
22.72%
|
Technical Certification
DAH solar panel have full line of international authoritative certificates such as CE, TUV, SGS, IEC, MCS, INMETRO, etc.Full Screen PV Module is developed by DAH Solar own R&D team, has got global patents in more than 18 countries.
About Us
After years cultivation, DAH Solar has established the silicon wafer, solar cell, PV module, integrated PV system manufacturing bases. DAH Solar has accomplished the industrial integration, which would drive the high-speed development of the enterprise.
Quality Control
During more than 20 production process, each solar panel will be quality tested & inspected and 2 times EL tests by professional and precise instruments, so that each delivery to vour hands is perfect.
Projects & Exhibitions
DAH Solar has exported solar system to more than 100 countries, with rich experience in designing,exporting, installation. Our local engineers team can provide timely after-sales service. Also overseas local projects visiting is available to help you know more about our products quality before order.
