Quick Details
-
Brand Name:
-
BEIHAI
-
Model Number:
-
BEIHAI
-
Surface Treatment:
-
Smooth Surface
-
Type:
-
basalt fiber
-
Color:
-
Brown
-
Feature:
-
+45°/45°
-
Density (g/cm3):
-
2.63
-
Tensile Strength(MPa):
-
3200-3850
-
Elastic modulus (Gpa):
-
93
-
Elongation at break(%):
-
3.1
-
Softening point (℃):
-
1050
-
Working temperature(℃):
-
-260~650
-
Temporary temperature (℃):
-
1100
Quick Details
-
Application:
-
boats, automobiles,construction
-
Technique:
-
Molded
-
Place of Origin:
-
Jiangxi, China
-
Brand Name:
-
BEIHAI
-
Model Number:
-
BEIHAI
-
Surface Treatment:
-
Smooth Surface
-
Type:
-
basalt fiber
-
Color:
-
Brown
-
Feature:
-
+45°/45°
-
Density (g/cm3):
-
2.63
-
Tensile Strength(MPa):
-
3200-3850
-
Elastic modulus (Gpa):
-
93
-
Elongation at break(%):
-
3.1
-
Softening point (℃):
-
1050
-
Working temperature(℃):
-
-260~650
-
Temporary temperature (℃):
-
1100
Product Introduction

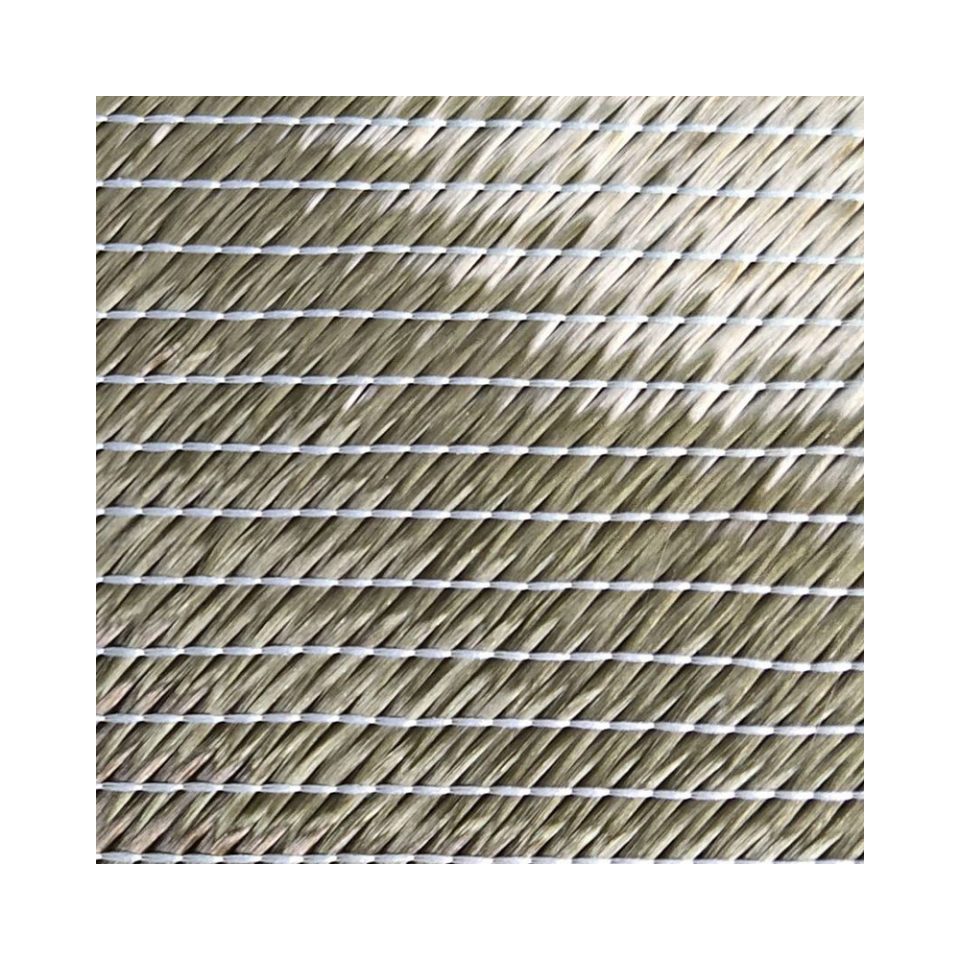

Basalt Fiber Biaxial Fabric
Basalt fiber biaxial fabric is a type of reinforcement material used in composite manufacturing. It consists of basalt fibers woven into a fabric with fibers running in two main directions: warp (lengthwise) and weft (crosswise). This biaxial arrangement of fibers provides balanced strength and stiffness properties in two perpendicular directions.
Product Feature
1. Balanced Strength: Basalt fiber biaxial fabric offers balanced tensile strength and stiffness in both the warp and weft directions, providing improved mechanical properties in multiple orientations.
2. Flexibility: The fabric is flexible and conformable, allowing it to be easily draped or molded onto complex shapes and surfaces during composite manufacturing.
3. Compatibility: Basalt fiber biaxial fabric is compatible with various resin systems, enabling good adhesion and efficient impregnation during the composite production process.
4. Corrosion Resistance: Basalt fibers exhibit good resistance to corrosion and chemicals, making the biaxial fabric suitable for applications in corrosive environments.
5. Fire Resistance: Basalt fibers are naturally fire-resistant, providing enhanced fire protection to the composite structure.
2. Flexibility: The fabric is flexible and conformable, allowing it to be easily draped or molded onto complex shapes and surfaces during composite manufacturing.
3. Compatibility: Basalt fiber biaxial fabric is compatible with various resin systems, enabling good adhesion and efficient impregnation during the composite production process.
4. Corrosion Resistance: Basalt fibers exhibit good resistance to corrosion and chemicals, making the biaxial fabric suitable for applications in corrosive environments.
5. Fire Resistance: Basalt fibers are naturally fire-resistant, providing enhanced fire protection to the composite structure.
Production Process
Product Parameters
|
Model
|
BX600(45°/-45°)-1270
|
|
Resin fit type
|
UP 、E P、V E
|
|
Fiber diameter(um)
|
16um
|
|
Fiber density(tex))
|
300±5%
|
|
Weitght(g/㎡)
|
600g±5%
|
|
+45 density（Root/cm）
|
4.33±5%
|
|
-45 density (Root/cm)
|
4.33±5%
|
|
Tensile strength（Laminate）Mpa
|
＞160
|
|
Standard width (mm)
|
1270
|
|
Other weight specifications (customizable)
|
350g、450g、800g、1000g
|
Application
1. Construction and Infrastructure: Basalt fiber biaxial fabric is used in the construction industry for reinforcing concrete elements, such as walls, columns, and beams. It enhances the structural integrity and load-bearing capacity of the composite materials used in construction.
2. Automotive and Transportation: The biaxial fabric finds applications in the automotive industry for reinforcing composite parts, including body panels, interior components, and structural reinforcements. It provides balanced strength and stiffness properties in multiple directions.
3. Industrial Equipment: Basalt fiber biaxial fabric is utilized in the manufacturing of industrial equipment, such as tanks, pipes, and pressure vessels. It offers improved mechanical properties and corrosion resistance compared to traditional materials.
4. Sports and Recreation: The biaxial fabric is used in the production of sporting goods, such as helmets, paddles, and protective gear. It provides balanced reinforcement and impact resistance for enhanced performance and safety.
5. Marine and Offshore: Basalt fiber biaxial fabric finds applications in marine and offshore structures, including boat hulls, decks, and offshore platforms. It offers balanced reinforcement and corrosion resistance in both longitudinal and transverse directions.
2. Automotive and Transportation: The biaxial fabric finds applications in the automotive industry for reinforcing composite parts, including body panels, interior components, and structural reinforcements. It provides balanced strength and stiffness properties in multiple directions.
3. Industrial Equipment: Basalt fiber biaxial fabric is utilized in the manufacturing of industrial equipment, such as tanks, pipes, and pressure vessels. It offers improved mechanical properties and corrosion resistance compared to traditional materials.
4. Sports and Recreation: The biaxial fabric is used in the production of sporting goods, such as helmets, paddles, and protective gear. It provides balanced reinforcement and impact resistance for enhanced performance and safety.
5. Marine and Offshore: Basalt fiber biaxial fabric finds applications in marine and offshore structures, including boat hulls, decks, and offshore platforms. It offers balanced reinforcement and corrosion resistance in both longitudinal and transverse directions.
