AEROSPACE ALUMINUM BARS

Liaocheng City Kuncheng Steel Pipe Co., Ltd. stocks aluminum bar for both aerospace and commercial applications. Since aluminum weighs approximately a third the weight of similar steel section, it is the obvious choice when weight is a factor.

Excellent resistance to corrosion permits its use without protection in most environments.  Aluminum’s ability to transmit heat rapidly and efficiently make it an ideal material for the heat transfer processes.    Aluminum bar can formed readily and has excellent weld ability.

Liaocheng City Kuncheng Steel Pipe Co., Ltd. stocks bars in 2024, 6061, 6063, 6101 and 7075 alloys in a variety of tempers.

Applications/markets:

• Aerospace
• Commercial Transportation
• Building & Construction
• Infrastructure
• Electrical
• Renewable Energy
• Mass Transportation Alloy Characteristics

  Alloy Series	Corrosion Resistance	Machinability	Strength	Formability
  2XXX	Low/Fair	Good/Ex	High	Low
  6XXX	Good	Good	Medium	Good
  7XXX	Fair/Good	Good/Ex	Very High	Low

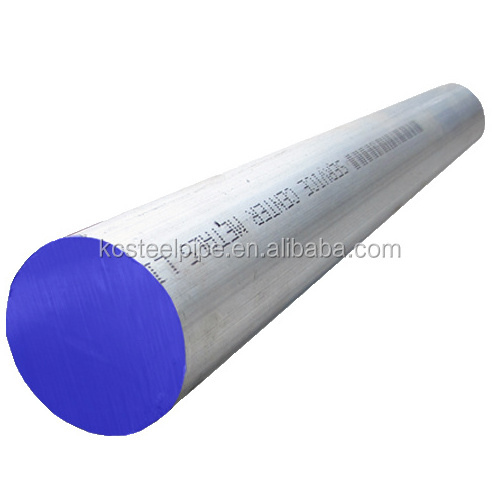

  2024 ALUMINUM AEROSPACE BAR

  AL-2024 (UNSA902404) is an aerospace aluminum bar with cold finished or extruded aluminum wrought product providing high to moderate strength, very good machinability and weld ability with improved stress corrosion cracking resistance.

  2024 is known as the “aircraft alloy” in machining rod. It is one of the most popular alloys for cold heading and roll threading applications. It has high strength and excellent fatigue resistance. It is excellent on parts where good strength –to-weight ratio is needed. Machinability is good in heat treated and annealed condition. Commonly used in aircraft structural components, truck wheels, medical instruments, and screw machine products. We stock 2024-T351, 2024-T3511, and 2024-T4.




  Available shapes: Flats, squares and rounds

  Tempers: T351, T3511 & T4

  Specifications: ASTM B211, AMS 4120, AMS 4339, AMS-QQ-A-225/6, ASTM B221, AMS 4152, AMS 4164, AMS 4165, AMS-QQ-A-200/3

  Typical Chemical Composition %

  Weight %	Si	Fe	Cu	Mn	Mg	Cr	Zn	Ti	Each	Total
  Minimum			3.80	1.20	0.30
  Maximum	0.50	0.50	4.90	1.80	0.90	0.10	0.25	0.15	0.05	0.15

  Remainder Aluminum

  Typical Mechanical Properties

  Temper	Tensile	Hardness
  	Ultimate	Yield	Elongation	Brinell
  	KSI	MPA	KSI	MPA	%
  T4, T351	68	469	47	324	19	120



• We are looking forward to cooperating with you, and welcome your inquiry!
