Quick Details
-
Max. Lifting Load:
-
500t
-
Span:
-
7.5m~22.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kehao
-
Weight (KG):
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Double girder bridge crane 50 ton
-
Structure:
-
Box or Trussed
-
Character:
-
double girder
-
Moving speed:
-
20m/min
-
Power Supply:
-
3-Phase
-
Weight overload protection function:
-
Included
-
Voltage lower protection function:
-
Included
-
Voltage:
-
User local
-
Electric hoist:
-
HB/BCD
Quick Details
-
Max. Lifting Height:
-
6m 9m 12m 18m 24m 30m
-
Applicable Industries:
-
Lifting Industry
-
Rated Lifting Moment:
-
100 to 50000 KN
-
Max. Lifting Load:
-
500t
-
Span:
-
7.5m~22.5m
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Kehao
-
Weight (KG):
-
1000 kg
-
After-sales Service Provided:
-
Engineers available to service machinery overseas
-
Product name:
-
Double girder bridge crane 50 ton
-
Structure:
-
Box or Trussed
-
Character:
-
double girder
-
Moving speed:
-
20m/min
-
Power Supply:
-
3-Phase
-
Weight overload protection function:
-
Included
-
Voltage lower protection function:
-
Included
-
Voltage:
-
User local
-
Electric hoist:
-
HB/BCD

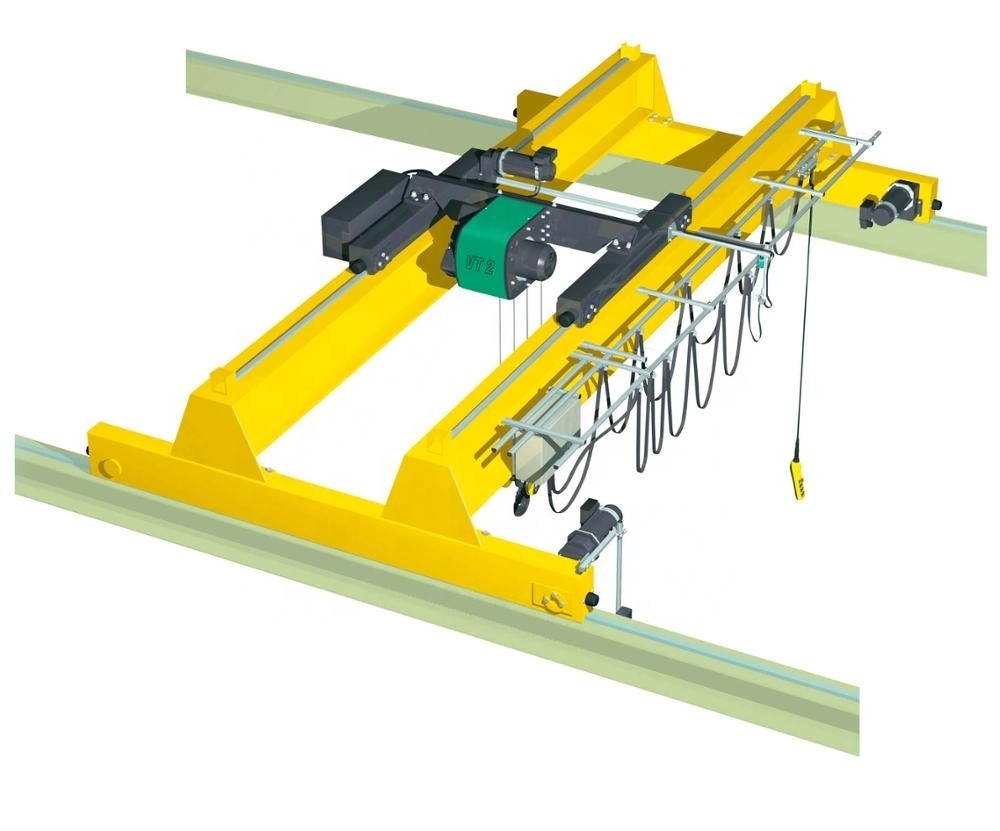

Double Girder Crane 50 ton with Trolley or Electric Winch Double Beam Workshop Electric Bridge Crane
|
Product Description |
| Steel Construction Design |
Main Beam Structure:
1.Main beam uses bias-rail box -type structure,with optimized design and light self-weight.
2. Stell plate material Q235-B/
3.The cover and web of main beam should get surface rust removal by roller-way conveyor blasting machine before welding,this blasting machine can perform blanking,sandblasting,painting and drying,after that they get to Level.
4. Butt welds of tensile flange plate should get ultrasonic inspection by rules.
End Beams:
1. Material of end beam uses Q235-B.
2. End beam is made of rectangular steel-pope or steel plate by welding, the finished end beam get once positioning processed on numeral control machine in order to ensure dimension accuracy and fit tolerance.
3. Each end beam is supplied with wheels with double-wheel rim, buffer and anti-derailing protection device.
Trolley travelling rail:
1. The rail type ischanged according to the loading capacity.
2.The rail welding on the main beam.
| Electric Hoist Traveling Mechanism |
| Electric & Safety Protection Function |
| Single Beam Overhead Crane |
| Double Beam Overhead Crane |
| European Overhead Crane |
| Packaging & Shipping |
| After-Sales Service |
1. 14 months warranty when products leave the factory, or 12 months warranty, after installation and commissioning in addition to the human damage factors.
2. 2 years spare-parts provided for better maintenance.
3. Professional technical staffs provide installation, commissioning and training services.
4. Delivery with English user manual, parts manual, product ce rtification and
other relevant certificates.
5. Technical advisory for any time.
| FAQ |
• Load capacity: (2t, 5t, 10t, 16t, 20t, .....)
• Lifting height: (2m, 3m, 4m, 5m, 8m.......)
• Span? (18m, 22m, 26m, 31.5m..........)
• Working voltage: ( 3-Phase 380V 50HZ, 3-Phase 440V 50HZ,......)
|
C ertifications |
