Quick Details
-
Brand Name:
-
IDEALPLUSING
-
Model Number:
-
1000W
-
Output Frequency:
-
/
-
Output Current:
-
base on model
-
Band:
-
IDEALPLUSING
-
Name:
-
20v switching power supply
-
Warranty:
-
1 Year
-
Certification:
-
CE ROHS
-
Size:
-
241*125*65(MM)
-
Efficiency:
-
>87%
-
Application:
-
electric power DC screen system/LED
-
Protections:
-
Over voltage and over current protection
-
Color:
-
Gray
-
Customize:
-
0~10000VDC, 0~5000A
Quick Details
-
Input Voltage:
-
220vac/110vac
-
Output Voltage:
-
base on model
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
IDEALPLUSING
-
Model Number:
-
1000W
-
Output Frequency:
-
/
-
Output Current:
-
base on model
-
Band:
-
IDEALPLUSING
-
Name:
-
20v switching power supply
-
Warranty:
-
1 Year
-
Certification:
-
CE ROHS
-
Size:
-
241*125*65(MM)
-
Efficiency:
-
>87%
-
Application:
-
electric power DC screen system/LED
-
Protections:
-
Over voltage and over current protection
-
Color:
-
Gray
-
Customize:
-
0~10000VDC, 0~5000A

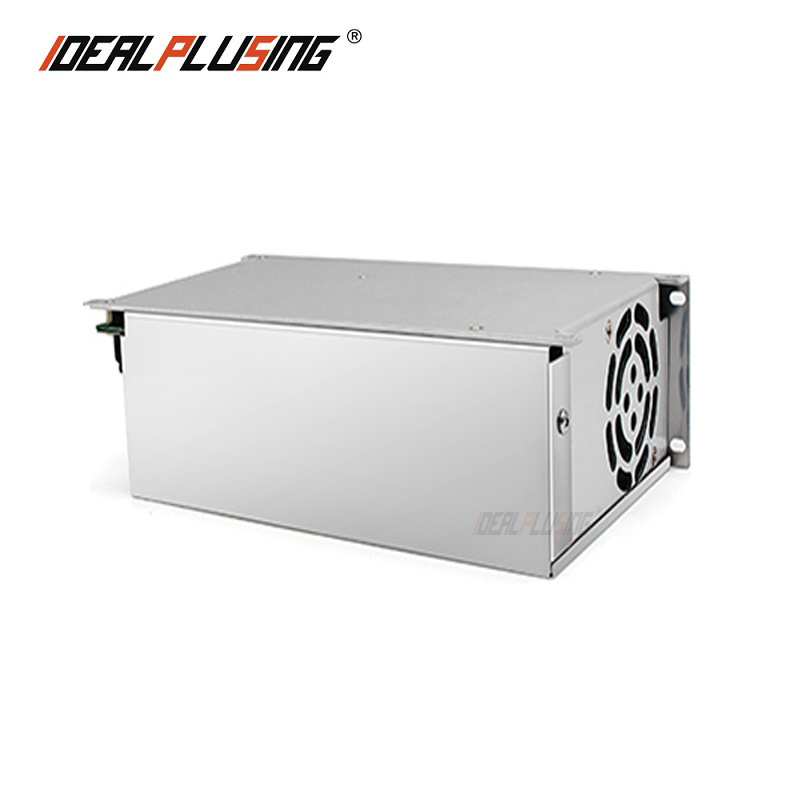

AC 110V 220V to DC 20v 50a 48v 21a led power 1000w single output switching power supply
|
Hot selling (Step Down DC/DC Converter) |
|||
|
NO |
DC Input Range to DC Output |
NO |
DC Input Range to DC Output |
|
#1 |
#7 |
||
|
#2 |
#8 |
||
|
#3 |
#9 |
||
|
#4 |
#10 |
||
|
#5 |
#11 |
||
|
#6 |
#12 |
||
I . FEATURES
|
1 |
AC 110V 220V to DC 20v 50a 48v 21a led power 1000w single output swtiching power supply |
|
2 |
Adjustable with Compact size, light weight |
|
3 |
Wide range AC Input , AC input 110V/220Vac input selected by switch |
|
4 |
100% full load burn-in test |
|
5 |
Protection: Short circuit / Over load / Over voltage |
|
6 |
Fixed switching frequency at 25KHz |
|
7 |
1-year warranty |
|
8 |
High efficiency, reliability quality, competitive cost |
|
9 |
0-5Vdc / 0-10Vdc External control output (Optional) |
|
10 |
Extra adjustable potentiometer (Optional) |
|
11 |
Output voltage is adjustable, output current be fixed |
II
. COMMON SPECIFICATION
|
Adjustable range for dc voltage |
The output voltage is 100% adjustable through the potentiometer |
|
AC input voltage range |
AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch |
|
Input current |
115V/10.57A | 230V/5.28A |
|
leakage current |
≤1.5mA 230V AC |
|
Overload protection |
Load more than 110%~120% and switch to the constant current mode |
|
Over-voltage protection |
≥15% of output voltage |
|
Setup rise hold time |
200ms 100ms 20ms |
|
Vibration |
10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes |
|
Withstand voltage |
Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC |
|
working temperature |
-10℃-65℃, 20%-90%RH |
|
Storage temperature |
-10℃--65℃, 20%--95%RH |
|
Net weight |
1.6KG |
|
Dimension |
241L*125W*65H (MM) |
|
OTHERS |
|
|
Output voltage tolerance |
1% |
|
Wave and noise |
150mV P-P |
|
Efficiency |
87% |
III . MODEL INFORMATION
|
NO |
Model |
Output voltage |
Output Current |
Output Power |
Long Term power |
|
1 |
IPS-SP12-80 |
0~12VDC |
80A |
1000W |
800W |
|
2 |
IPS-SP24-42 |
0~24VDC |
42A |
1000W |
800W |
|
3 |
IPS-SP36-27 |
0~36VDC |
27A |
1000W |
800W |
|
4 |
IPS-SP48-21 |
0~48VDC |
21A |
1000W |
800W |
|
5 |
IPS-SP60-16.7 |
0~60VDC |
16.7A |
1000W |
800W |
|
6 |
IPS-SP110-9 |
0~110VDC |
9A |
1000W |
800W |
|
7 |
IPS-SP150-6.7 |
0~150VDC |
6.7A |
1000W |
800W |
|
8 |
IPS-SP200-5 |
0~200VDC |
5A |
1000W |
800W |
|
9 |
IPS-SP220-4.5 |
0~220VDC |
4.5A |
1000W |
800W |
|
10 |
IPS-SP250-4 |
0~250VDC |
4A |
1000W |
800W |
|
11 |
IPS-SP300-3.3 |
0~300VDC |
3.3A |
1000W |
800W |
|
12 |
IPS-SP400-2.5 |
0~400VDC |
2.5A |
1000W |
800W |
|
13 |
IPS-SP500-2 |
0~500VDC |
2A |
1000W |
800W |
|
14 |
IPS-SP600-1.7 |
0~600VDC |
1.7A |
1000W |
800W |
|
15 |
IPS-SP700-1.43 |
0~700VDC |
1.43A |
1000W |
800W |
|
16 |
IPS-SP800-1.25 |
0~800VDC |
1.25A |
1000W |
800W |
|
17 |
IPS-SP900-1.11 |
0~900VDC |
1.11A |
1000W |
800W |
|
18 |
IPS-SP1000-1 |
0~1000VDC |
1A |
1000W |
800W |
IV.DETAILS OF THE POWER SUPPLY
