Quick Details
-
Brand Name:
-
YaoSheng
-
Product name:
-
H71W CF8 DN50 PN25 Lifting Check Valve Non Return Valve
-
Body material:
-
Stainless steel
-
Connection:
-
Wafer
-
Standard:
-
GB, ANSI
-
Medium:
-
Nitric acid,water
-
Working pressure:
-
PN16/25/40
-
Working Temperature:
-
≤400℃
-
Seal Material:
-
Stainless steel
-
Warranty:
-
12 Months
-
Packing:
-
Plywood Case
Quick Details
-
Port Size:
-
DN6-DN100
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
DN6-DN100
-
Brand Name:
-
YaoSheng
-
Product name:
-
H71W CF8 DN50 PN25 Lifting Check Valve Non Return Valve
-
Body material:
-
Stainless steel
-
Connection:
-
Wafer
-
Standard:
-
GB, ANSI
-
Medium:
-
Nitric acid,water
-
Working pressure:
-
PN16/25/40
-
Working Temperature:
-
≤400℃
-
Seal Material:
-
Stainless steel
-
Warranty:
-
12 Months
-
Packing:
-
Plywood Case
Product Description

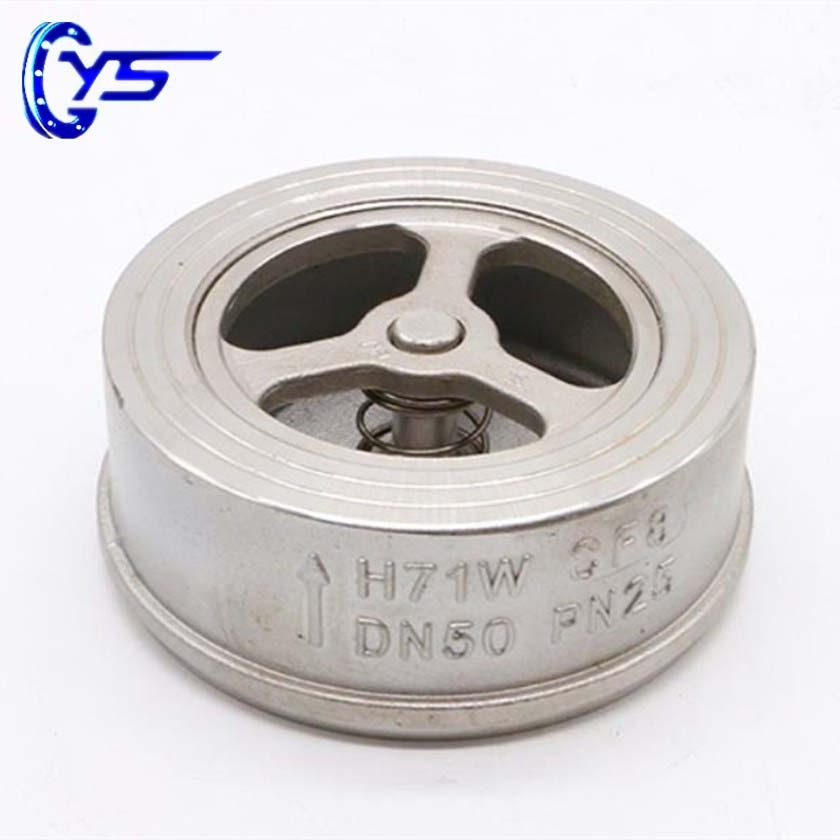

H71W type clamping lifting check valve produced by
Hebei Yaosheng Factory
adopt new all materials adopt corrosion-resistant stainless steel.Can be installed in any
position of the pipe road, to prevent the reverse flow of the medium, the boiler feed water system on the back, the connection is
the use of the original pipe both ends of the flange clamp can be put into operation.
|
Function and specification
|
|
|
|
|
|
|||||
|
Type
|
PN
(MPa)
|
Testing pressure (MPa)
|
|
Suitable temperature
(℃)
|
Suitable medium
|
|||||
|
|
|
Strength (water)
|
Enclose (water)
|
|
|
|||||
|
H71W-16P
|
1.6
|
2.4
|
1.76
|
≤200
|
Water,oil
|
|||||
|
H71W-25P
|
2.5
|
3.8
|
2.8
|
|
|
|||||
|
H71W-40P
|
4.0
|
6.0
|
4.4
|
|
|
|||||
Tips:
1. Short structure, suitable for more positions.
2. Simple installation and easy maintenance.
3. Materials can be replaced according to customer requirements.
2. Simple installation and easy maintenance.
3. Materials can be replaced according to customer requirements.
Product packaging
We usually use plastic bags and cartons to packing the valve .
Cartons usually are located on pallets
We also pack the valve by plywood cases
We also pack the valve by plywood cases
