Quick Details
-
Keyword:
-
6 Axes Industrial Robotic Arm
-
Product name:
-
Industrial Robot Arm
-
Robot type:
-
6 Axis Articulated Robot
-
Function:
-
Tig Welding
-
Payload:
-
165kg
-
Technology:
-
Robot Controller Technology
-
Model:
-
AIR170-2700
-
Number of axis:
-
6-Axis
-
Brand:
-
peitian
Quick Details
-
Place of Origin:
-
Beijing, China
-
Weight (KG):
-
1200 KG
-
Application:
-
Welding Robot Arm
-
Keyword:
-
6 Axes Industrial Robotic Arm
-
Product name:
-
Industrial Robot Arm
-
Robot type:
-
6 Axis Articulated Robot
-
Function:
-
Tig Welding
-
Payload:
-
165kg
-
Technology:
-
Robot Controller Technology
-
Model:
-
AIR170-2700
-
Number of axis:
-
6-Axis
-
Brand:
-
peitian

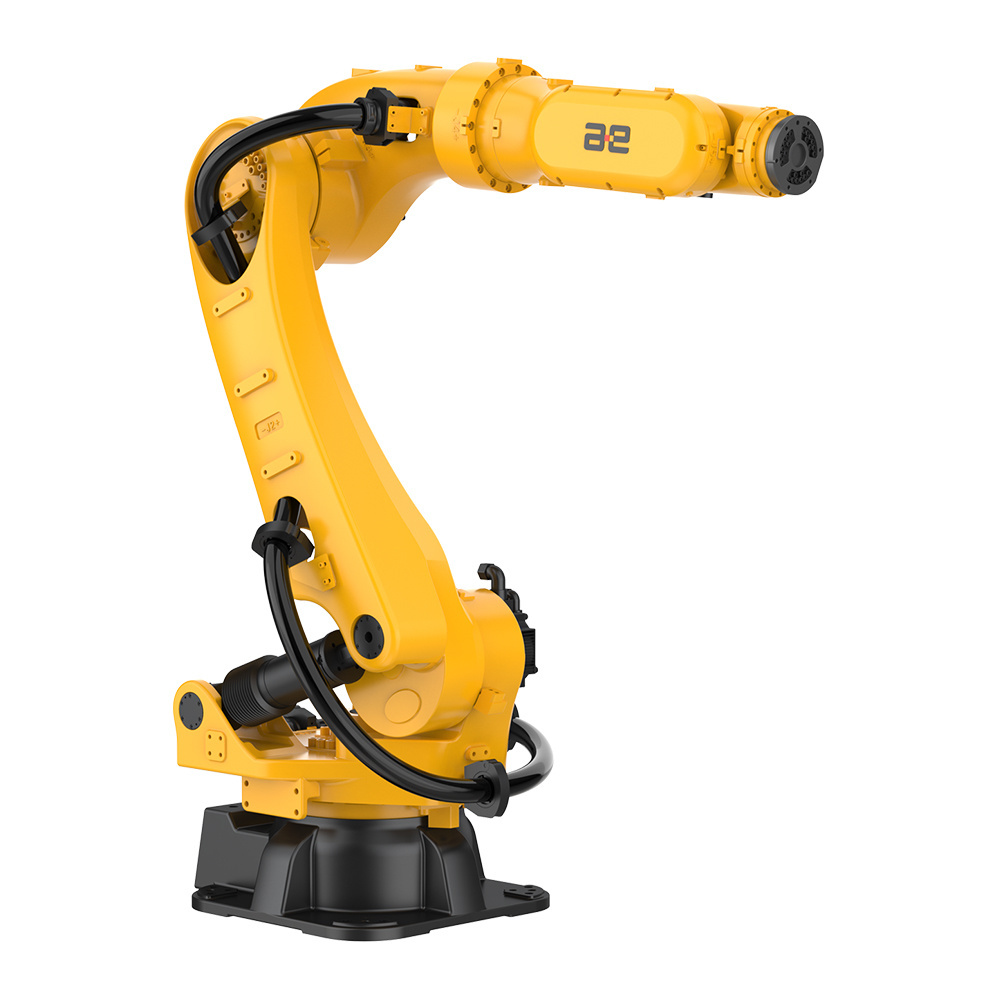

Product Description
Specification
|
型号 Type
|
|
AIR170-2700
|
|
|
轴数Axes
|
|
6
|
|
|
负载Load
|
|
170Kg
|
|
|
机器人本体
Manipulator |
重量Weight
|
1220Kg
|
|
|
|
最大运动范围Reach
|
2707mm
|
|
|
定位精度
Positioning accuracy |
位置重复定位精度
Position repeatability |
±0.06mm
|
|
|
IP 等级Ingress Protection
|
|
IP54（腕部 : IP65） IP54（Wrist : IP65）
|
|
|
安装方式Mounting
|
|
地装 Floor
|
|
|
运动范围 Working range |
轴 1 Axis 1 rotation
|
-180°/+180°
|
|
|
|
轴 2 Axis 2 arm
|
-60°/+85°
|
|
|
|
轴 3 Axis 3 arm
|
-110°/+170°
|
|
|
|
轴 4 Axis 4 wrist
|
-200°/+200°
|
|
|
|
轴 5 Axis 5 bend
|
-135°/+135°
|
|
|
|
轴 6 Axis 6 turn
|
-360°/+360°
|
|
|
运动速度 Rotation rate |
轴 1 Axis 1 rotation
|
120°/s
|
|
|
|
轴 2 Axis 2 arm
|
114°/s
|
|
|
|
轴 3 Axis 3 arm
|
125°/s
|
|
|
|
轴 4 Axis 4 wrist
|
175°/s
|
|
|
|
轴 5 Axis 5 bend
|
210°/s
|
|
|
|
轴 6 Axis 6 turn
|
300°/s
|
|
|
适用控制柜Controllers
|
|
ARC5-280
|
|
|
安装条件 Mounting conditions |
环境温度：0~45℃
Ambient temperature: 0~45℃ 湿度： 恒温下 95% 以内，无凝露。 Humidity: not more than 95% at constant temperature without condensation. 允许高度：操作机正常工作环境的海拔高度不应超过 1000 米（在 1000 米-4000 米高度范围内， 操作机应降额使用）。 Allowable altitude: not more than 1000m above sea level. 不应有腐蚀性、可燃性、易爆性气体。 No corrosive, flammable or explosive gases. |
|
|
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
