Quick Details
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
JUNHV
-
Model Number:
-
JH-706A
-
Warranty:
-
12 Months
-
Model:
-
JH-706A
-
Usage:
-
Changing Car Tires
-
Color:
-
Customer Request
-
Outside clamping:
-
10''--18''
-
Inside clamping:
-
13''--21''
-
Max wheel diameter:
-
940mm
-
Max. tire Width:
-
3''--13''
-
Working pressure:
-
8-10bar
-
Turntabel rotation:
-
7rpm
Quick Details
-
Motor Power:
-
0.75kw/1.1kw
-
Operating Pressure:
-
8-10bar
-
Power Supply:
-
110v/220v/380v
-
Place of Origin:
-
Liaoning, China
-
Brand Name:
-
JUNHV
-
Model Number:
-
JH-706A
-
Warranty:
-
12 Months
-
Model:
-
JH-706A
-
Usage:
-
Changing Car Tires
-
Color:
-
Customer Request
-
Outside clamping:
-
10''--18''
-
Inside clamping:
-
13''--21''
-
Max wheel diameter:
-
940mm
-
Max. tire Width:
-
3''--13''
-
Working pressure:
-
8-10bar
-
Turntabel rotation:
-
7rpm

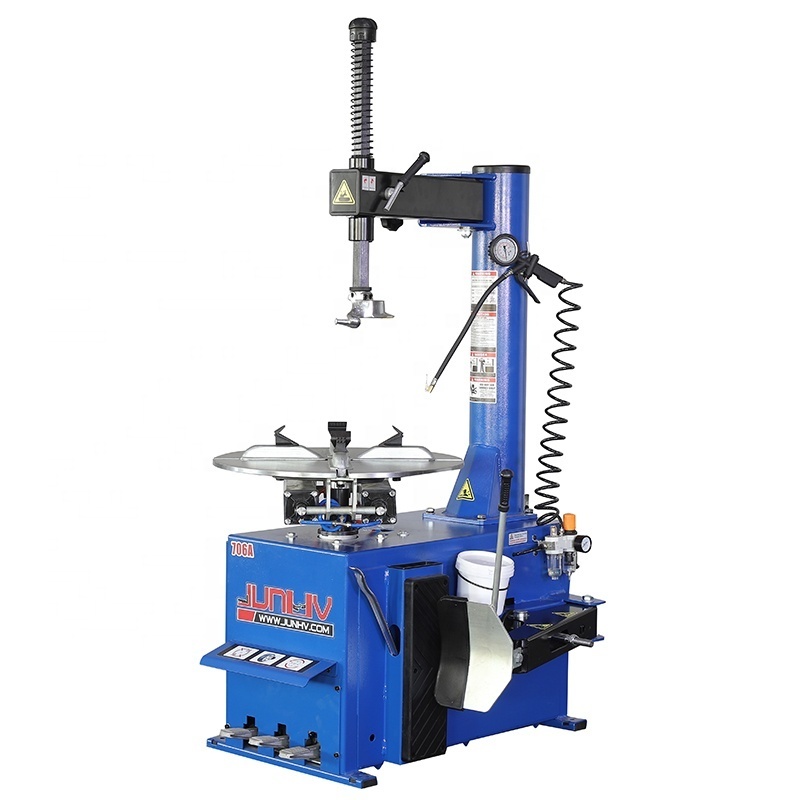

Wholesale Tyres Repair Equipment machine tire changers
Product Information:
| Rim clamp from outside: | 10"-18" |
| Rim clamp from inside: | 13"-21" |
| Max.wheel diameter: | 940mm |
| Max wheel width: | 3"-13" |
| Working air pressure: | 0.8-1.2Mpa |
| Motor: | 380v/220v/110v |
| Net weight/gross weight: | 165kg/178kg |
Specification :
Square shape column, Swing arms type, Rotate handwheel limit, saving space
1)Hexagon head bolt shaft control vertical lift, manual locking.
2)Rotary plate with 4 clamping with self-centered construction could make sure it hold, clip wheel reliably.
3)Two sets of clamping cylinder assembly support the action of hold and clip the wheel.
4)Dual role bead breaker shoe control cylinders to press the tire.
5)3 Alumina alloy foot pedals.
6)Electronic control rotary plate clockwise and counterclockwise rotation.
7)Rotary plate with clamping control foot petals in cylinder forward step by step. Its convenient and promptly to folder rims.
8)Standard water-oil separator with pressure watch.
Q1 What's the delivery term for making business with us?
Usually we send the shipments in FOB term. However, the terms of CIF and C&F are acceptable which depend of clients
Q2 What's the delivery time after placing the order?
Usually it takes 3 weeks after receiving your receipt payment. However, it would depend on our production line schedule(the timing clients place order) and the complication of the item.
Q3 What's the payment?
By T/T, 50% is paid in advance; balance before delivery
Q4 What's the min order?
1 set
Q5
What's the warranty?
1years for free
