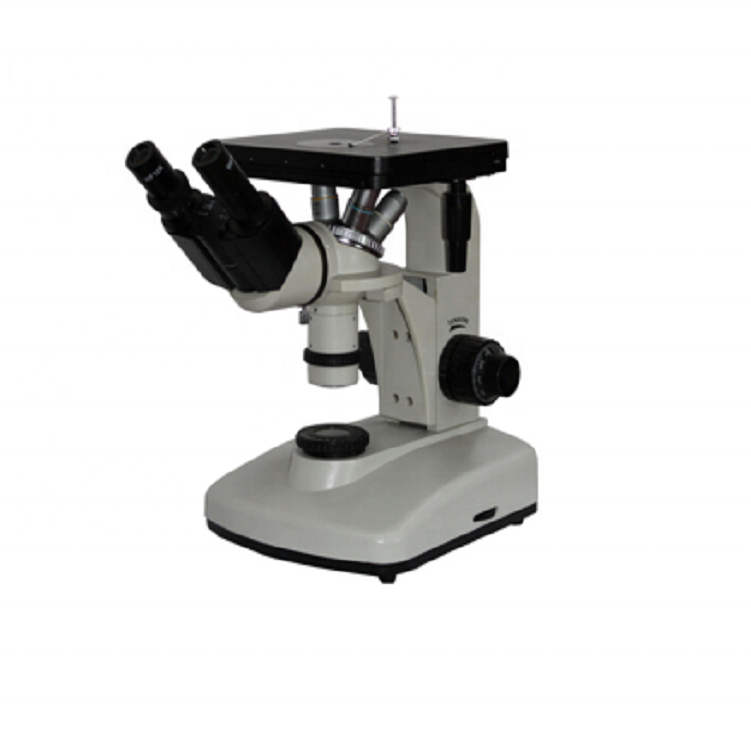

4XB Inverted BINOCULAR Metallurgical Microscope
4XB Inverted BINOCULAR Metallurgical Microscope
4XB Inverted BINOCULAR Metallurgical Microscope
4XB Inverted BINOCULAR Metallurgical Microscope
4XB Inverted BINOCULAR Metallurgical Microscope
4XB Inverted BINOCULAR Metallurgical Microscope
4XB Inverted BINOCULAR Metallurgical Microscope
4XB Inverted BINOCULAR Metallurgical Microscope

4XB Inverted BINOCULAR Metallurgical Microscope

FOB Reference Price: Get Latest Price
≥1 Pieces
US $920
≥6 Pieces
US $760
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Brand Name:
DECCA
Model Number:
DC-4XB
Observation tuble:
Binocular tube, tilted at 45°.
Eyepiece:
10X, 12.5X Wide Field
magnification times:
10X 40X 100X (oil)
object stage size:
180*200mm
Stage:
Double-layer (size: 180mmX200mm, moving range: 50mmX70mm)
Focusing System:
Adjustment range: 25mm, scale grid value: 0.002mm
Color filter:
Yellow, green,blue
Lighting system:
6V/20W halogen lamp with adjustable brightness, AC 220V50 (Hz)
Weight:
9KG
Certification:
ISO9001

Quick Details

Warranty:
1 year
Theory:
Metallurgical Microscope
Drawtube:
BINOCULAR
Brand Name:
DECCA
Model Number:
DC-4XB
Observation tuble:
Binocular tube, tilted at 45°.
Eyepiece:
10X, 12.5X Wide Field
magnification times:
10X 40X 100X (oil)
object stage size:
180*200mm
Stage:
Double-layer (size: 180mmX200mm, moving range: 50mmX70mm)
Focusing System:
Adjustment range: 25mm, scale grid value: 0.002mm
Color filter:
Yellow, green,blue
Lighting system:
6V/20W halogen lamp with adjustable brightness, AC 220V50 (Hz)
Weight:
9KG
Certification:
ISO9001
Product Description
The 4XB binocular inverted metallographic microscope is used to identify and analyze the structure of various metals and alloy materials. It is suitable for microscopic observation of metallographic structure and surface morphology. It is an ideal instrument for metallography, mineralogy, and precision engineering research.
Details Images

Observation system

The support area of the instrument base is large, and the bending arm is firm, so that the center of gravity of the instrument is low and stable and reliable. Because the eyepiece and the support surface are inclined at 45°, the observation is comfortable.

Mechanical stage

Mechanical moving stage, built-in rotatable round stage plate. Two types of loading trays are included, with inner holes φ10mm and φ20mm.

Lighting system

Koller lighting system is adopted, with a variable light barrier, 6V20W halogen lamp is used for lighting, and the brightness is adjustable. AC 220V (50Hz).
Specification
model
DC-4XB
Optical system
Finite distance optical system
Observation tube
Binocular tube, tilted at 45°.

object stage size

180*200mm
Eyepiece
Plan eyepiece WF10X(Φ18mm)
Plan eyepiece WF12.5X(Φ15mm)
Objective lens
Achromatic objective lens 10X/0.25/WD7.31mm
Half plan achromatic objective lens 40X/0.65/WD0.66mm
Achromatic objective lens 100X/1.25/WD0.37mm(oil)
Color filter
Yellow, green,blue
Lighting system
6V/20W halogen lamp with adjustable brightness, AC 220V50 (Hz)
Focusing mechanism
Adjustment range: 25mm, scale grid value: 0.002mm
Stage
Double-layer mechanical mobile type (size: 180mmX200mm, moving range: 50mmX70mm)
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
