Quick Details
-
Material:
-
Aluminum Alloy
-
Battery:
-
Lithium Battery 6AH*2PCS
-
Motor:
-
250WX2 DC 24V Brushless Motor
-
Certificate:
-
ISO9001,ISO13485,CE
-
Color:
-
Red, Blue, Pink, Black, Yellow,Silver
-
Max Speed:
-
6 km/h
-
Weight:
-
26.7 KG
-
Max Climbing:
-
12 °
-
Folding:
-
Available
-
Warranty:
-
3 year
Quick Details
-
Place of Origin:
-
Jiangsu, China
-
Brand Name:
-
JBH
-
Model Number:
-
KSN-D12
-
Material:
-
Aluminum Alloy
-
Battery:
-
Lithium Battery 6AH*2PCS
-
Motor:
-
250WX2 DC 24V Brushless Motor
-
Certificate:
-
ISO9001,ISO13485,CE
-
Color:
-
Red, Blue, Pink, Black, Yellow,Silver
-
Max Speed:
-
6 km/h
-
Weight:
-
26.7 KG
-
Max Climbing:
-
12 °
-
Folding:
-
Available
-
Warranty:
-
3 year
Products Description
|
Model
|

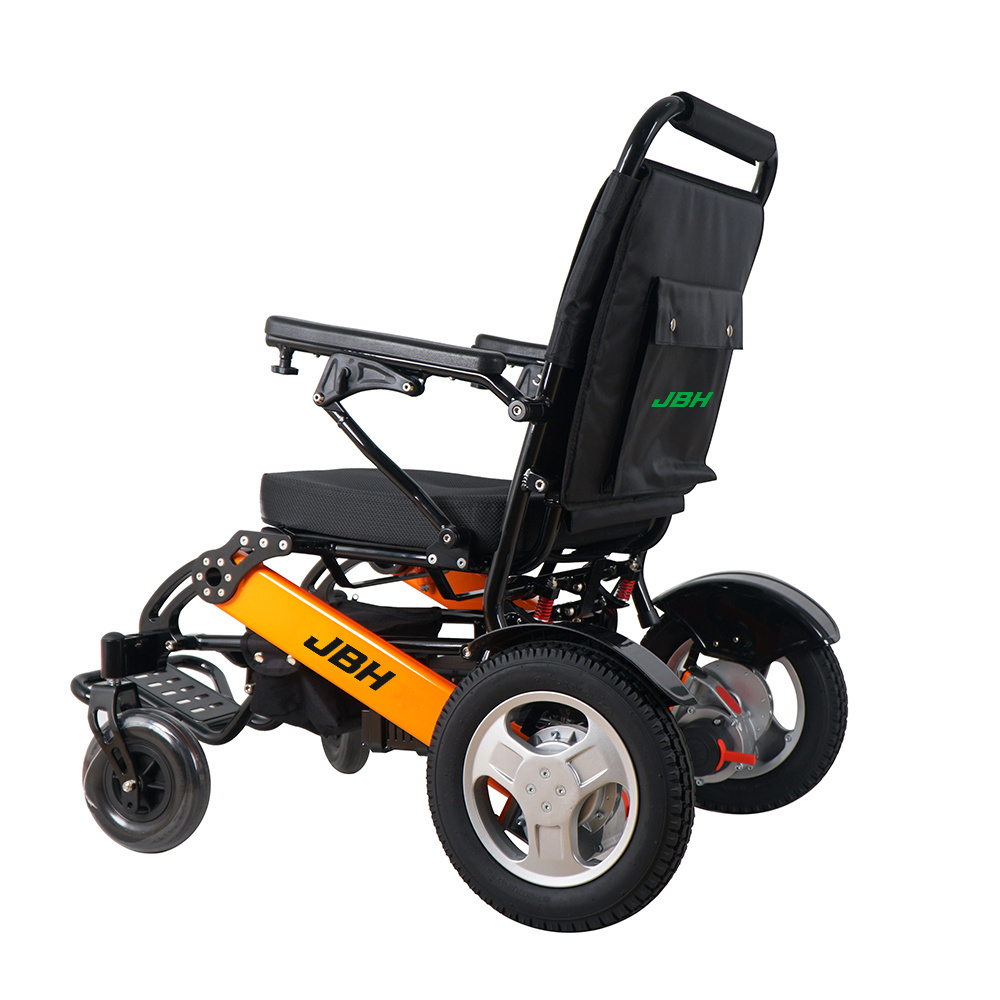

D12 Power Wheelchair
|
|
|
|
Overall Dimensions (L×W×H)
|
1020×670×935 mm
|
40.2'' × 26.4'' × 36.8''
|
|
|
Folded Dimensions (L×W×H)
|
670×370×760 mm
|
26.4'' × 14.6'' × 29.9'’
|
|
|
N. W (without battery)
|
26.7 KG
|
52 lbs
|
|
|
N. W (with battery)
|
29.5 KG
|
58 lbs
|
|
|
Seat Dimension (L×W)
|
430×430 mm
|
17‘' × 17''
|
|
|
Seat Height (from Ground)
|
500 mm
|
20''
|
|
|
Arm Rest Distance
|
480 mm
|
19''
|
|
|
Material
|
Aluminum Alloy
|
|
|
|
Max Weight Capacity
|
180 KG
|
396 lbs
|
|
|
Battery
|
Lithium-ion (24V 6Ah) × 2 pcs
|
|
|
|
Motor
|
250 Watt Brushless × 2 pcs
|
|
|
|
Controller
|
DC 24V 2A,100~220VAC,50~60Hz
|
|
|
|
Front Tire
|
8”× 1.75” PU solid
|
203 × 44 mm PU solid
|
|
|
Rear Tire
|
12” × 2.25” PU solid
|
305 × 57 mm PU solid
|
|
|
Driving Range
|
25 KM
|
15.5 miles
|
|
|
Maximum Speed
|
6 km/h
|
3.7 mph
|
|
|
Incline Capability
|
12 °
|
|
|
|
Turning Radius
|
84 cm
|
33''
|
|
|
Obstacle Clearance
|
10 cm
|
3.9''
|
|
|
Charging Time
|
6 to 8 hours
|
|
|
|
Packing Carton (L×W×H)
|
750×450×880 mm
|
29.5'' × 17.7'' × 34.6''
|
|
|
G. W.
|
36.5 KG
|
80 lbs
|
|
Advantages:
Lightweight and Compact Design
Ultra-light aluminum alloy material made, which can be folded into a small size easily without detaching or removing any parts.
Outstanding Driving Range
Powered by high performance Lithium-ion batteries and travel range could reach 20km/12.4miles on a single fully charged (varies by model)
Safety and Security
Brushless motors not only bring the wheelchair super power, but also give a safe intelligent braking system.
Easy to Operate
Right out of the box our electric wheelchairs are designed for easy set-up and easy usability.
Designed for Airplane Travel
Our electric wheelchairs are approved for airplane travel by the IATA and various other travel authorities.
Perfect Power
Hard PU tires with two high-power burshless motors to ensure you can travel over bumps and cracks, up hills, and on all terrains.
