Quick Details
-
Conveyor Load:
-
200 kg
-
Conveyor speed:
-
0.22 m/s
-
Penetration:
-
32~34 mm steel
-
Resolution:
-
38 AWG
-
Film safety:
-
Guarantee ISO 1600 Film
-
X-ray leakage:
-
<0.1 mR/h (1.0 μSv/h)
-
Anode voltage:
-
140 kV
-
Beam direction:
-
80°
-
Monitor:
-
21.5" LCD
Quick Details
-
Place of Origin:
-
China
-
Brand Name:
-
Karsun
-
Tunnel Size:
-
1005 x 1000 mm
-
Conveyor Load:
-
200 kg
-
Conveyor speed:
-
0.22 m/s
-
Penetration:
-
32~34 mm steel
-
Resolution:
-
38 AWG
-
Film safety:
-
Guarantee ISO 1600 Film
-
X-ray leakage:
-
<0.1 mR/h (1.0 μSv/h)
-
Anode voltage:
-
140 kV
-
Beam direction:
-
80°
-
Monitor:
-
21.5" LCD
Product Description
Specification
|
Place of Origin
|
China
|
|
Brand Name
|
Karsun
|
|
Tunnel Size
|
1005 x 1000 mm
|
|
Conveyor Load
|
200 kg
|
|
Conveyor speed
|
0.22 m/s
|
|
Penetration
|
32~34 mm steel
|
|
Resolution
|
38 AWG
|
|
Film safety
|
Guarantee ISO 1600 Film
|
|
X-ray leakage
|
<0.1 mR/h (1.0 μSv/h)
|
|
Anode voltage
|
140 KV
|
|
Beam direction
|
80°
|
|
Monitor
|
21.5" LCD
|

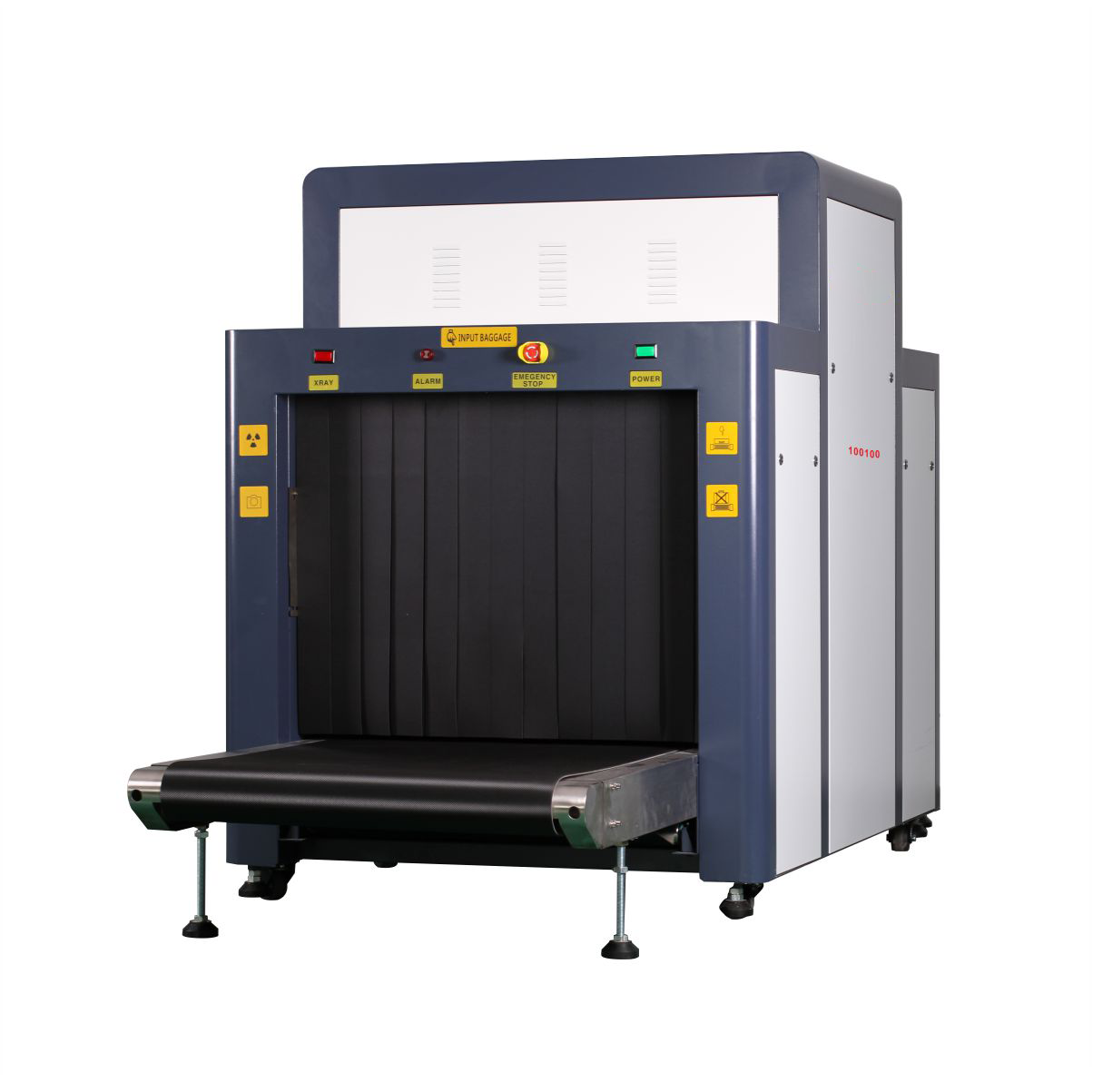

F100100C
is an advanced large size X-ray Inspection System with low conveyor height of 37cm(14.6”) and with tunnel opening of 100.5cm*100cm, ideal for using at public area for large-scale items, such as checkpoint, airport, subway station, railway station, customs, logistics company, port, warehouse, factory and more. F10010C is a great choice for
large venue and support bidirectional operation.
It is equipped with a 140 KV generator, known for high definition x-ray images to make it easy for operators to identify the potential threats quickly. Humanized standard configurations, including stainless steel landing at exit to make the heavy package sliding down to ground easily, and removable supervisor monitor platform, protects LCD monitor
and provides more convenient working environment for operator.
large venue and support bidirectional operation.
It is equipped with a 140 KV generator, known for high definition x-ray images to make it easy for operators to identify the potential threats quickly. Humanized standard configurations, including stainless steel landing at exit to make the heavy package sliding down to ground easily, and removable supervisor monitor platform, protects LCD monitor
and provides more convenient working environment for operator.
█ STANDARD FEATURES
* Bidirectional Scanning
* Recall Historical Image
* Query & Backup & Mark Image
* Print Image
* Baggage Counter
* Day/Time Display
* Multi-language Operation
* Auto Image Archiving
* Storage Type:PNG, JPEG, BMP
* Real-time Self-diagnostics
* Real-time Image Manipulation
* Different Access Level Account
* Network Ready
* Secure Access Key
* Emergence Stop Button
* 0.7 m Tunnel Extension Landing Platform
* Supervisor Single Monitor Platform
* UPS-Uninterrupted Power Supply(Optional)
* Bidirectional Scanning
* Recall Historical Image
* Query & Backup & Mark Image
* Print Image
* Baggage Counter
* Day/Time Display
* Multi-language Operation
* Auto Image Archiving
* Storage Type:PNG, JPEG, BMP
* Real-time Self-diagnostics
* Real-time Image Manipulation
* Different Access Level Account
* Network Ready
* Secure Access Key
* Emergence Stop Button
* 0.7 m Tunnel Extension Landing Platform
* Supervisor Single Monitor Platform
* UPS-Uninterrupted Power Supply(Optional)
█ 24 STANDARD IMAGING PROCESSING TOOLS
* Multi-energy Imaging (4 color)
* Inverse Mode
* Gray
* Variable Gamma
* Organics & Inorganic & Mixture Striping
* Plus 6 kinds Pseudo Color Display
* Variable High & Low Penetration
* Log & Exp Trans
* Gaussian Blur& Sharpen
* Super &Partial Enhancement
* High & Low & Fusion Energy
* Density Threshold Alarm(DTA)
* Continuous Zoom(64X)
* Continuous Scan(C-scan)
* Zeff-scan(Z-scan)
* AI Roller(optional)
* Reset Image
* Calibration
* Multi-energy Imaging (4 color)
* Inverse Mode
* Gray
* Variable Gamma
* Organics & Inorganic & Mixture Striping
* Plus 6 kinds Pseudo Color Display
* Variable High & Low Penetration
* Log & Exp Trans
* Gaussian Blur& Sharpen
* Super &Partial Enhancement
* High & Low & Fusion Energy
* Density Threshold Alarm(DTA)
* Continuous Zoom(64X)
* Continuous Scan(C-scan)
* Zeff-scan(Z-scan)
* AI Roller(optional)
* Reset Image
* Calibration
