Quick Details
-
Blade Length (mm):
-
2600 mm
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
raymax
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
3100 KG
-
Place of Origin:
-
Anhui, China
-
Marketing Type:
-
Other
-
Color:
-
Accepted Customized
-
Cutting thickness:
-
8mm
-
After-sales Service Provided:
-
Engineers
-
BLADE:
-
6CrW2Si
-
Certification:
-
CE ISO
-
Maximum shearing width:
-
2500mm
Quick Details
-
Max. Cutting Width (mm):
-
2500
-
Max. Cutting Thickness (mm):
-
4 mm
-
Shearing Angle:
-
1.5
-
Blade Length (mm):
-
2600 mm
-
Throat Depth (mm):
-
100 mm
-
Brand Name:
-
raymax
-
Power (kW):
-
7.5 kW
-
Weight (KG):
-
3100 KG
-
Place of Origin:
-
Anhui, China
-
Marketing Type:
-
Other
-
Color:
-
Accepted Customized
-
Cutting thickness:
-
8mm
-
After-sales Service Provided:
-
Engineers
-
BLADE:
-
6CrW2Si
-
Certification:
-
CE ISO
-
Maximum shearing width:
-
2500mm
Feature
1.Totally EU streamlined design, Monoblock by welding robots & aparatus and stress relief process by Annealing treatment.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth,Germany.

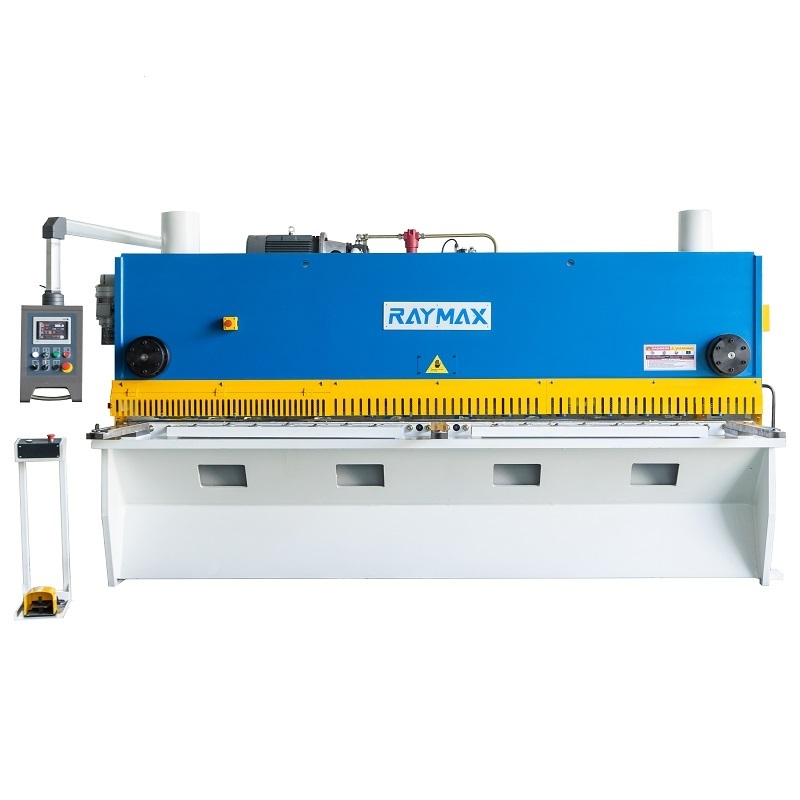

3.The Raymax Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21s with Delta inverter.
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety to CE regulation.
2.Adopt integrated hydraulic system, more reliable and easy for maintenance. and the hydraulic system from Bosch-Rexroth,Germany.
3.The Raymax Hydraulic Guillotine is a Swing Beam Action machine which is produced in a variety of cutting lengths and capacity options.
4.The distance of the backgauge is adjusted by the motor and is well adjustment is displayed by E21s with Delta inverter.
5.Equipped with lighting-alignment, so as to align when shearing. The stroke of knife beam can be adjusted in stepless mode.
6.Safe fence and the electric interlocker have been designed for the machine to ensure the operation safety to CE regulation.
|
Model
|
Cutting thickness (mm)
|
Cutting length (mm)
|
Cutting Angel (°)
|
Stopper Adjust Range (mm)
|
Stroke time (min-1)
|
Motor (KW)
|
Dimension(mm)
|
Weight (t)
|
|
QC12Y-4X2500
|
4
|
2500
|
1.5
|
500
|
18
|
7.5
|
2900x1500x1580
|
3.1
|
|
QC12Y-4X3200
|
4
|
3200
|
1.5
|
500
|
14
|
7.5
|
3580x1500x1580
|
5.2
|
|
QC12Y-4X4000
|
4
|
4000
|
1.5
|
500
|
12
|
7.5
|
4480x1500x1580
|
6.7
|
|
QC12Y-6X2500
|
6
|
2500
|
1.5
|
500
|
18
|
7.5
|
2990x1650x1620
|
4.6
|
|
QC12Y-6X3200
|
6
|
3200
|
1.5
|
500
|
14
|
7.5
|
3690x1650x1620
|
5.9
|
|
QC12Y-6X4000
|
6
|
4000
|
1.5
|
500
|
12
|
7.5
|
4480x1850x1700
|
7.7
|
|
QC12Y-6X6000
|
6
|
6000
|
1.5
|
500
|
12
|
11
|
6480x2000x2000
|
15.0
|
|
QC12Y-8X2500
|
8
|
2500
|
1.5
|
500
|
18
|
11
|
2990x1700x1700
|
5.0
|
|
QC12Y-8X3200
|
8
|
3200
|
1.5
|
500
|
14
|
11
|
3690x1700x1700
|
6.0
|
|
QC12Y-8X4000
|
8
|
4000
|
1.5
|
500
|
12
|
11
|
4480x1850x1700
|
8.0
|
|
QC12Y-8X6000
|
8
|
6000
|
1.5
|
500
|
12
|
15
|
6480x2000x2000
|
17.0
|
|
QC12Y-10X2500
|
10
|
2500
|
2
|
500
|
14
|
15
|
2990x1700x1700
|
8.3
|
|
QC12Y-10X3200
|
10
|
3200
|
2
|
500
|
14
|
15
|
3690x1700x1700
|
10.2
|
|
QC12Y-10X4000
|
10
|
4000
|
2
|
500
|
12
|
18.5
|
4480x1850x1750
|
11.5
|
|
QC12Y-10X6000
|
10
|
6000
|
2
|
500
|
4
|
18.5
|
6450x2450x2350
|
19.0
|
|
QC12Y-12X2500
|
12
|
2500
|
2
|
500
|
7
|
18.5
|
3050x2100x2000
|
9.3
|
|
QC12Y-12X3200
|
12
|
3200
|
2
|
500
|
7
|
18.5
|
3495x2100x2000
|
11.2
|
|
QC12Y-12X4000
|
12
|
4000
|
2
|
500
|
6
|
18.5
|
4450x2150x2000
|
11.0
|
|
QC12Y-12X6000
|
12
|
6000
|
2.3
|
500
|
4
|
18.5
|
6450X2350X2650
|
23.0
|
|
QC12Y-16X2500
|
16
|
2500
|
2.3
|
500
|
8
|
18.5
|
3145X2127X2135
|
10.4
|
|
QC12Y-16X3200
|
16
|
3200
|
2.3
|
500
|
7
|
18.5
|
3600X2127X2135
|
12.0
|
|
QC12Y-16X4000
|
16
|
4000
|
2.3
|
500
|
6
|
18.5
|
4350X2200X2150
|
15.5
|
|
QC12Y-16X6000
|
16
|
6000
|
3
|
500
|
3~4
|
30
|
6350X2400X2750
|
27.0
|
|
QC12Y-20X3200
|
20
|
3200
|
3
|
500
|
3~4
|
30
|
4080X2450X2500
|
15.3
|
|
QC12Y-20X4000
|
20
|
4000
|
3
|
500
|
3~4
|
30
|
4350X2450X2500
|
18.5
|
|
QC12Y-20X6000
|
20
|
6000
|
3
|
500
|
3~4
|
37
|
6350X2500X2900
|
30.0
|
