- Product Details
- {{item.text}}
Quick Details
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
2400
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
Map Power
-
Place of Origin:
-
Shandong, China
-
Cylinders:
-
1
-
Forward Shift Number:
-
3
-
Dimensions (L x W x H) (mm):
-
3200*1450*1500mm
-
Cargo Tank Dimension:
-
1800X1700
-
Model:
-
Garden mini dumperZY100
-
Drive:
-
4X4 wheel
-
Bucket capacity:
-
1.5m3
-
Port:
-
Qingdao
-
Packaging details:
-
4 units in 1 40'HQ container
-
Payment terms:
-
T/T L/C
-
Product name:
-
Dumper Truck
-
Driving type:
-
4*4 Left Hand Driving
-
Front axle:
-
ISUZU
Quick Details
-
Condition:
-
New
-
Horsepower:
-
12HP
-
Emission Standard:
-
Euro 1
-
Market Segement:
-
Engineering transportation
-
Engine Capacity:
-
4 - 6L
-
Gross Vehicle Weight:
-
2400
-
Drive Wheel:
-
4x4
-
After-sales Service Provided:
-
Video technical support, Online support, Free spare parts
-
Brand Name:
-
Map Power
-
Place of Origin:
-
Shandong, China
-
Cylinders:
-
1
-
Forward Shift Number:
-
3
-
Dimensions (L x W x H) (mm):
-
3200*1450*1500mm
-
Cargo Tank Dimension:
-
1800X1700
-
Model:
-
Garden mini dumperZY100
-
Drive:
-
4X4 wheel
-
Bucket capacity:
-
1.5m3
-
Port:
-
Qingdao
-
Packaging details:
-
4 units in 1 40'HQ container
-
Payment terms:
-
T/T L/C
-
Product name:
-
Dumper Truck
-
Driving type:
-
4*4 Left Hand Driving
-
Front axle:
-
ISUZU
Product Description

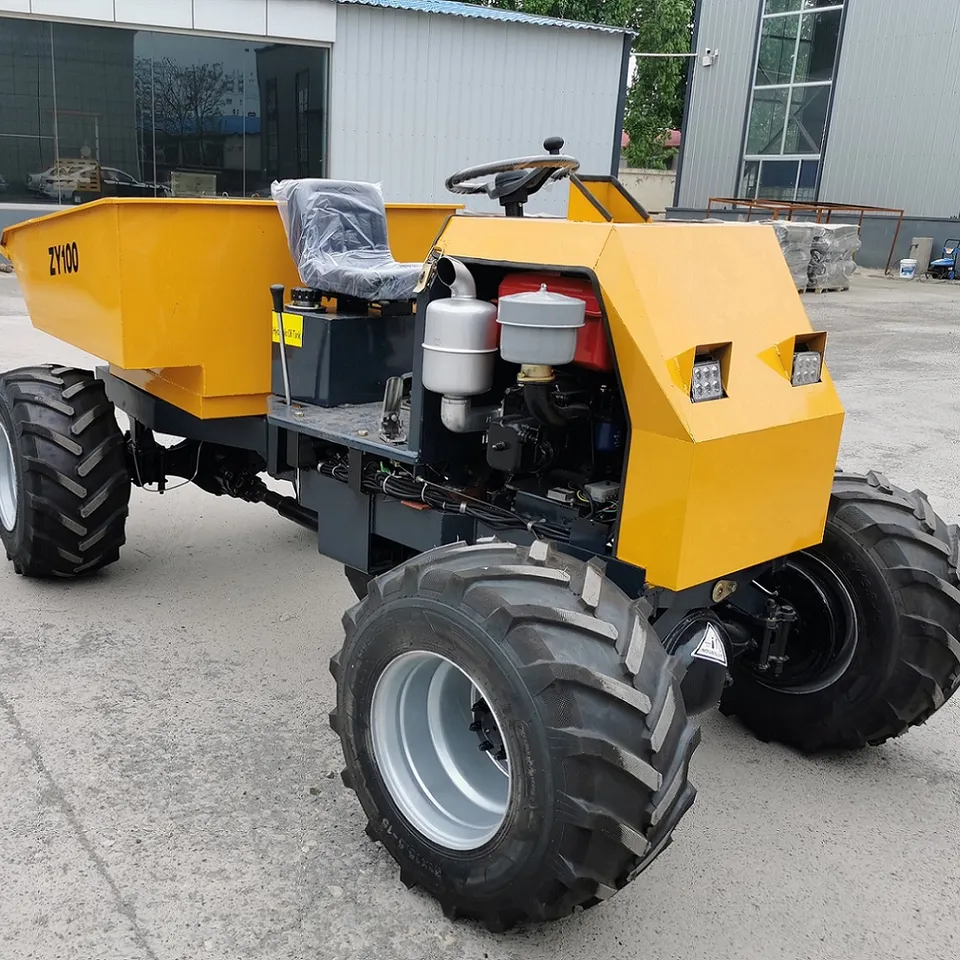

ZY100 MINI DUMPER
Specification
Wildly used in short-distance transport of bulk material, such as the construction industry, the building site, battlefield,
protecting road section, the municipal engineering, underground mines and so on.
4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.
Easy operation, small turning radius can be used in a narrow site.
protecting road section, the municipal engineering, underground mines and so on.
4 *4 Drive, Hydraulic steering, can unload materials smoothly by strong hydraulic pressure unloading system.
Easy operation, small turning radius can be used in a narrow site.
|
Model
|
ZY100 mini dumper
|
|
|
Drive Model
|
4x4
|
|
|
Payload
|
1000KG
|
|
|
Length(mm)
|
3200
|
|
|
Width(mm)
|
1450
|
|
|
Height(mm)
|
1500
|
|
|
Wheel Base(mm)
|
2000
|
|
|
Wheel Tread
|
|
|
|
Front Wheel(mm)
|
1470
|
|
|
Rear Wheel(mm)
|
1470
|
|
|
Min Ground Clearance(mm)
|
≥268
|
|
|
Operating weight
|
1180
|
|
|
Engine
|
|
|
|
Model
|
CHANGCHAI L24
|
|
|
Type
|
Water cooler type. Single cylinders diesel engine
|
|
|
12 Hours Rated
|
24HP
|
|
|
Tyres
|
|
|
|
Front Wheel
|
825-16
|
|
|
Rear Wheel
|
825-16
|
|
|
Brake
|
Drum type 4 Wheel brake
|
|
|
Steering Gear
|
Hydraulic follow-up Service
|
|
|
Gear Box With
|
4 forward speeds and 2 reversed speed
|
|
|
Skip Capacity (m3)
|
1.0
|
|
|
Minimum Turning Radius (m)
|
4
|
|
|
Tipping System
|
Hydraulic Tipping hopper
|
|
|
Max, Grade Ability (%)
|
30
|
|
|
Electric Starting
|
Yes
|
|
|
Container Loading
|
|
|
|
20GP container can be loaded with
|
2Unit
|
|
|
40GP container can be loaded with
|
4Unit
|
|
Packing & Delivery
Delivery : within 20 workdays after receipt payment
Shipping : FOB qingdao China , CIF or CFR is available as well.
Shipping : FOB qingdao China , CIF or CFR is available as well.
