Quick Details
-
Model Number:
-
LY-SS10A
-
Max. Current:
-
50mA
-
Mechanical Life:
-
10000 cycles, 10000Cycles min
-

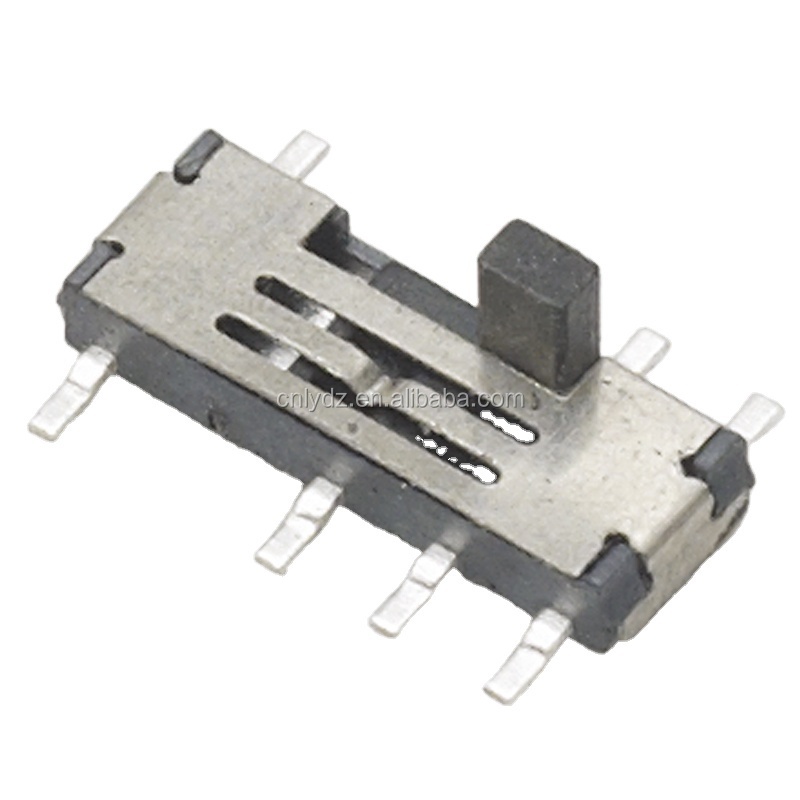

Slide Switch:
-
Slide switch for headphone,car,mp3,camera VCRs
-
Switch Function:
-
2 steps operating functions
-
Function:
-
3 positions
-
Rated Current:
-
50mA MAx
-
Rated Voltage:
-
12V DC
Quick Details
-
Max. Voltage:
-
12V DC
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
LEYE
-
Model Number:
-
LY-SS10A
-
Max. Current:
-
50mA
-
Mechanical Life:
-
10000 cycles, 10000Cycles min
-
Slide Switch:
-
Slide switch for headphone,car,mp3,camera VCRs
-
Switch Function:
-
2 steps operating functions
-
Function:
-
3 positions
-
Rated Current:
-
50mA MAx
-
Rated Voltage:
-
12V DC
|
Rated Current
|
50mA MAX
|
|
Rated Voltage
|
DC 12V
|
|
Contact Resistance
|
≤70mΩ
|
|
Insulation Resistance
|
≥100mΩ
|
|
Comressive Strength
|
AC250V 50Hz/1 min
|
|
Operating Force
|
200±50gf
|
|
Mechanical Life
|
10000 cycles min
|
|
Operaating Stroke
|
1.5±0.1mm
|
|
Temperature Range
|
-10℃~60℃
|
