Quick Details
-
Type:
-
vacuum glove box
-
application:
-
Lithium-ion batteries and materials/semiconductors
-
Feature:
-
Remove water and oxygen under vacuum
-
Max. Positive Pressure:
-
810 Torr (1.1 atm)
-
Max. Vacuum Level::
-
0.5 Torr
-
Leakage Glove Box Chamber:
-
< 6 Torr/hour
-
Gloves:
-
One pair of Latex Gloves
Quick Details
-
Brand Name:
-
TN
-
Model Number:
-
TN-GB-3
-
Place of Origin:
-
Henan, China
-
Type:
-
vacuum glove box
-
application:
-
Lithium-ion batteries and materials/semiconductors
-
Feature:
-
Remove water and oxygen under vacuum
-
Max. Positive Pressure:
-
810 Torr (1.1 atm)
-
Max. Vacuum Level::
-
0.5 Torr
-
Leakage Glove Box Chamber:
-
< 6 Torr/hour
-
Gloves:
-
One pair of Latex Gloves
Lab stainless steel glove box is used to remove moisture and oxygen under vacuum.

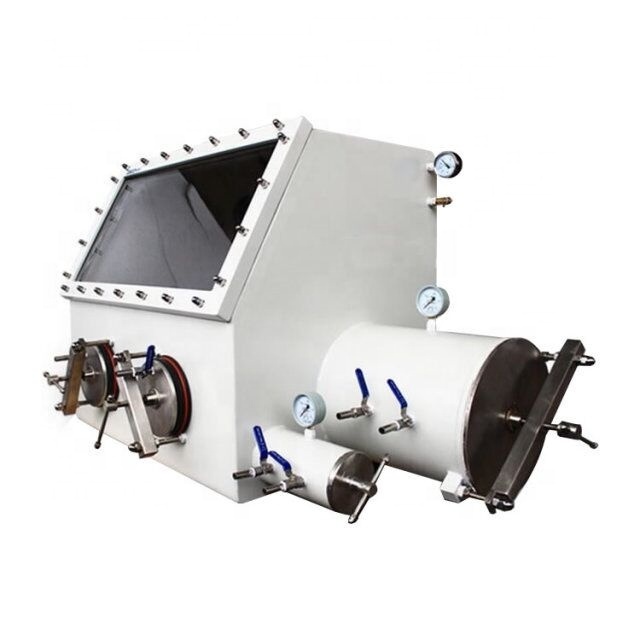

TN-GB-3 is a middle size heavy duty stainless steel glove box with Airlock Chamber, Gauges and vacuum Flanges, which allow glove box operate under vacuum to remove moisture and oxygen without expensive inert gas purging, It is an ideal tool for material and chemical researchers to process air sensitive materials and solutions. (Factory supplied, vacuum glove box material and configuration can be customized according to customer requirements.)
Specification
|
Glove Box Chamber |
Case Material: Made of 11 gauge (3mm thickness) 304 stainless steel sheet with support frame and plastic painting, which provide heavy duty structure for vacuum Dimensions: 780mm(L) x 700mm(W) x 650mm(H) Max. Positive Pressure: 810 Torr (1.1 atm) Note: Gloves cannot work if pressure is higher than 810 Torr Max. Vacuum Level: 0.5 Torr Note: Stainless Steel case may deform at higher vacuum level |
|
Airlock Chamber |
Dimensions: 240mm(ID) x 260mm(L) Max. Vacuum Level: 0.05 Torr |
|
Vacuum gauge and valves |
Two vacuum flanges are included for glove box to achieve vacuum to remove moisture and oxygen without expensive inert gas purging Do not operate under vacuum status. The vacuum process is used for purging the glove box chamber before an operation. Two KF-25 vacuum fitting ports with Quick Clamps are installed in the back for connecting vacuum pump, electric/fluid feed-through, gas circulating/purifying system, or other testing equipment |
|
Leakage Glove Box Chamber |
< 6 Torr/hour |
|
Power Extension |
One extension socket (Max power 1500W) is installed in the glove box main chamber. Note: 110V power cord was included for immediate use. (For use under 208~240V power supply, no plug will be included) |
|
Gloves |
One pair of Latex Gloves is included for immediate use Clamps and sealing flanges included Increased stretching, bending ability and tear strength High effectiveness when vaporized hydrogen peroxide (VHP) is present High resistance to aromatics, hydrocarbons, solvents, fats, and acids Resists ozone High static dissipative qualities |
|
Vacuum pump and fittings (Optional) |
Vacuum pump and fittings are not included. We may add a customized flange to connect a tube furnace to the glove box We may add ultrasonic mixer head on top of glove box upon request at extra cost. We may order the glovebox with drying system. |
|
Warranty |
One year limited warranty with lifetime support |
