Max tube：
Φ 25mm，
Φ 25mm，
Φ 33mm
- Product Details
- {{item.text}}
Quick Details
-
Model Number:
-
SR8300
-
Function:
-
cable cutting and stripping
-
Max. tube:
-
16mm
-
Cutting Length:
-
0.1-99999.9mm
-
Cutting error:
-
0.002*Length
-
Stripping length:
-
1-200mm, 1-80mm
-
Applicable cable:
-
4-30sqmm
-
Display:
-
7inch touch screen
-
Power:
-
700W, AC220V 50/60HZ
-
Dimensions:
-
700*600*500mm
Quick Details
-
Use:
-
cutting and stripping
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
Sinrad
-
Model Number:
-
SR8300
-
Function:
-
cable cutting and stripping
-
Max. tube:
-
16mm
-
Cutting Length:
-
0.1-99999.9mm
-
Cutting error:
-
0.002*Length
-
Stripping length:
-
1-200mm, 1-80mm
-
Applicable cable:
-
4-30sqmm
-
Display:
-
7inch touch screen
-
Power:
-
700W, AC220V 50/60HZ
-
Dimensions:
-
700*600*500mm
Product Description

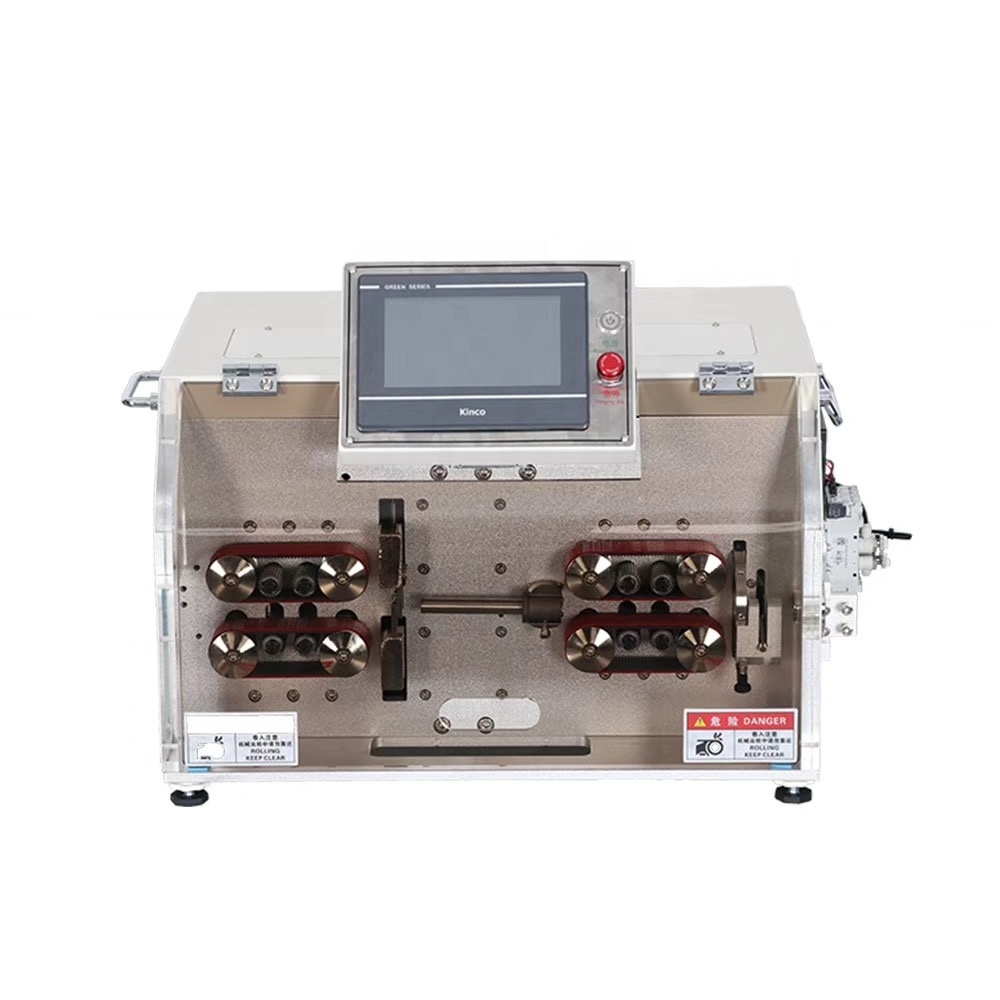

● Cutting and Stripping Machine Product
This machine is designed for cutting and stripping large cable and multi-core cable, full automatic, simple operation and high efficient.
|
SR-8300 cutting and stripping machine
|
|
|
|
Model
|
SR-8300
|
|
|
Display
|
7inch touch screen
|
|
|
Function
|
Automatically cutting and stripping outer jaket
|
|
|
Cable type
|
cable, PVC sheathed wire, multi-core sheathed wire, etc.
|
|
|
Applicable cable
|
4-30mm² (≤ 6 cores)
|
|
|
Cutting length
|
1mm-99999.99mm
|
|
|
Cutting error
|
0.002*Length
|
|
|
Stripping length
|
1-200mm, rear 1-80mm
|
|
|
Max. tube
|
Φ 16mm
|
|
● Features
(1)Blade: High-quality imported high-speed steel.
(2)Capacity: 2300pcs/h, depends on the wire length and size.
(3)Drive method: 16-wheel drive (silent hybrid stepper motor).
(4)Feeding: Belt-driven feed, no embossing and scratches on the cable.
(5)Special cables, special requirements can be customized.
● SR-8300 cutting and stripping machine application
●Other big cable machine
HW-8070,，8120，8150 cutting and stripping machine
Applicable cable: 10~70mm²，10~120mm²，
10~150mm²
HW-8300 cutting and stripping machine
Applicable cable: 30~300mm²
Max tube：
Φ 15~50mm
●
Wire cutting and wire stripping
→Different machine models are suitable for different wires
→Please send us a sample of the semi-finished or finished wire and we will supply or customize a suitable machine for you.
→All kind of wire cutting and stripping machine can be customized, just need to contact us
Packing & Delivery
All the machines are with safety packing. Small machines would be packed into a carton box.
Large machines would be wooden case package.
Large machines would be wooden case package.
