Quick Details
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shen Hai
-
Model Number:
-
BAF
-
Voltage:
-
220V, 380V
-
Alias 1:
-
Explosion Proof Exhaust Fan,Explosion Proof Axial Fan
-
Alias 2:
-
Explosion Proof Blower,Explosion Proof Ventilation Fan
-
Function:
-
Air Circulating Or Exhaust Ventilation
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Inlet Thread:
-
G3/4 Or Pressure Plate
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
Installation Method:
-
Wall Style,Post Style,Channel Style,Portable
-
Cable Outer Diameter:
-
10mm-14mm
-
Explosion Proof Sign:
-
Ex db IIC T4 Gb,Ex tb IIIC T135℃ Db
-
Corrosion Protection Level:
-
WF1*WF2
Quick Details
-
Applicable Industries:
-
Printing Shops, Construction works , Energy & Mining, Oil Refining, Chemical, Metallurgy, Marine Oil, Platform, Fire Fighting, Oil Tanker
-
Electric Current Type:
-
AC
-
Mounting:
-
FREE STANDING
-
After-sales Service Provided:
-
Online support
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Shen Hai
-
Model Number:
-
BAF
-
Voltage:
-
220V, 380V
-
Alias 1:
-
Explosion Proof Exhaust Fan,Explosion Proof Axial Fan
-
Alias 2:
-
Explosion Proof Blower,Explosion Proof Ventilation Fan
-
Function:
-
Air Circulating Or Exhaust Ventilation
-
Place Of Use:
-
Industry,Gas Station,Refinery,Spray Booth,Hazardous Locations
-
Inlet Thread:
-
G3/4 Or Pressure Plate
-
Applicable Scope:
-
Zone 1,Zone 2,Zone 21,Zone 22;IIA IIB IIC Explosive Gas Environments
-
Installation Method:
-
Wall Style,Post Style,Channel Style,Portable
-
Cable Outer Diameter:
-
10mm-14mm
-
Explosion Proof Sign:
-
Ex db IIC T4 Gb,Ex tb IIIC T135℃ Db
-
Corrosion Protection Level:
-
WF1*WF2
Product Parameters
|
Explosion proof sign
|
Degree of protection
|
Cable outer diameter
|
Inlet thread
|
|
Ex db IIC T4 Gb
Ex db IIB T4 Gb
Ex tb IIIC T135℃ Db
|
IP54
|
φ10-φ14
|
M26×1.5或G¾
|
|
Specification and model
|
Impeller diameter (mm)
|
Motor power (kW)
|
Rated voltage (V)
|
Rated voltage (V)
|
Rated speed (r/min)
|
Air volume (m3/h)
|
Default air outlet direction
|
Anti corrosion grade
|
|
|
|
|
|
three-phase
|
single-phase
|
|
|
|
|
|
|
BAF-200
|
200
|
0.09
|
380
|
220
|
2800
|
1230
|
Front end of impeller
|
WF1,WF2
|
|
|
|
|
0.06
|
|
|
1450
|
618
|
|
|
|
|
BAF-300
|
300
|
0.18
|
|
|
|
1440
|
|
|
|
|
BAF-400
|
400
|
0.25
|
|
|
|
2800
|
|
|
|
|
BAF-500
|
500
|
0.37
|
|
/
|
|
5700
|
|
|
|
|
BAF-600
|
600
|
0.55
|
|
|
|
8700
|
|
|
|

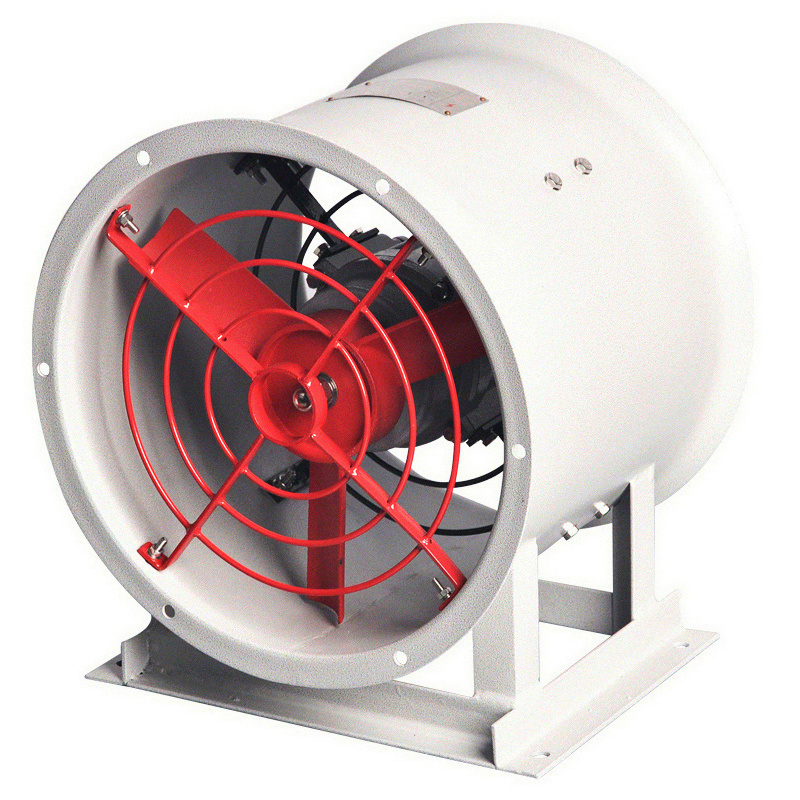

Product Description
1. This series of ventilators adopts the three dimensional flow theory of turbomachinery, and the test data is carefully designed to ensure the excellent aerodynamic performance of the ventilator, which is characterized by low noise, high efficiency, small vibration, low energy consumption, etc;
2. The ventilator is composed of explosion-proof motor, impeller, air duct, protective cover shutter, etc;
3. Steel pipe or cable wiring.
|
Machine No
|
L(mm)
|
D1(mm)
|
D2(mm)
|
|
200
|
310
|
210
|
250
|
|
300
|
310
|
310
|
355
|
|
400
|
330
|
410
|
465
|
|
500
|
320
|
510
|
565
|
|
600
|
370
|
610
|
665
|
1. It is applicable to the places in Zone 1 and Zone 2 of explosive gas environment;
2. It is applicable to the places in Zone 21 and 22 of combustible dust environment;
3. Suitable for IIA, IIB and IIC explosive gas environment;
4. Applicable to T1-T4 temperature group;
5. It is widely used in oil refining, chemical, textile, gas station and other dangerous environments, offshore oil platforms, oil tankers and other places;
6. Indoor and outdoor.
