Quick Details
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Huastlink
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
HC-M2A
-
Battery Capacity:
-
4000mAh
-
User:
-
16 Users
-
Bluetooth:
-
BT 5.1
-
System:
-
Android 11
-
Keywords:
-
Wifi6 5G Mifis
-
Supplier Type:
-
Source Manufacturer
-
Support:
-
OEM/ODM
Quick Details
-
Max. LAN Data Rate:
-
1300Mbps
-
With Modem Function:
-
NO
-
Wi-Fi Supported Frequency:
-
2.4G & 5G
-
2.4G Wi-Fi Transmission Rate:
-
300 Mbps
-
Type:
-
Wireless
-
Brand Name:
-
Huastlink
-
Place of Origin:
-
Guangdong, China
-
Product Name:
-
HC-M2A
-
Battery Capacity:
-
4000mAh
-
User:
-
16 Users
-
Bluetooth:
-
BT 5.1
-
System:
-
Android 11
-
Keywords:
-
Wifi6 5G Mifis
-
Supplier Type:
-
Source Manufacturer
-
Support:
-
OEM/ODM

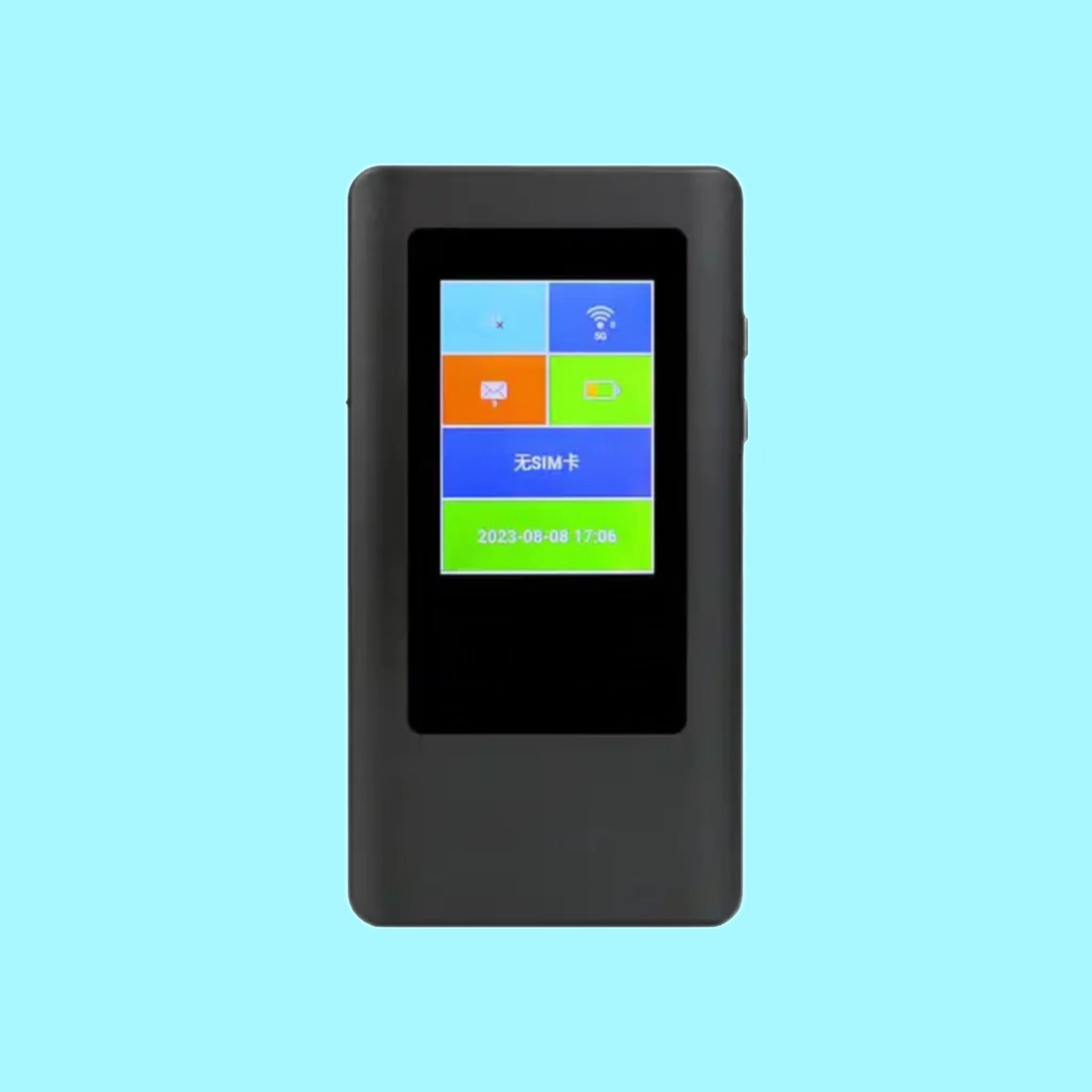

Mini 5G Router Type C Power Wifi 6 4G 5G Router With SIM Card Slot
Three versions of HC-M2A
EAU Version
5G NR: N1/N3/N5/N7*/N8/N20*/N28/N41/N77/N78 （N41/N77/N78 UL 2MIMO）
4G FDD: B1/B3/B5/B7*/B8/B20*/B28
4G TDD: B34/B38/B39/B40/B41
NA Version
5G NR:n2/n5/n12/n25/n66/n41/n48*/n71*/n77/n78
4G:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42*/B43*/B48*/B66/B71*
3G：B2/B4/B5
LAM Version
5G NR: N2/N5/N8/N28/N41/N66/N77/N78 （N41/N77/N78 UL 2MIMO）
4G FDD: B2/B5/B7/B8/B28/B66
4G TDD: B42/B43
Product Description
Product Parameter Datasheet
|
Product
|
|
5G MIFI
|
|
|
Highlights
|
|
MTK 5G 6nm MT6877, stable network performance，WiFi6, low power comsuption.
|
|
|
OS Version
|
|
Andriol 11
|
||
|
Platform
|
Chipset
|
MTK 900，MT6877，6nm
2*A78（2.4GHz）+6*A55（2.0GHz），GPU：Mali OTR MC4 |
||
|
|
Memory
|
LPDDR4X 2GB RAM+EMMC 32GB ROM
|
||
|
|
WiFi
|
MT6635
|
||
|
|
BT
|
Bluetooth 5.1,Optional
|
||
|
LCM
|
LCD
|
2.4''TFT MIPI（LCD or LED）
|
||
|
|
TP
|
Support
|
||
|
LED
|
LED
|
Red，Green，Blue
|
||
|
Cellular
|
Protocal
|
3GPP Rel.15，5G NR，SA/NSA，Sub 6G/LTE Category 18
|
||
|
|
Bands
|
5G NR:n2/n5/n12/n25/n66/n41/n48*/n71*/n77/n78
4G:B2/B4/B5/B7/B12/B13/B14/B17/B25/B26/B41/B42*/B43*/B48*/B66/B71* 3G：B2/B4/B5 |
||
|
|
Throughput
|
NR：Downlink/Uplink up to 2.77Gbps/1.25Gbps LTE：Downlink/Uplink up to 1.2Gbps/150Mbps WCDMA：Downlink/Uplink up to 42.2Mbps/11.5Mbps
|
||
|
|
Antenna
|
4*4 MIMO
|
||
|
WiFi
|
Bands
|
2.4G，5.8G，DBSC （2*2），DBDC（1*1）
|
||
|
|
Protocal
|
802.11 a/b/g/n/ac/ax
|
||
|
|
Throughput
|
802.11a：Up to 54Mbps
802.11b：Up to 11Mbps 802.11g：Up to 54Mbps 802.11n：Up to 300Mbps 802.11ac:Up to 866Mbps 802.11ax:Up to 1201Mbps |
||
|
|
Antenna
|
2*2
|
||
|
|
Users
|
16 users
|
||
|
Interface
|
SIM card
|
single SIM card，hot plugging supported
|
||
|
|
SIM card
|
NANO SIM card，eSIM optional
|
||
|
|
USB
|
TYPE-C（USB2.0）
|
||
|
Button
|
Button
|
1*Power，1*Reset
|
||
|
Charge
|
TYPE-C
|
5V/2A
|
||
|
Battery
|
Polymer battery
|
4400 mAh， could be customized.
|
||
|
Size
|
Size
|
125x70x17 mm （could be customized.）
|
||
|
Enviroment
|
Working Temperature
|
0℃-55℃
|
||
|
|
Storagy Temperature
|
-20℃-70℃
|
||
|
|
Humidity
|
5%-95%
|
||
|
annotation:[*]It can be supported, but it needs extra debugging or affects other frequency bands.
|
|
|
||
