Quick Details
-
Voltage:
-
No
-
Dimension(L*W*H):
-
4700*2100*2500mm
-
Weight:
-
4500kg
-
Working Pressure:
-
25bar
-
Air capacity:
-
33m3/min
-
Color:
-
Blue
-
Working pressure:
-
25Bar
-
Capacity:
-
33m3 /min (464cfm)
-
MOQ:
-
1 Set
-
Usage:
-
Drilling
-
Engine:
-
Cummins
-
Certification:
-
CE,ISO
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Kaishan
-
Model Number:
-
LGCY33-25
-
Voltage:
-
No
-
Dimension(L*W*H):
-
4700*2100*2500mm
-
Weight:
-
4500kg
-
Working Pressure:
-
25bar
-
Air capacity:
-
33m3/min
-
Color:
-
Blue
-
Working pressure:
-
25Bar
-
Capacity:
-
33m3 /min (464cfm)
-
MOQ:
-
1 Set
-
Usage:
-
Drilling
-
Engine:
-
Cummins
-
Certification:
-
CE,ISO
Products Description

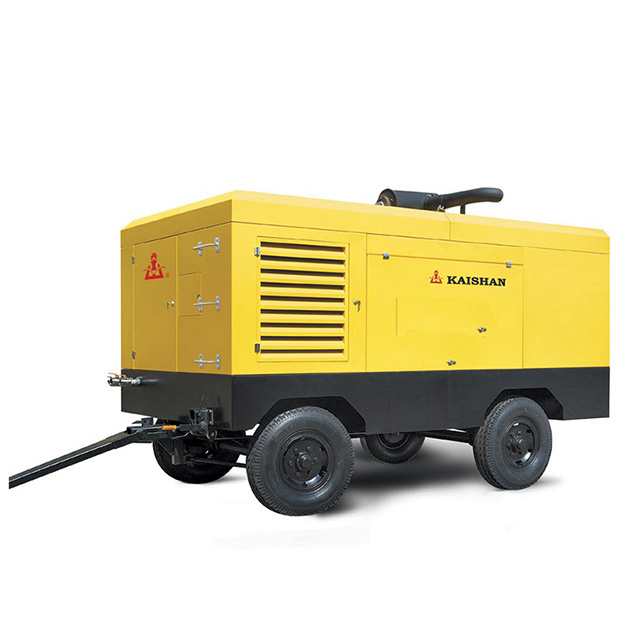

Kaishan portable screw type diesel air compressor rock drilling compressor is adopted with YUCHAI & Cummins & Deutz diesel engine Direct coupling screw airend SKF bearing match with SKY series airend Efficient economic regulating system Adjust the air consumption automatically to save energy Operation panel of portable diesel screw type air compressor rock drilling compressor is easy to operate and can start when you stir the igniting switch. 1-2 years warranty period for whole machine, 5 years for air end. Automatic protection system Excellent components, Germany oil filter and electronics for high performance Air filtration system with vacuum indication for dust environments.The portable screw type diesel rock drilling compressor is used to power pneumatic tool and machines such as pneumatic breaker, jack hammer, drilling machine, oil cleaning machine, sandblasting machine, drilling rig and so on. The performance of Kaishan brand portable rock drilling compressor is reliable, the variety is complete.
Products Details
Product Parameter
|
Model
|
CapacityM3/min
|
Max pressure
MPa
|
Diesel Engine
|
Weight
KG
|
Dimension
mm
|
|
LGCY-6/7
|
6
|
0.7
|
YCD4B22-95,70kW
|
1400
|
3750*1920*1700
|
|
LGCY-7.5/7
|
7.5
|
0.7
|
YC4D80-K20,58kW
|
1850
|
3900*1920*1700
|
|
LGCY-8.5/14
|
8.5
|
1.4
|
4BTA3.9-C125,93kW
|
1900
|
3900*1920*1900
|
|
LGCY-9/7
|
9
|
0.7
|
YC4D95Z-K20,70kW
|
1850
|
3900*1920*1700
|
|
LGCY-9/14.5
|
9
|
1.45
|
YC6B150Z-K20,110kW
|
2380
|
3970*1940*2350
|
|
LGCY-10/7
|
10
|
0.7
|
YC4D95Z-K20,70kW
|
1900
|
3900*1920*1700
|
|
LGCY-10/10
|
10
|
1
|
4BTA3.9-C125,93kW
|
1900
|
3900*1920*1900
|
|
LGCY-12/7
|
12
|
0.7
|
4BTA3.9-C125,93kW
|
2050
|
3900*1920*1900
|
|
LGCY-12/10
|
12
|
1
|
YC6B150Z-K20,110kW
|
2380
|
4080*1980*2350
|
|
LGCY-12/12
|
12
|
1.2
|
EQ6BT5.9-C160,118kW
|
2380
|
4080*1980*2350
|
|
LGCY-13/17
|
13
|
1.7
|
6CTA8.3-C215,158kW
|
2380
|
3780*1980*2350
|
|
LGCY-13/13
|
13
|
1.3
|
6BTA5.9-C180,132kW
|
2750
|
3450*1520*2220
|
|
LGCY-15/13
|
15
|
1.3
|
WD415.23,166kW
|
3350
|
3380*1650*2500
|
|
LGCY-16/13
|
16
|
1.3
|
6CTA8.3-C215,158kW
|
3700
|
3980*1800*2450
|
|
LGCY-16/17
|
16
|
1.7
|
6CTA8.3-C260,194kW
|
3700
|
3650*1800*2500
|
|
LGCY-17/7
|
17
|
0.7
|
6BTA5.9-C180,132kW
|
3050
|
3380*1640*2350
|
|
LGCY-17/14.5
|
17
|
1.45
|
6CTA8.3-C260,194kW
|
3700
|
3980*1800*2450
|
|
LGCY-18/17
|
18
|
1.7
|
6CTA8.3-C260,194kW
|
3700
|
3980*1800*2450
|
|
LGCY-18/19
|
18
|
1.9
|
CUMMINS 6CTA8.3-C260
|
3700
|
3980*1800*2450
|
|
LGCY-21/35
|
21
|
3.5
|
CUMMINS QSZ13-C500
|
5000
|
4600x1950x2600
|
|
LGCY-22/8
|
22
|
0.8
|
6CTA8.3-C260,194kW
|
4000
|
4580*1950*2600
|
|
LGCY-22/14
|
22
|
1.4
|
YC6M340L-K20,250kW
|
4500
|
4580*1950*2600
|
|
LGCY-22/13S
|
22
|
1.3
|
WD615.46,266kW
|
4500
|
4250*1950*2500
|
|
LGCY-22/20
|
22
|
2
|
NTA855-P400,298kW
|
4850
|
4450*1950*2650
|
|
LGCY-26/20
|
26
|
2
|
CUMMINS 6LTA8.9-C360
|
4500
|
4600*1950*2850
|
|
LGCY-26/25
|
26
|
2.5
|
CUMMINS QSZ13-C500
|
5000
|
4600*1950*2600
|
|
LGCY-26/35
|
26
|
3.5
|
CUMMINS QSZ13-C550
|
6800
|
4700*2100*2850
|
|
LGCY-27/10
|
27
|
1
|
YC6M340L-K20,250kW
|
5000
|
4600*1950*2850
|
|
LGCY-27/20
|
27
|
2
|
YC6M395L-K20
|
4850
|
4600*1950*2850
|
|
LGCY-27/22
|
27
|
2
|
CUMMINS NTA855-P400
|
4850
|
4600*1950*2850
|
|
LGCY-33/25
|
33
|
2.5
|
CUMMINS QSZ13-C550
|
6800
|
4700*2100*2850
|
|
LGCY-33/35
|
33
|
3.5
|
CUMMINS KTA19-P630
|
6800
|
4700*2100*2850
|
