Quick Details
-
Duct Rod Diameter:
-
4.5mm-16mm
-
Duct Rod Length:
-
50m-500m
-
Rod Material:
-
FRP inner core, composite jacket
-
Temperature range:
-
-40℃ to +80℃
-
Rod Color:
-
Yellow, red, blue, orange etc.
-
Frame Color:
-
Silver, black
-
Frame Material:
-
Painted, hot-dip galvanized
-
MOQ:
-
1 set
-
Wheel Material:
-
Rubber
-
Name:
-
Fiberglass Duct Rodder
Quick Details
-
Brand Name:
-
Long Zhuo
-
Place of Origin:
-
Hebei, China
-
Model Number:
-
FDR
-
Duct Rod Diameter:
-
4.5mm-16mm
-
Duct Rod Length:
-
50m-500m
-
Rod Material:
-
FRP inner core, composite jacket
-
Temperature range:
-
-40℃ to +80℃
-
Rod Color:
-
Yellow, red, blue, orange etc.
-
Frame Color:
-
Silver, black
-
Frame Material:
-
Painted, hot-dip galvanized
-
MOQ:
-
1 set
-
Wheel Material:
-
Rubber
-
Name:
-
Fiberglass Duct Rodder
14mm 300m Fiberglass Rodding Cane Duct Rodder
Fiberglass duct rod or duct rodders and commonly called python rod by its nature passing through under ground ducts by ups, down negotiating the duct curvature thus very convinient to pull the cables , wires inside the duct , also it can be used to locate the duct block or damage portion identifications . its has high safety aspects to use underground applicartions because of its non conductivity of electricity, sets a major safety to site workers .
It has been built with rigid sturdy steel tubular fabrication for easy usage at site and can be self coiled in the tubular frame and easily roll like trolley on ground by its wheels fitted at bottom .
The ducts rodders normmaly comes in various diameters from 4.5 mm to 16 mm as per ground applications. normally 10 mm dia FRP rodders used for pulling, cleaning and locating blocks in Fiber optic Cable network applications .
Mini Duct Rodder without Wheels
Rod Dia.: 4mm, 4.5mm, 6mm.

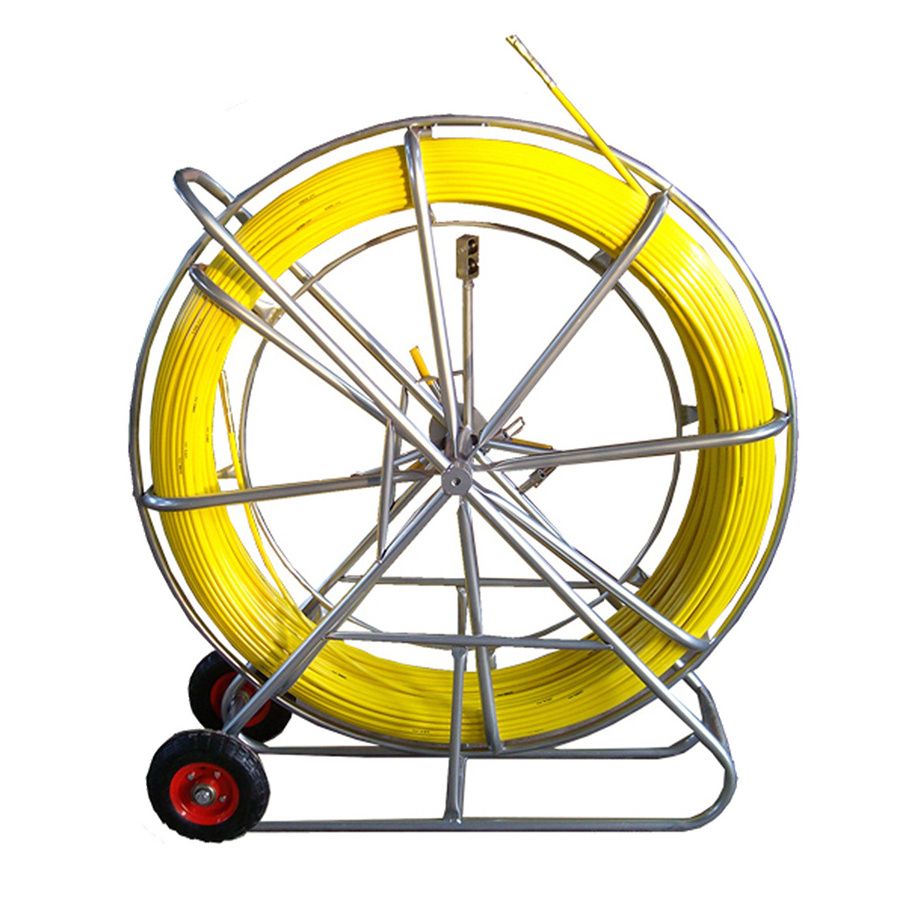

Fiberglass Duct Rodder with Wheels
Rod Dia.: 7mm,8mm, 9mm, 10mm, 11mm, 12mm, 13mm, 14mm, 15mm, 16mm.
|
Specification
|
Rod Diameter (mm)
|
Φ4.5,Φ6,Φ8,Φ9,Φ10,Φ11,Φ12,Φ13,Φ14,Φ15,Φ16
|
|
|
Rod Length (m)
|
30~500
|
|
|
Frame Spec.(cm)
|
50*40*15, 67*55*16, 76*66*16, 95*90*48, 105*100*48, 130*120*48, 150*140*48
|
|
|
Color
|
Blue, yellow, red, white etc
|
|
|
Rod Inner
|
Extruded by fiber glass and high strength resin at high temperature
|
|
|
Rod Outer
|
High Density polyethylene coating
|
|
|
Frame
|
Steel with high-temperature Spray coating
|
|
|
Wheel
|
Rubber
|
|
|
Drawing head
|
Copper
|
|
|
Density
|
55g/m
|
|
|
Working temperature
|
-40°C to +80°C
|
|
|
Breaking tension
|
100kg
|
|
|
Bending Radius
|
295mm
|
|
|
Technology
|
Pultrusion
|
|
Packaging
|
Inside
|
Plastic woven strip wind around the frame
|
|
|
Outside
|
Carton, Wooden Pallet or Wooden Crate
|
Hebei Long Zhuo Trade Co.,Ltd is a profesional manufacture for more than 10 years in China. For the past few years, we have devoted ourselves to provide high quality products to the overseas market.
Our main products are electric power tools, such as Fiberglass Duct Rodder, Cable Roller, Cable Pulley, Distance Measuring Wheel, Engine Power Winch, Cable Grip, Cable Tray, Cable Reel Stand etc.
All of the products can be made as the customers' request.
