Quick Details
-
Place of Origin:
-
Liaocheng, China
-
Brand Name:
-
QT
-
Single Pulse Energy:
-
90J /110J
-
Pulse Width:
-
0.2-5.0mm
-
Wavelength:
-
1064-1080NM
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Other
-
Core Components:
-
fiber laser source
-
Product name:
-
Handheld Laser Welding Machine
-
Interface type:
-
QBH
-
Collimating length:
-
50 (D20F50*3.5)
-
Focal length:
-
150 (D20F50*3)
-
Protective lens:
-
D20X2
-
Keywords:
-
3 in 1 laser cleaner cutter welder
-
Welding mode:
-
Hand-held Laser Welding Head
-
Cooling System:
-
Build-In Water Cooling
-
Power Supply:
-
220V/380V 50HZ/60Hz
-
Processing material:
-
CS, SS, Aluminum, Titanium, Galvanized Sheet, etc.
Quick Details
-
Max. Output Power:
-
2000w
-
Use:
-
welding, cleaning and cutting
-
Laser Source Brand:
-
MAX, Raycus, JPT, etc
-
Place of Origin:
-
Liaocheng, China
-
Brand Name:
-
QT
-
Single Pulse Energy:
-
90J /110J
-
Pulse Width:
-
0.2-5.0mm
-
Wavelength:
-
1064-1080NM
-
Weight (KG):
-
300 KG
-
Marketing Type:
-
Other
-
Core Components:
-
fiber laser source
-
Product name:
-
Handheld Laser Welding Machine
-
Interface type:
-
QBH
-
Collimating length:
-
50 (D20F50*3.5)
-
Focal length:
-
150 (D20F50*3)
-
Protective lens:
-
D20X2
-
Keywords:
-
3 in 1 laser cleaner cutter welder
-
Welding mode:
-
Hand-held Laser Welding Head
-
Cooling System:
-
Build-In Water Cooling
-
Power Supply:
-
220V/380V 50HZ/60Hz
-
Processing material:
-
CS, SS, Aluminum, Titanium, Galvanized Sheet, etc.

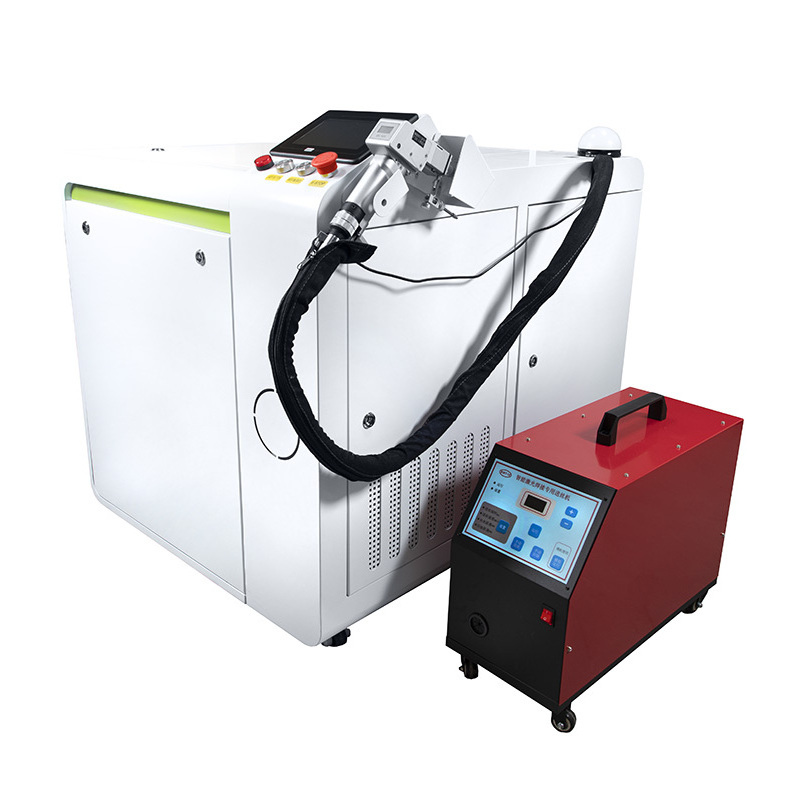

hand held fiber stainless steel laser welder with wire feeder 1000w 1500w 2000w laser welding machine for aluminum metal
Product Description
Specification
|
Items
|
Parameter
|
|
|
||
|
Equipment name
|
Hand-held optical fiber laser welding machine
|
|
|
||
|
Laser power
|
1000W, 1500W, 2000W
|
|
|
||
|
Laser wavelength
|
1080NM
|
|
|
||
|
Fiber cable length
|
Standard:10M, optional: 15M
|
|
|
||
|
Work type
|
Continuous / modulation
|
|
|
||
|
Welding speed scope
|
0~120mm/s
|
|
|
||
|
Cooling type
|
Industrial constant temperature water chiller
|
|
|
||
|
Working temperature range
|
15~35℃
|
|
|
||
|
Working environment humidity range
|
< 70% No omission
|
|
|
||
|
Recommended welding thickness
|
0.5-3mm
|
|
|
||
|
Welding gap requirements
|
≤0.5mm
|
|
|
||
|
Voltage
|
220V/380V
|
|
|
||
|
Pause width
|
0.3-20ms
|
|
|
||
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
