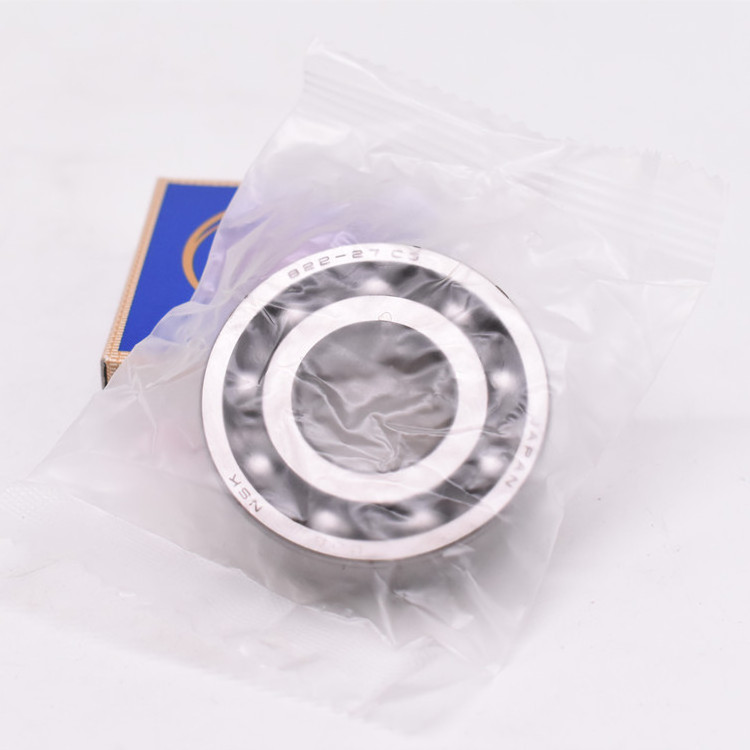

B22-27 C3 Automobile Alternator Bearing B22-27 deep groove ball bearings 22X52X15mm B 22-27

B22-27 C3 Automobile Alternator Bearing B22-27 deep groove ball bearings 22X52X15mm B 22-27

Introduction of B22-27 C3 Automobile Alternator Bearing B22-27 deep groove ball bearings 22X52X15mm:

B22-27 C3 Automobile Alternator Bearing B22-27 deep groove ball bearings 22X52X15mm general with structure of the general sealed deep groove ball bearings, the code method and dimensions in line with current standards require a good sealing performance and high-speed performance, using the base grease, grease filling space accounted for bearings 20% -30% of the internal space, bearing parts of the heat treatment should ensure that the bearing temperature of 150 ℃ in the normal work.Motor bearing is  a kind of specail bearing whichi is specially applied to the motor. Motor bearing is a supporting shaft part. It can guide the axis of rotation, can also turn over the shaft parts, under the concept of bearing is very broad. There are four commonly used types of motor bearing: the rolling bearing, sliding bearing, joint bearing and oil bearing. The most common motor bearing is rolling bearing, namely have a rolling element bearing. Sliding bearing has no rolling element bearings, it means the bearing only can make sliding movement. There are also some bearings for a Boundary Lubricants.

B22-27 C3 Automobile Alternator Bearing B22-27 deep groove ball bearings 22X52X15mm other similar models reference :

Deep groove ball bearings B22-27C3

Bearing number : B22-27C3

Size (mm) : 22x52x15

Bore Diameter (mm) : 22

Outer Diameter (mm) : 52

Width (mm) : 15

Bearing dimensions and specification in catalogue:

d - 22 mm

D - 52 mm

B - 15 mm

C - 15 mm

Weight - 0,13 Kg
