Quick Details
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WAKAMATSU
-
Model Number:
-
WMFR
-
Function:
-
connector
-
Usage:
-
pipe line connector
-
Specification:
-
1/4*1/8~2``*1/2
-
Material:
-
Stainless Steel 304/316
-
Packing:
-
Box
-
Thread:
-
BSPT NPT
-
Working Pressure:
-
2.0MPA
-
Color:
-
Silver
-
Type:
-
2way
-
Application:
-
Water Supply
Quick Details
-
Technics:
-
Casting
-
Shape:
-
Reducing
-
Head Code:
-
Round
-
Warranty:
-
2 years
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
WAKAMATSU
-
Model Number:
-
WMFR
-
Function:
-
connector
-
Usage:
-
pipe line connector
-
Specification:
-
1/4*1/8~2``*1/2
-
Material:
-
Stainless Steel 304/316
-
Packing:
-
Box
-
Thread:
-
BSPT NPT
-
Working Pressure:
-
2.0MPA
-
Color:
-
Silver
-
Type:
-
2way
-
Application:
-
Water Supply

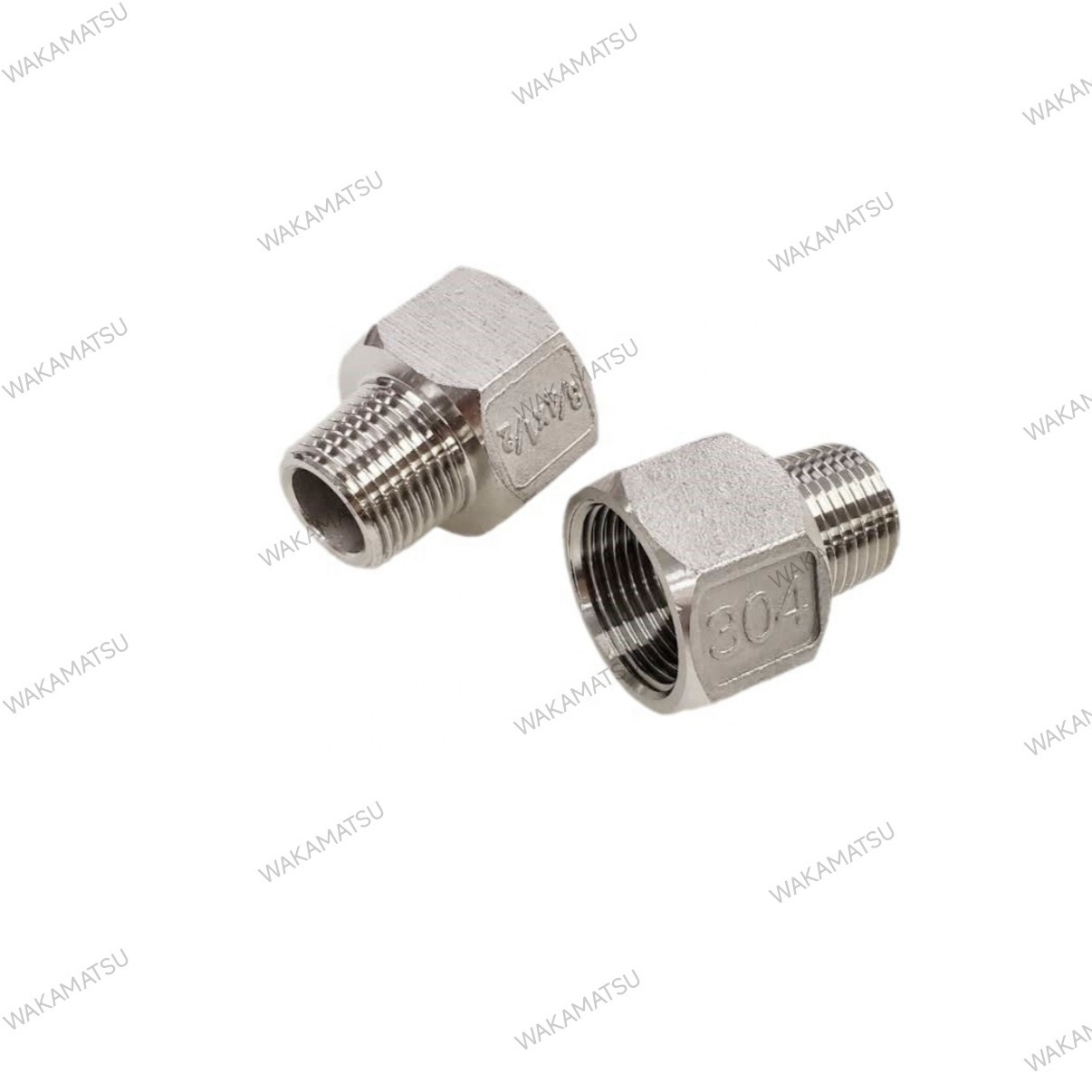

Details Images
Consistent quality for
16 years
offline export Japan Germany USA since 2012
GOOD QUALITY VISABLE
CLEAR THEARD
DEEP VEINS
Various sizes,OEM higly welcomed
Product Paramenters
|
Use Temperature C
|
-20~40°c
|
100°C
|
150°C
|
200°C
|
220°C
|
||||
|
Maximum allowable pressure MPA
|
2.0
|
1.65
|
1.50
|
1.4
|
1.35
|
||||
|
Use fluids
|
Water, oil, air, vapor, gas (other than combustibility, per sex)
|
|
|
|
|
||||
Unit: mm
|
Name
|
Thread(RC.R) Size
|
L
|
L1
|
SW
|
|
WMFR-1/4*1/8
|
1/4*1/8
|
27.0
|
16.5
|
17.0
|
|
WMFR-3/8*1/8
|
3/8*1/8
|
29.0
|
18.5
|
21.0
|
|
WMFR-3/8*1/4
|
3/8*1/4
|
31.0
|
18.5
|
21.0
|
|
WMFR-1/2*1/4
|
1/2*1/4
|
34.0
|
22.0
|
26.0
|
|
WMFR-1/2*3/8
|
1/2*3/8
|
34.0
|
20.5
|
25.0
|
|
WMFR-3/4*3/8
|
3/4*3/8
|
33.5
|
23.0
|
32.0
|
|
WMFR-3/4*1/2
|
3/4*1/2
|
38.5
|
23.0
|
32.0
|
|
WMFR-1*1/2
|
1*1/2
|
41.5
|
26.0
|
38.0
|
|
WMFR-1*3/4
|
1*3/4
|
44.0
|
26.0
|
38.0
|
|
WMFR-11/4*3/4
|
11/4*3/4
|
45.0
|
27.0
|
46.0
|
|
WMFR-11/4*1
|
11/4*1
|
47.0
|
27.0
|
46.0
|
|
WMFR-11/2*1
|
11/2*1
|
48.0
|
28.0
|
54.0
|
|
WMFR-11/2*11/4
|
11/2*11/4
|
50.0
|
28.0
|
54.0
|
|
WMFR-2*11/4
|
2*11/4
|
52.0
|
30.0
|
63.0
|
|
WMFR-2*11/2
|
2*11/2
|
53.0
|
30.0
|
63.0
|
