Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC
Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC
Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC
Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC
Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC
Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC
Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC
Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC

Multi-Touch Custom PCAP Touchscreen Panel 15 15.6 17 18.5 19 21.5 27 32 Inch Capacitive Touch Screen with EETI ILITEK Drive IC

FOB Reference Price: Get Latest Price
≥10 Pieces
US $45
≥100 Pieces
US $40
≥1000 Pieces
US $35
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Length:
Customized according to needs
Application:
Industrial Touch, Medical Devices, Smart Home, Application based customization
Interface:
USB, RS232
Width:
Customized according to needs
Features:
AG AR AF Glass Can Support, Glove Touch, Stylus Touch, Waterproof, 10 Points Touch, Max 40 Points
Drive IC:
EETI, ILITEK, Goodix, Cypress, Focaltech, SIS
Product Name:
Touch Screen / Touch Panel
Structure:
G+G / P+G / G+F / G+FF
Certification:
CE ROHS
Surface Hardness:
6H, 7H or Custom
SIze:
Standard up to 65 inch
Operating Systems:
Win7,Win8, Win10, Android, Linux, IOS
Customized Function:
Logo, Waterproof, Gloves Touch, AG/AR/AF
Warranty:
12 Months

Quick Details

Place of Origin:
Guangdong, China
Brand Name:
Yunlea, Customized Logo Available
Model Number:
Custom
Length:
Customized according to needs
Application:
Industrial Touch, Medical Devices, Smart Home, Application based customization
Interface:
USB, RS232
Width:
Customized according to needs
Features:
AG AR AF Glass Can Support, Glove Touch, Stylus Touch, Waterproof, 10 Points Touch, Max 40 Points
Drive IC:
EETI, ILITEK, Goodix, Cypress, Focaltech, SIS
Product Name:
Touch Screen / Touch Panel
Structure:
G+G / P+G / G+F / G+FF
Certification:
CE ROHS
Surface Hardness:
6H, 7H or Custom
SIze:
Standard up to 65 inch
Operating Systems:
Win7,Win8, Win10, Android, Linux, IOS
Customized Function:
Logo, Waterproof, Gloves Touch, AG/AR/AF
Warranty:
12 Months


Overview

Projected Capacitive (PCAP) touch technology offers a fast and sensitive response and professional-grade reliability combined. The Yunlea projected capacitive touch screen is designed for strict industrial, medical, and automotive applications. We can also combine PCAP touch screens with liquid crystal displays (LCDs), which is an integrated embedded solution that helps simplify the supply chain and assembly.

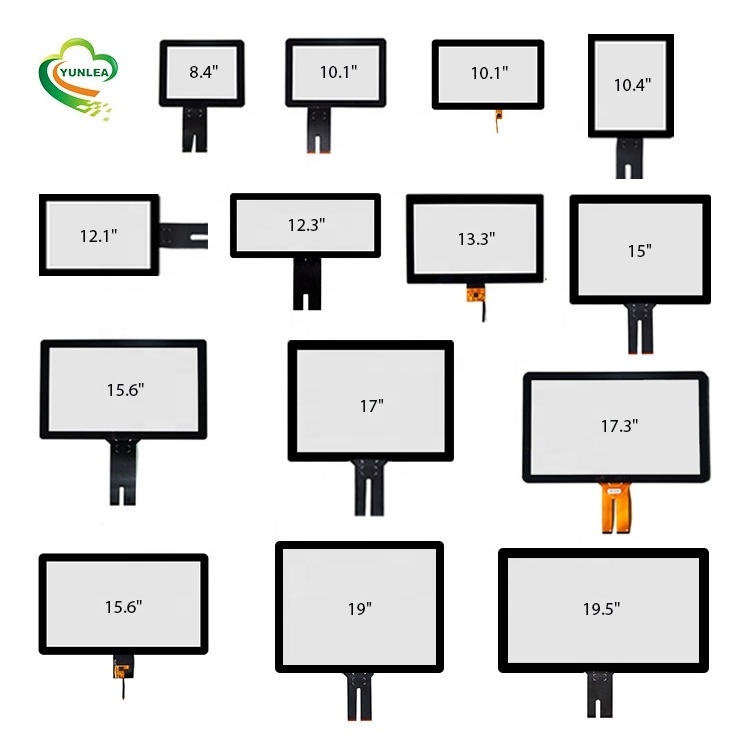

Product Catalogue
Size
Sensor OD
(mm)
Lens OD
(mm)
R angle
Window VA
(mm)
Touch Controller
3.5"
82.34x56.86
94.94x66.86
74.94x50.36
Mstar 2133A
4.3"
103.10x85.40
114x77
96.04x53.86
FT5346
5"
120.7X75.8
127X85.80
R5
109X65.8
FT5436
7"
159.70x94.10
164.90x100
154.08x85.92
FT5316
8.4"
182×140.2
207×166
R10
170.4×127.8
EETI/ILITEK
10.1"
239.6×158.20
254.96×172.6
R10
217.96×136.6
EETI/ILITEK
10.4"
233.4×177.9
259.10×206.3
R10
213.1×160.3
EETI/ILITEK
12.1 "
280×210.5
220.5×290
R4
246×184.5
ILITEK
259.6×201.1
293×237
R9
246×184.5
EETI/ILITEK
15"
319×244
339.9×263.9
R2
304×228
ILITEK
329×245
339.9×263.9
R2
304×228
EETI/ILITEK
15.6"
358×210
387×231
R16
344×194
ILITEK
362×222
387×231
R8
344×194
EETI/ILITEK
17"
356.92×290.34
377×309
R2
338.92×271.34
ILITEK
366.58×299
377×309
R2
338.92×271.34
EETI/ILITEK
17.3"
398.9×235.8
423.21×256.2
R16
383.21×216.2
ILITEK
18.5"
429.8×249.9
458×283
R16
410.8×231.4
ILITEK
430.8×261.4
440.8×271.4
R8
410.80×231.4
EETI/ILITEK
19"
398.32x321.06
421×346
R2
377.32×302.06
ILITEK
400.32×329.9
421×346
R2
377.32×302.06
EETI/ILITEK
19.5"
450.5×259.76
473.5×281.26
R16
433.5×241.26
ILITEK
21.5"
496.42×287.43
524×321.8
R16
477.6×269.10
ILITEK
508×303.8
524×321.8
R8
477.6×269.10
EETI/ILITEK
23.6"
543.84×316
573×349
R16
523.3×295.2
ILITEK
23.8"
544.03×315.5
573×349
R16
525.5×297
ILITEK
27"
618×355.7
646×384
R16
598×336
ILITEK
619×362
646×384
R16
598×336
EETI/ILITEK
32"
719.7×414.3
746.7×441.3
R16
698.7×393.3
ILITEK
720.7×420.3
746.7×441.3
R16
698.7×393.3
EETI/ILITEK
43"
973×561.5
994.2×587.3
R15
943.2×531.4
ILITEK
55"
1254.6x716.41
1287.6x758.4
R8
1209.6x680.4
ILITEK

If you would like to know the standard drawing information, please contact us.

Application Area

Click Here to Learn More>>

Customized Service
Customizable
Cover Glass：
1. Shape: Custom sizes, shapes, edge treatments, holes and cut-outs
2. Color: Silk printing, Logo
3. Glass material: Gorilla Glass, Tempered Glass, PMMA
4. Treatments: Mirror, AG, AR, AF

Sensor：
1. Sensor Material: Glass, Film, Film+Film
2. FPC: Shape design optional
3. IC: EETI, ILITEK, SIS, Cypress, Focaltech, Goodix and so on
4. Interface: I2C, USB, RS232
Type
Projected Capacitive (PCAP) Touch Screen
Structure
G+G / P+G / G+F / G+FF
Touch Points
10 points or Custom
Interface of CTP
USB/I2C/RS232
Surface Hardness
6H, 7H or Custom
Silk-print Color
Black or other
Customized Function
AR/AF/AG, Waterproof, Glove / Stylus Touch and so on.


Touch Controller Selectable
Focaltech
FT5316, FT5336,FT5346, FT5436
Goodix
GT911, GT927, GT928
Cypress, Atmel, SIS
EETI
EETI3189, EETI3188, EETI3000, EXC80H83
ILITEK
ILI2511, ILI2510
Supported OS
Win 7/8/10/11, Wince, Andriod, Linux, Mac, QNX

If you would like to know the standard drawing information, please contact us.
