3t -30t small feed silo for poultry animal feed bin feed tank galvanized steel silo for sale

3t -30t small feed silo for poultry animal feed bin feed tank galvanized steel silo for sale

FOB Reference Price: Get Latest Price

≥1 Sets

US $710

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Brand Name:: Famtun steel silos

Weight:: 3420 KG

Name:: customized small silo for animal feed

Usage:: feed Silos

Silo Materials:: Hot Galvanized Steel

Application:: Farming Industry

Bottom Type:: hopper Bottom

Handling equipments:: Conveyor, elevator,auger

Auxillary System:: Cleaning, ventilation system

Key words:: feed silos

After sales Service Provided:: Field installation, commissioning and training

After-sales Service Provided:: Field maintenance and repair service

Quick Details

Marketing Type:: customized silos

Core Components:: grian storage silos

Place of Origin:: Shandong, China

Brand Name:: Famtun steel silos

Weight:: 3420 KG

Name:: customized small silo for animal feed

Usage:: feed Silos

Silo Materials:: Hot Galvanized Steel

Application:: Farming Industry

Bottom Type:: hopper Bottom

Handling equipments:: Conveyor, elevator,auger

Auxillary System:: Cleaning, ventilation system

Key words:: feed silos

After sales Service Provided:: Field installation, commissioning and training

After-sales Service Provided:: Field maintenance and repair service

Product Overview

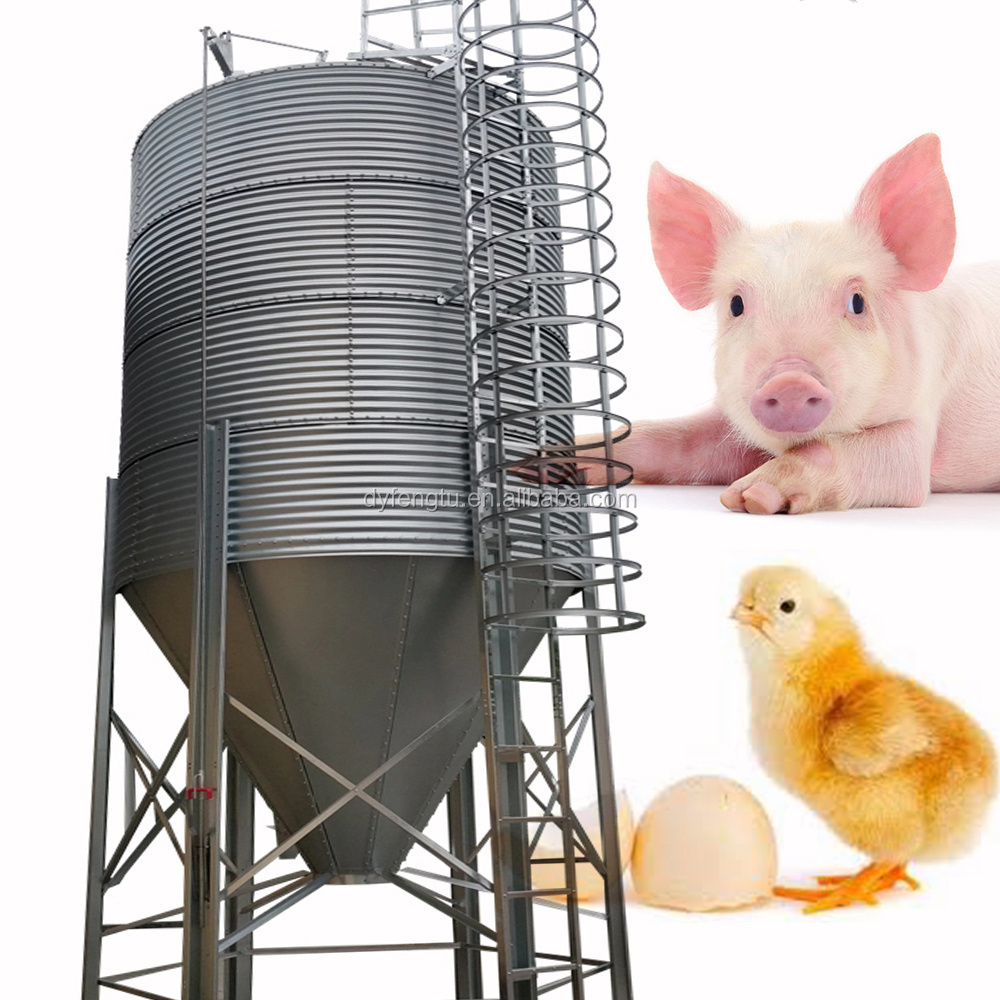

Famtun poultry feeding silo system

^{What field can the famtun feed silo appied to?}

Products Description

Most Popular small feed Silo Technical Specifications
Capacity	2.7 ton	4.2 ton	5.8 ton	7.3 ton	11 ton	14 ton	18ton	27.5 ton
Model	HR18301	HR18302	HR18303	HR18304	HR27502	HR27503	HR27504	HR36703
Diameter(m)	1.83	1.83	1.83	1.83	2.75	2.75	2.75	3.67
Total Height(m)	3.8	4.7	5.6	6.5	5.8	6.7	7.6	7.6
Volume (m3) Density:0.75ton/m3	4.1	6.5	8.9	11.3	17	22.4	27.8	42.5

FEATURES AT A GLANCE

SILOS CAPACITY CUSTOMIZATION

LIGHT WEIGHT(1/5 WEIGHT OF CONCRETE SILO)

LONG SERVICE LIFE (30-50YEARS)

INTELLIGENT CONTROLLING SYSTEM

INTERCHANGEABILITY

LARGE CAPACITY RANGE (2T-50T)

SHORT CONSTRUCTION PERIOD

samll breeding silo

poultry feed silo

small animal feeding silo

Famtun Grain Silo Construction Details

1- Roof Top:
The roof is designed to stand up even in the harshest environment of extreme snow disaster with the echo of top and down part strong structure and connecting radial ribs which is Z interconnected again itself. Roof panels incorporate with ribs with over and under lap profiles ensuring a precise fit.
2- Body Steel Plate:
A commercial275g/m2 double galvanized steel coating increases life and durability.450g/m2 and 600g/m2 coating available for customized orders. Each sidewall sheet is manufactured from high-tensile steel that has the ability to overcome extreme power, pressure.
3- Stiffeners:
famtun's high tension stiffener(can be located inside or outside silo) profiles make bins stronger allowing silos to stand well even under extreme hurricanes. Base stiffener boots are coated so they won’t rust over time .
4- High strength bolts and screws:
f amtun’s high strength bolts paired with sealing washers, coated hardware provides added protection from rust to ensure your grainbin stands the test of time.
5- Manhole: double layer security locking manhole system

bolt assemblage

1; the sheets are bolted together by common or high strengthen bolts.. At the same time, the interior vertical stiffeners can afford the vertical friction. It is 0.96m between every two stiffeners, the cutting face is in the shape of "V", and there are spherical waterproof washers in the bolts' hole and water proof mastic bars between every two pieces of silo sheet.

beam

2. Radial beam silo roof support system: the roof is made of galvanizing board that is 0.8mm thick, and bolts are with galvanizing
die. There are special equipments on the silo roof such as natural vents, manhole, roof ladders, and secure cages and so on

roofing

.3.Th e main parts of the silo bin and roof are made of galvanizing board or spares which can make silo become even more steady and
durable with longer life time, which is good to realize automatic work

Manufacturing Technique

CORRUGATED STEEL MOLDING LINE

NUMERICAL CONTROL SHEARING MACHINE

LASER CUTTING MACHINE

SALES AND SERVICE NETWORK

After-Sale Service

F AMTUN Worry Free After-Sale Service
* FAMTUN provide advanced grain safety storage technology to assure your grain 100% quality stability.
* Quality guarantee is one year after installation and commissioning or 12 months after leaving China Port. The maturity is the first.
* 7 days x 24 hours service, within 24 hours reply/solve of any technical issues upon request.
* Routinely telephone track to remove all might be problems or issues guarantying the whole system long lasting safety and reliability.
* FAMTUN will consider your all other needs like customs clearance, sea delivery, insurance, customs tax benefit plan,
documentations etc. So our respected Users feel so relaxed and easy to get the silo system well

Product packaging
