Quick Details
-
Dimension(L*W*H):
-
6000mm*2800mm*2750mm
-
Weight:
-
6800 KG
-
Marketing Type:
-
New Product 2021
-
Mobility:
-
crawler
-
Power:
-
Yuchai YC6J220
-
Engine Power:
-
162kw
-
Drill Pipe Sizes:
-
60mm x3000mm
-
Hole diameter:
-
80-115mm
-
Rotating torque:
-
1650N.m
-
Rotate speed:
-
0-110 Rpm
-
Walking speed:
-
2/3 km/h Dual Speed
-
Gradient:
-
30°
-
Dry Dust Collector:
-
Standard
Quick Details
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Hengwang
-
Voltage:
-
380V
-
Dimension(L*W*H):
-
6000mm*2800mm*2750mm
-
Weight:
-
6800 KG
-
Marketing Type:
-
New Product 2021
-
Mobility:
-
crawler
-
Power:
-
Yuchai YC6J220
-
Engine Power:
-
162kw
-
Drill Pipe Sizes:
-
60mm x3000mm
-
Hole diameter:
-
80-115mm
-
Rotating torque:
-
1650N.m
-
Rotate speed:
-
0-110 Rpm
-
Walking speed:
-
2/3 km/h Dual Speed
-
Gradient:
-
30°
-
Dry Dust Collector:
-
Standard

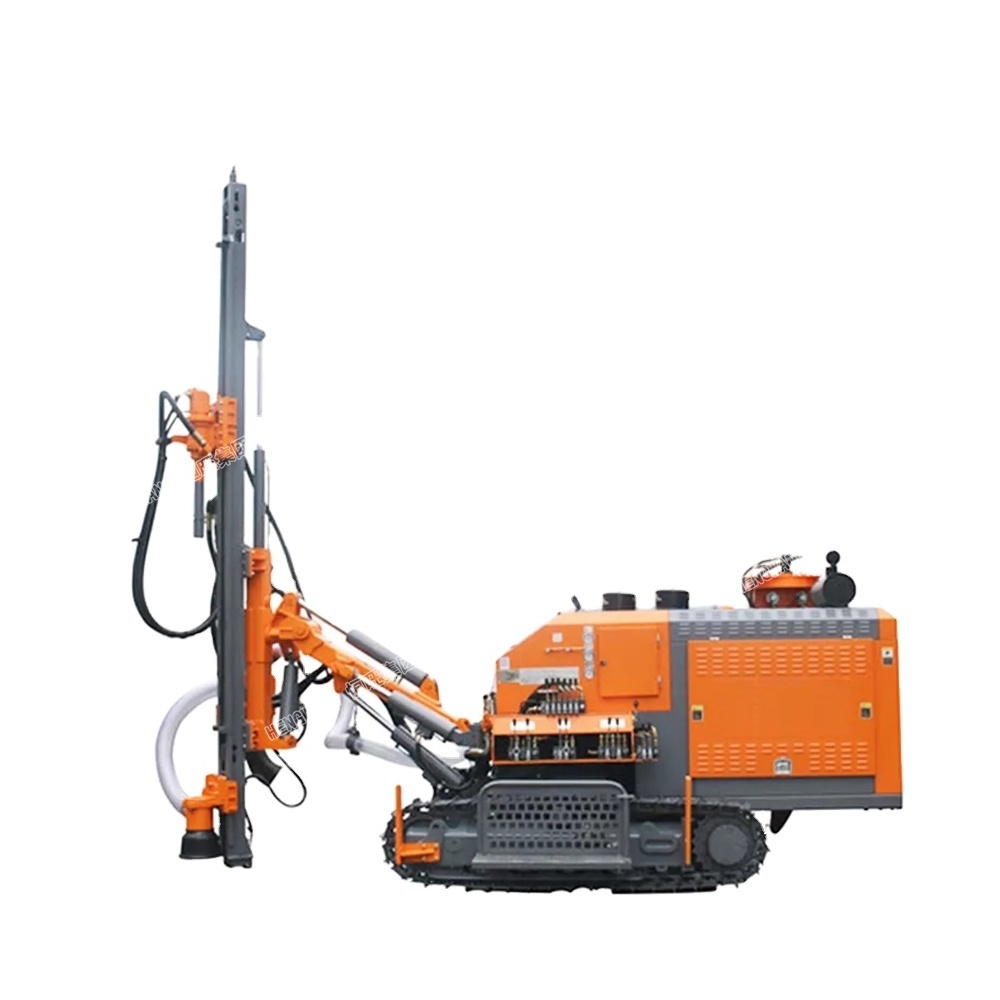

200m borehole rig bore hole drilling machine water blasting drill rig perforadoras de pozos de agua mine drilling rig
Product Description
200m borehole rig bore hole drilling machine water blasting drill rig perforadoras de pozos de agua mine drilling rig
Technical Parameter
|
Main technical specifications
|
|
|
|
Power
|
Yuchai YC6J220 162 kW
|
|
|
Hole Depth
|
20m
|
|
|
Drill Pile Sizes
|
60 mmX3000 mm
|
|
|
Hole Dia
|
80-115mm
|
|
|
DTH Hammer
|
3.5"
|
|
|
Rotation Torque (Max.)
|
1650N.m
|
|
|
Rotation Speed
|
0-110 rpm
|
|
|
Working Pressure
|
14.5 bar
|
|
|
F.A.D
|
12 m3/min
|
|
|
Tramming Speed (Max.)
|
2/3 km/h Dual Speed
|
|
|
Gradient
|
30°
|
|
|
Track Frame Oscilation
|
±10°
|
|
|
Total Weight
|
6,800 kg
|
|
|
Transportation Dimensions
|
6,000X2,800X2,750 mm
|
|
|
Dry Dust Collector
|
Standard
|
|
|
Dual Speed Walking Motor
|
Standard
|
|
