Quick Details
-
Brand Name:
-
EENOR
-
Voltage:
-
210v-550v
-
Dimension(L*W*H):
-
3500x3250x2250 mm
-
Year:
-
2024
-
Weight (KG):
-
13000 KG
-
Tire Machine Type::
-
Tire Recycling Machine
-
Oil way::
-
Automatic control
-
Adjust roller::
-
Automatic control 1-15mm
-
Max gap::
-
4.5-15 mm
-
Bushing way::
-
Nylon/Copper/Bearing
-
Safety device::
-
Hydraulic brake
-
After-sales Service Provided::
-
Engineers available to service machinery overseas
-
Control way::
-
Full automatic system
-
Structure mode::
-
Double roller type
-
Cooling system::
-
Water cooling system
Quick Details
-
Diameter of Roll(mm):
-
450 mm
-
Length of Roll(mm):
-
1200 mm
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
EENOR
-
Voltage:
-
210v-550v
-
Dimension(L*W*H):
-
3500x3250x2250 mm
-
Year:
-
2024
-
Weight (KG):
-
13000 KG
-
Tire Machine Type::
-
Tire Recycling Machine
-
Oil way::
-
Automatic control
-
Adjust roller::
-
Automatic control 1-15mm
-
Max gap::
-
4.5-15 mm
-
Bushing way::
-
Nylon/Copper/Bearing
-
Safety device::
-
Hydraulic brake
-
After-sales Service Provided::
-
Engineers available to service machinery overseas
-
Control way::
-
Full automatic system
-
Structure mode::
-
Double roller type
-
Cooling system::
-
Water cooling system
CE Certification and Open Mixing Mill,open mixing mill Type hot milling machinery with two roll
Rubber Banbury Mixer / Rubber Mixing Mill / Open Mixing Mill
1.Main features:
1) The roll adopts the vanadium titanium metal alloy chilled cast iron and its surface is hard and wearproof. The internal cavity is processed to make temperature well proportioned on the roll surface.
2) The machine is equipped with an overload protection device to prevent the main components from being damaged.
3) The machine is also equipped with an emergency brake device. When an emergent arises, just draw the safety pull rod, and the machine will stop immediately. It is safe and reliable.
4) The transmission system adopts a hardened toothsurface reducer, which has a compact structure with higher transmission
efficiency, lower noise and longer service life.
5) The base frame is a whole framework, which is convenient for installation.
6) Stock bender for direct rubber sheet and knife to cut as your need to assemble.
7) Auto-lubrication sysytem for greese or oil and match bearing bush.
2.Technical parameter of rubber mixing mill:
|
Type |
XK-160 |
XK-250 |
XK-300 |
XK-360 |
X(S)K-400 |
X(S)K-450 |
X(S)K-560 |
|
|
Working diameter of rolls (mm) |
Ø150 |
Ø250 |
Ø300 |
Ø360 |
Ø400 |
Ø450 |
Ø560 |
|
|
Working length of rolls (mm) |
320 |
620 |
750 |
900 |
1000 |
1200 |
1530 |
|
|
Working linear speed of front roll(m/min) |
8 |
15.1 |
15.1 |
16.25 |
18.65 |
24.5 |
27.7 |
|
|
Max gap (mm) |
4.5 |
10 |
10 |
10 |
15 |
15 |
15 |
|
|
Capacity per.batch(kg) |
1-2 |
10-15 |
15-20 |
20-25 |
18-35 |
25-50 |
50-65 |
|
|
Driving motor power(kw) |
5.5 |
18.5 |
22 |
30 |
37 |
55 |
90 |
|
|
Overall dimension (mm) |
L |
1080 |
3400 |
3580 |
3940 |
4250 |
5200 |
6120 |
|
|
W |
796 |
1350 |
1550 |
1780 |
1850 |
2380 |
2280 |
|
|
H |
1415 |
1500 |
1695 |
1740 |
1870 |
1770 |
2000 |
|
Weight (kg) |
1100 |
3500 |
5205 |
5670 |
7600 |
13000 |
22000 |
|

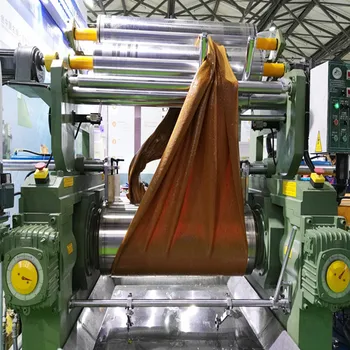

The
open type rubber mixer
is mainly used in rubber & plastic pruducts factory: natural rubber plasticating, raw rubber and compound mixing, as well as rubber warm-up and rubber sheeting.
As a open type two roller mixing mill, it consists of seat, frame, roller, driving gear, lubricating device, cooling and heating device, adjusting device of roller nip, safety brake, motor and reducer, etc. The roller, with smooth surface after polished,is made of chilled
cast iron. Steam and cooling water can be inputted in the empty roller to adjust temperature of roller. Two rollers rotate reversely with different speed, so that rubber materials are drawn into the gap of the two rollers for processing.
