Quick Details
-
Voltage:
-
220V,1 phases 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TPM
-
Model Number:
-
TH-200R2
-
Use:
-
plastic crates
-
Dimensions(L*W*H):
-
850*1500*1850mm
-
Weight:
-
380 KG, 450kgs
-
Model:
-
TH-500CR
-
Control system:
-
PLC touch Screen
-
Heating plate:
-
200x300mm
-
Stamping area:
-
150x250mm
-
Printing temperature:
-
150-300 ℃
-
Printing speed:
-
600pcs/hr
-
Air pressure:
-
6 bar
-
Dimension:
-
1500x1000x1780mm
Quick Details
-
Condition:
-
New
-
Plate Type:
-
Letterpress
-
Color & Page:
-
single color
-
Voltage:
-
220V,1 phases 50Hz
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
TPM
-
Model Number:
-
TH-200R2
-
Use:
-
plastic crates
-
Dimensions(L*W*H):
-
850*1500*1850mm
-
Weight:
-
380 KG, 450kgs
-
Model:
-
TH-500CR
-
Control system:
-
PLC touch Screen
-
Heating plate:
-
200x300mm
-
Stamping area:
-
150x250mm
-
Printing temperature:
-
150-300 ℃
-
Printing speed:
-
600pcs/hr
-
Air pressure:
-
6 bar
-
Dimension:
-
1500x1000x1780mm
Product Description

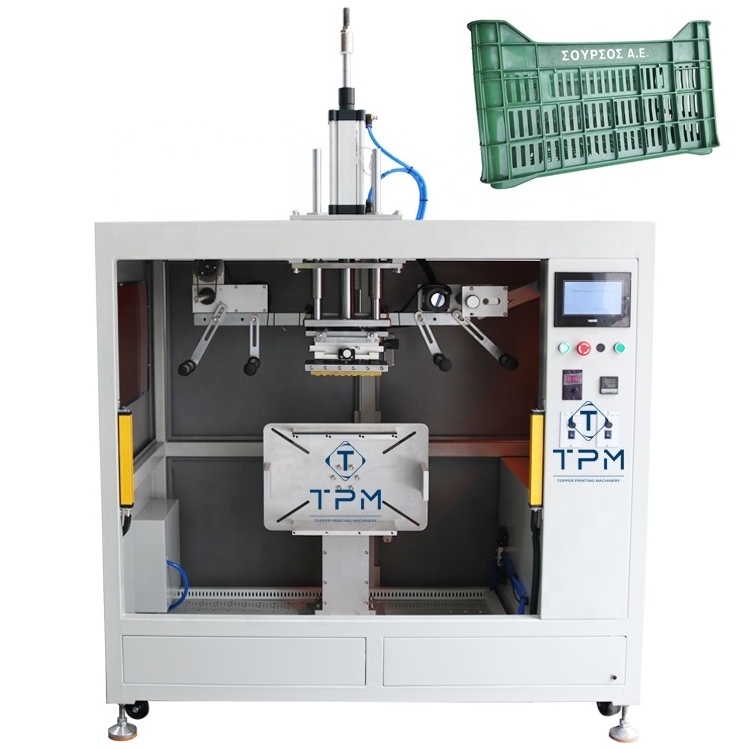

Semi auto pneumatic plastic plate basket for crate rotary hot foil stamping printing machine
A machine specially designed for crate, capable of rotating printing on two sides
Stamping head
Choose different specifications of stamping head based on the product, with different hardness and dimensions
Holding fixture
Customize the matching rotary fixture according to the size of the crate, so that the crate will not move during hot stamping, ensuring printing quality.
Touch panel
The time, temperature, and machine parameters of hot stamping can be controlled separately
Feature
1.
PLC touch screen control, convenient to control machine parameters, can achieve more accurate printing.
2.
Three closed door frames, stable machine structure.
3.
One time printing on both sides, fixture rotary printing.
4.The hot stamping temperature can be controlled and adjusted separately
5.
Auto film wind and tension
6.With safety curtain for safety operation
7.Servo motor control rotate table
8.Stamping pressure can be adjusted
Specification
|
Model
|
TH-500CR
|
|
Stamping Pressure
|
5 Tons
|
|
Heating plate
|
200x300mm
|
|
Stamping size
|
150x250mm
|
|
Stamping size
|
2
|
|
Air Pressure
|
6 bars
|
|
Voltage
|
220V, 1 phases 50Hz
|
|
Dimensions(L*W*H)
|
1500x1000x1780mm
|
|
Weight
|
450kgs
|
|
Rotate angle
|
360 degree
|
|
Printing temperature
|
150-300 ℃
|
