Quick Details
-
Brand Name:
-
Handun
-
Voltage:
-
No
-
Model:
-
HD-600
-
Product name:
-
Wind Powered Roof Air Ventilators
-
Fan Diameter:
-
600mm
-
Material:
-
Stainless steel
-
Working Type:
-
Wind driven
-
Application:
-
Warehouse roof ventilation
-
Weight:
-
8kg
-
Packing type:
-
unassembled or assembled
-
Advantage:
-
Energy Saving; Environmetal Protect
Quick Details
-
Mounting:
-
Roof Fan
-
Power:
-
No
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
Handun
-
Voltage:
-
No
-
Model:
-
HD-600
-
Product name:
-
Wind Powered Roof Air Ventilators
-
Fan Diameter:
-
600mm
-
Material:
-
Stainless steel
-
Working Type:
-
Wind driven
-
Application:
-
Warehouse roof ventilation
-
Weight:
-
8kg
-
Packing type:
-
unassembled or assembled
-
Advantage:
-
Energy Saving; Environmetal Protect

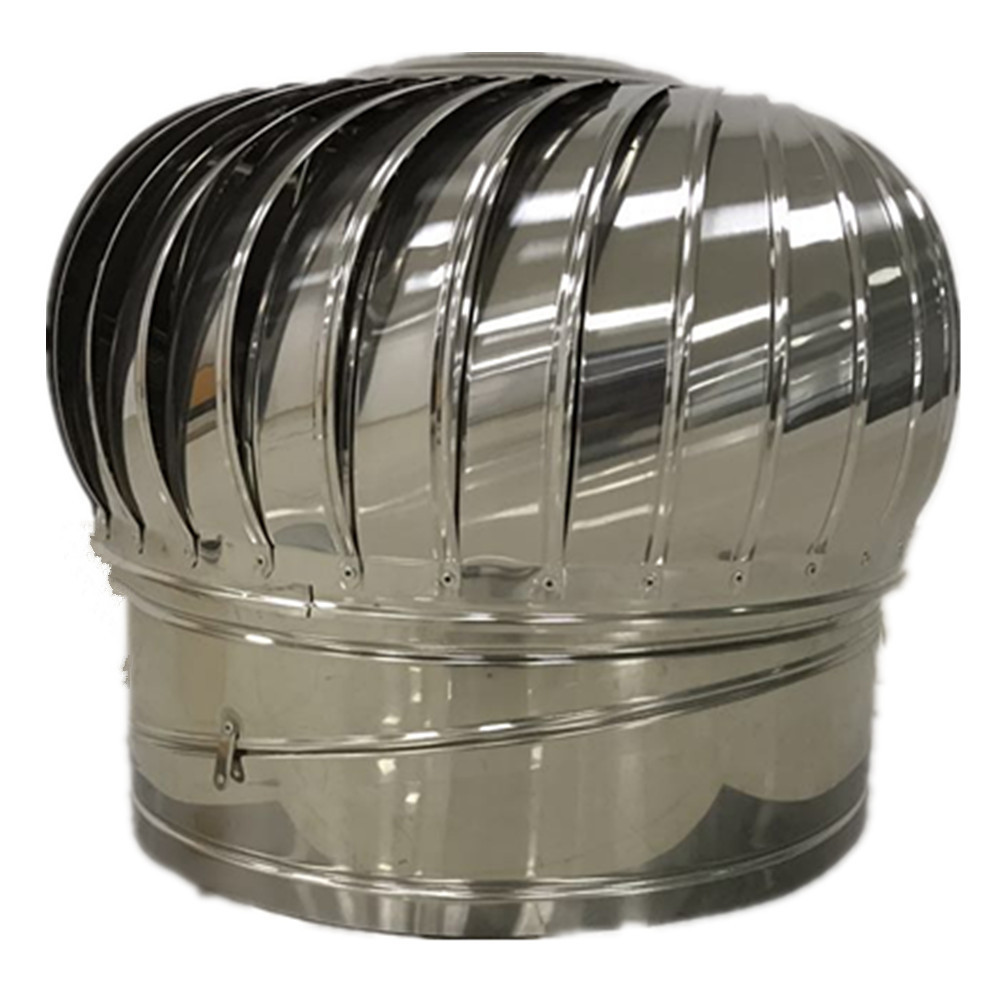

Wind Powered Roof Ventilators
1.Specifications / structure
1). Material: made of stainless steel by stretching forming, attractive appearance, no rust,
2). Bearing: wholel sealing bearing, which can ensure it operates smoothly and constantly.
3). Special central shaft design, high-class lubricating bearing system: preventing turbine blades
rotating at high speed from deformation, and extending the service life.
4). Inside support frame: stainless steel
Technical parameters
|
Model NO. |
Inlet Diameter (mm) |
Outlet Diameter (mm) |
Air speed (km/h) |
Air capacity (m3/h) |
Weight (kg) |
Material |
|
200 |
200 |
400 |
9.6-12.8 |
940-1440 |
2 |
Stainless steel304/201 |
|
300 |
300 |
460 |
9.6-12.8 |
1410-2160 |
3 |
Stainless steel304/201 |
|
400 |
400 |
520 |
9.6-12.8 |
1630-2900 |
3.6 |
Stainless steel304/201 |
|
500 |
500 |
620 |
9.6-12.8 |
2220-3650 |
6 |
Stainless steel304/201 |
|
600 |
600 |
720 |
9.6-12.8 |
2410-4510 |
7 |
Stainless steel304/201 |
|
680 |
680 |
860 |
9.6-12.8 |
2610-5250 |
9 |
Stainless steel304/201 |
|
800 |
800 |
950 |
9.6-12.8 |
3710-5890 |
10.5 |
Stainless steel304/201 |
|
900 |
900 |
1000 |
9.6-12.8 |
3920-7330 |
11 |
Stainless steel304/201 |
|
1000 |
1000 |
1100 |
9.6-12.8 |
4360-8560 |
13 |
Stainless steel304/201 |
2.Advantages
1). Automatically running. wind drive. One time investment, no anymore cost.
2). No operating cost, no electricity consumption, environmental protection, energy-saving.
3). No need maintenance, long life working.
4) Light weight, strong and durable construction.
5) Weather resistance, self-cleanness, high revolving sensitivity and high air venting efficiency.
6) Easy installation:.installation position: flat roof, pitched roof, concrete roof and contour plate of
various industrial plants.
7). waterproof efficiency may reach 100%.
3.Function:
1). Exhausting turbid, humid hot air to exterior and supplying fresh air to interior.
2).Produce air convection as a heat radiator, reducing indoor temperature, increasing air fresh.
3).Reduce air conditioning load, increasing the cooling effect
4.Low noise of environmental protection: Low rotational speed air blower , high to lure swimming skill eliminate noise cushion , streamline shape charge water device effective cooling tower impact on environment , DFN of control ,.
5.Attractive and durable: The shape of the tower is beautiful , merge with the building perfectly; Top layer is it import colored glue clothing to adopt, include ultraviolet absorbent inside,fade. Customers can choose the body color of the tower according to user’s enquiry. The tower body is light and handy Adopt FRP composite in a large amount, fever for Israel soak zinc light-duty steel as skeleton, pass Solid Edge CAD optimization design.
Widely used in these places
1). Ware house ventilation ;
2). Factories and workshops (such as paper mill, galvanized products producing factories,
painting factories);
3). Garage and other buildings which need air ventilate.
