Quick Details
-
Product name:
-
1550 catv Direct modulated optical transmitter
-
Optical wavelength:
-
1550±10 nm
-
Optical output power:
-
2~10mW
-
Frequency range:
-
47~1000 MHz
-
CNR:
-
≥52.0dB
-
Flatness:
-
±0.75dB
-
C/CTB:
-
≥65
-
C/CSO:
-
≥65
-
Certification:
-
CE RoHS, ISO9001
-
Optical connector:
-
SC/APC or FC/APC
Quick Details
-
Place of Origin:
-
Zhejiang, China
-
Brand Name:
-
Fullwell
-
Model Number:
-
FWT-1550DT-10
-
Product name:
-
1550 catv Direct modulated optical transmitter
-
Optical wavelength:
-
1550±10 nm
-
Optical output power:
-
2~10mW
-
Frequency range:
-
47~1000 MHz
-
CNR:
-
≥52.0dB
-
Flatness:
-
±0.75dB
-
C/CTB:
-
≥65
-
C/CSO:
-
≥65
-
Certification:
-
CE RoHS, ISO9001
-
Optical connector:
-
SC/APC or FC/APC

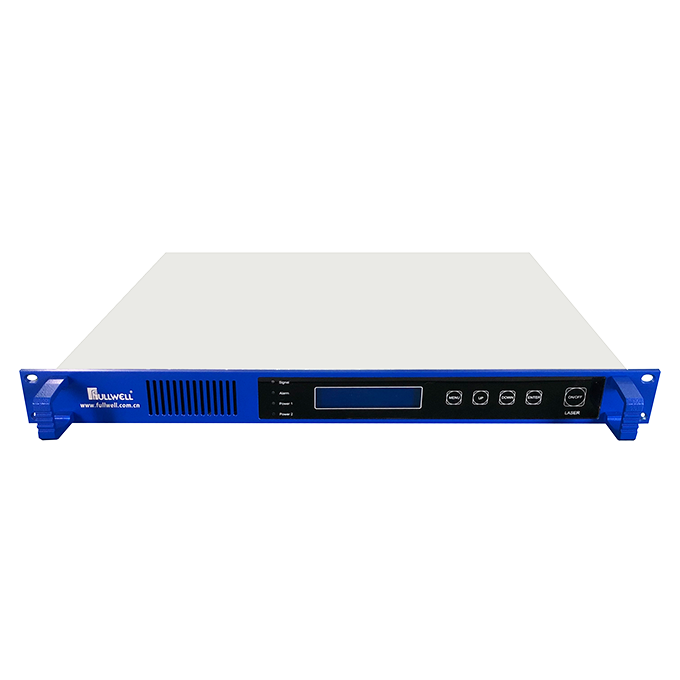

FWT-1550DT Series 1550 nm Advanced Type Directly Modulated Optical Transmitters
FWT-1550DT series of advanced 1550nm directly modulated optical transmitter, is mainly used in overlay insert systems to implement high-value and multi-functional local designed value-added services such as self-run programs. Low chirp, the output is the ITU standard wavelength, the RF driver adopts a self-developed RF predistortion circuit and a built-in perfect microcomputer automatic monitoring system to ensure the excellent performance index of the device.
FWT-1550DT series of advanced 1550nm directly modulated optical transmitter, suitable for 10 ~ 20 kilometers long distance transmission.
Product feature
1. Top quality: The low chirp, high linearity DFB laser, and RF pre-correction circuit are used to keep the C / CTB, C / CSO, and C / N indexes in the best state.
2. Transmission range: 10 ~ 20 kilometers for short distance transmission.
3. Reliability: 19 " 1U standard rack, built-in high-performance 1 + 1 hot backup power supply, which can work at 86 ~ 265Vac city network. MS automatic switching, and chassis temperature automatic control.
4. Excellent performance-price ratio: suitable for FTTH triple play CATV from headend to end user.
5. Intuitive: The laser is the most expensive component of the device. The built-in microprocessor software monitors the working status of the laser, and the working parameters are displayed on the panel LCD.
6. Network management type: SNMP network management, can realize the network management WEB monitoring function.
7. Can be customized 2 outputs, optical power 5 ~ 6dBm output.
Specification
1.Plug-in type Dual Power
2. CNR ≥5 2 .0dB
3. C/CTB ≥65.0dB
4. C/CSO ≥65.0dB
5.DFB laser produced by XT. ORTEL . AOI
6. the Digital Panel (VFD) displays the operating parameters
7.19 "1U standard rack
