Quick Details
-
Brand Name:
-
Zhenheng
-
Power:
-
38.5kw
-
Dimension(L*W*H):
-
13.2*3.2*6.3m
-
Weight:
-
15000 kg
-
Discharging height:
-
3.8-4.2m
-
Total power:
-
38.5kw
-
Mixing motor:
-
2*5.5kw
-
Discharging volume:
-
500L
-
Model of Batcher:
-
PLD800-2/3bins
-
Aggregate bin volume:
-
5m3*2
-
Max. Aggregate Dia:
-
60/80mm
-
Cement weighing hopper:
-
300KG
-
Water weighing support:
-
120KG
-
Additive weighing support:
-
20KG
Quick Details
-
Machine Type:
-
Mobile Concrete Mixing Plant
-
Marketing Type:
-
New Product 2022
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
Zhenheng
-
Power:
-
38.5kw
-
Dimension(L*W*H):
-
13.2*3.2*6.3m
-
Weight:
-
15000 kg
-
Discharging height:
-
3.8-4.2m
-
Total power:
-
38.5kw
-
Mixing motor:
-
2*5.5kw
-
Discharging volume:
-
500L
-
Model of Batcher:
-
PLD800-2/3bins
-
Aggregate bin volume:
-
5m3*2
-
Max. Aggregate Dia:
-
60/80mm
-
Cement weighing hopper:
-
300KG
-
Water weighing support:
-
120KG
-
Additive weighing support:
-
20KG
Product Description

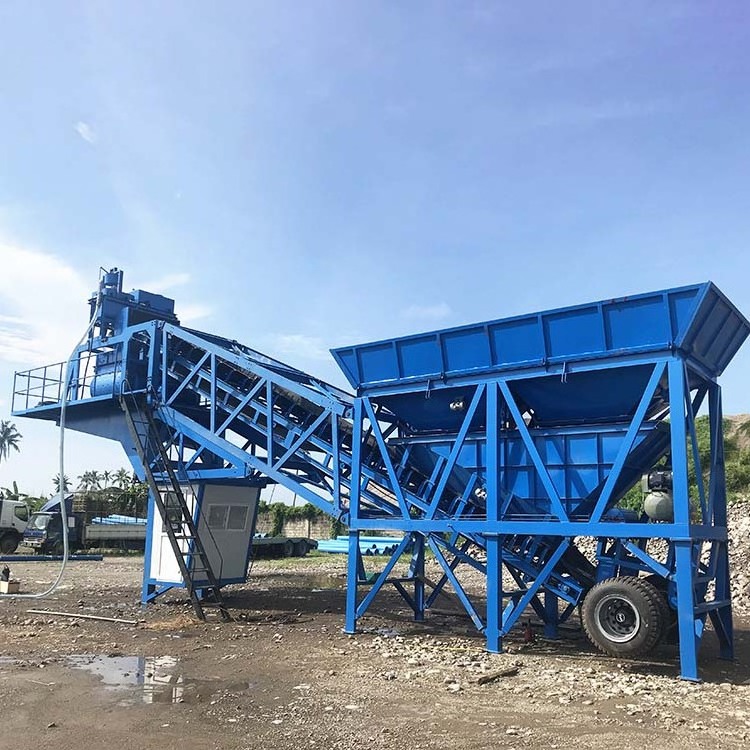

60m3 Portable Dry Ready Trailer Mixer Ready Mix Mini Small Mixing Plants Mobile Concrete Batching Plant Price Cost For Sale
B rie f Introduction of Mobile concrete batching plant :
YHZS concrete batching plant is also called concrete mixing plant, concrete mixing station. It includes horizontal twin-shaft compulsory concrete mixer, concrete batching machine, cement silo and screw conveyor, belt conveyor or skip hopper, and control room. It can produce a variety of concretes, such as plastic, dry hard concrete with high production efficiency, short mixing time, and easy operation. YHZS concrete batching plant is widely used in large and medium-sized building construction, road and bridge, and precast plants. It is the ideal plant for the production of commercial concrete.
Product Paramenters
|
Model
|
|
YHZS25
|
YHZS35
|
YHZS50
|
YHZS75
|
YHZS100
|
|
|
Theory capacity
|
|
25m³/h
|
35m³/h
|
50m³/h
|
75m³/h
|
100m³/h
|
|
|
Discharging height
|
|
3800mm
|
3800mm
|
3800mm
|
3800mm
|
3800mm
|
|
|
Total power
|
|
38.5kw
|
42kw
|
60kw
|
86kw
|
100kw
|
|
|
Approximate weight without silo
|
|
About 13T
|
About 15T
|
About 18T
|
About 22T
|
About 26T
|
|
|
Dimension(L * W * H)
|
|
13.2m X 3.2m
X 6.3m |
13.2m X 3.2m
X 6.3m |
16m X 3.3m
X 8m |
18.5m X 3.9m
X 8.2m |
18.5m X 3.9m
X 8.2m |
|
|
Moving size(L * W * H)
|
|
11.8m X 2m
X3.8m |
11.8m X 2m
X3.8m |
15.6m X 2.1m
X4.2m |
18.1m X 2.3m
X 4.3m |
18.1m X 2.3m
X 4.3m |
|
|
Mixing System
|
Model of Mixer
|
JS500
|
JS750
|
JS1000
|
JS1500
|
JS2000
|
|
|
|
Mixing motor
|
18.5kw
|
22kw
|
37kw
|
30kw×2
|
37kw×2
|
|
|
|
Charging volume
|
800L
|
1200L
|
1600L
|
2400L
|
3200L
|
|
|
|
Discharging volume
|
500L
|
750L
|
1000L
|
1500L
|
2000L
|
|
|
Aggregate System
|
Aggregate bin
|
5m³×2
|
6m³×2
|
7m³×2-4
|
8m³×2-4
|
10m³×2-4
|
|
|
|
Cylinder
|
SCU φ100
|
SCU φ100
|
SCU φ100
|
SCU φ100
|
SCU φ100
|
|
|
Computer ControlSystem
|
Industrial control
computer |
1 set
|
1 set
|
1 set
|
1 set
|
1 set
|
|
|
|
Display
|
15” liquid crystal LCD
|
15” liquid crystal LCD
|
15” liquid crstal LCD
|
17” liquid crystal LCD
|
17” liquid crystal LCD
|
|
