Quick Details
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Hitrees
-
Dimension(L*W*H):
-
6.14*1.44*2.1m
-
Weight:
-
2000 KG
-
Product name:
-
Tunnel Freezer
-
Material:
-
Stainless Steel 304
-
Capacity:
-
100kg/h
-
Cooling system:
-
Evaporated Cooling System
-
Function:
-
Individual Quick Freezing
-
Refrigerent:
-
R22/R404A
-
Freezing time:
-
Adjusted
Quick Details
-
Voltage:
-
customized
-
Power:
-
customized
-
Cooling Capacity:
-
100kg/h
-
Place of Origin:
-
Tianjin, China
-
Brand Name:
-
Hitrees
-
Dimension(L*W*H):
-
6.14*1.44*2.1m
-
Weight:
-
2000 KG
-
Product name:
-
Tunnel Freezer
-
Material:
-
Stainless Steel 304
-
Capacity:
-
100kg/h
-
Cooling system:
-
Evaporated Cooling System
-
Function:
-
Individual Quick Freezing
-
Refrigerent:
-
R22/R404A
-
Freezing time:
-
Adjusted

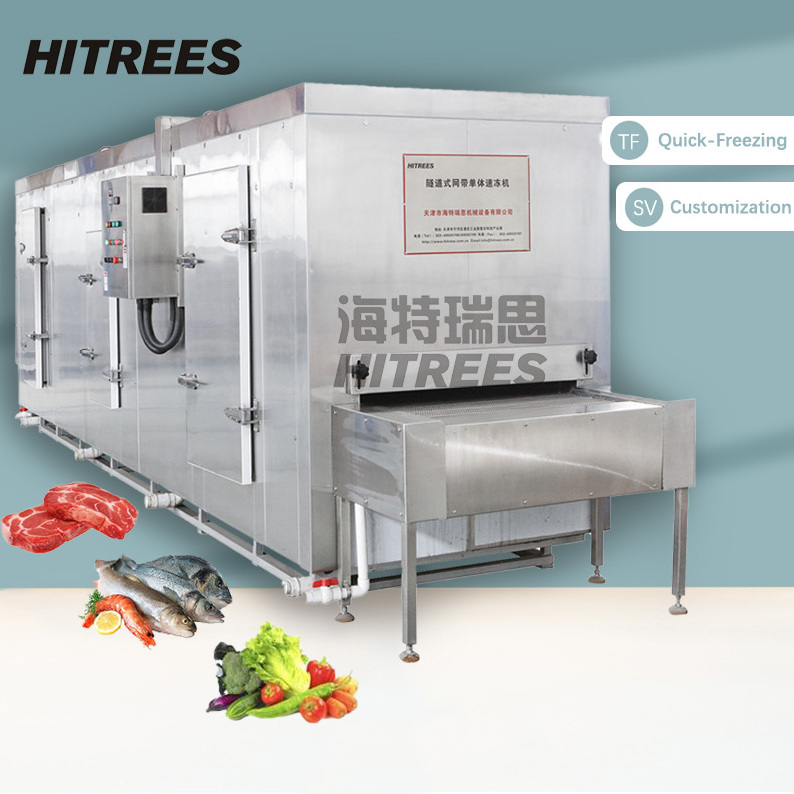

New IQF tunnel freezer for pea/okra/potato
Product Application
Tunnel freezer
is a quick freezing machine with simple structure and reliable operation. It is widely used for IQF freezing of aquatic products, pastry, meat products, dairy products, prepared foods and etc. It can be
customized
on design and manufacturing
according to customers' demands and room limitation.
Main Features
(1) Stainless steel conveyor belt;
(2) PUF panelslaminated by stainless steel sheet both sides;
(3) The inlet device, outlet device and all structure parts are made of stainless steel;
|
SPECIFICATIONS FOR TUNNEL FREEZER
|
|
|
|
|
|
|||
|
Model:TF Series
|
Output
|
Installed Power
|
Referigeration Consumption
|
Dimension
L*W*H
|
Belt Width
|
|||
|
TF100
|
100kg/h
|
2.25kw
|
15kw
|
7.4*1.5*2.2m
|
1000mm
|
|||
|
TF150
|
150kg/h
|
2.95kw
|
21kw
|
8.0*1.8*2.3m
|
1300mm
|
|||
|
TF200
|
200kg/h
|
4.5kw
|
30kw
|
10.2*1.8*2.3m
|
1300mm
|
|||
|
TF300
|
300kg/h
|
6.5kw
|
43.5kw
|
11.2*2.3*2.3m
|
1800mm
|
|||
|
TF500
|
500kg/h
|
10.3kw
|
75kw
|
13.5*3.0*2.5m
|
2500mm
|
|||
|
TF1000
|
1000kg/h
|
19.8kw
|
142kw
|
22.9*3.0*2.5m
|
2500mm
|
|||
|
TF1500
|
1500kg/h
|
28.6kw
|
225kw
|
26.4*3.5*2.5m
|
3000mm
|
|||
