Quick Details
-
Model Number:
-
Fjx 650
-
Name:
-
Cantilever Twist Single Machinery
-
Motor brand:
-
First level in domestic
-
Inverter brand:
-
Inovance or Siemens
-
Certification:
-
CE, ISO 9001:2008
-
PLC Brand:
-
Siemens or Mistubish
Quick Details
-
Use:
-
Twisting
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
Far East
-
Model Number:
-
Fjx 650
-
Name:
-
Cantilever Twist Single Machinery
-
Motor brand:
-
First level in domestic
-
Inverter brand:
-
Inovance or Siemens
-
Certification:
-
CE, ISO 9001:2008
-
PLC Brand:
-
Siemens or Mistubish
Professional pvc wire cable pipe machinery extrusion linewith CE certificate

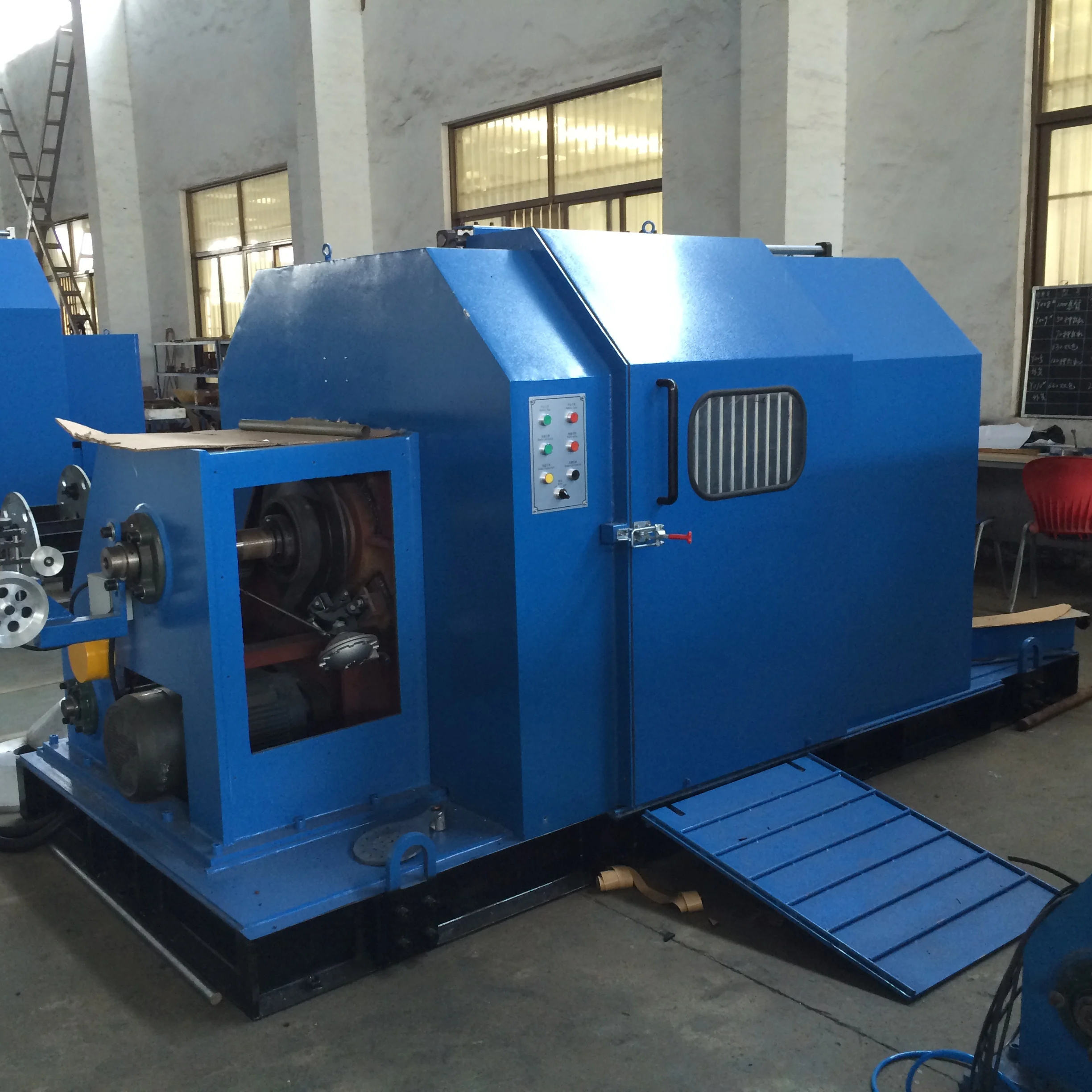

Single twist bunching machine cat 5/6/7 data cables making PLC Cantilever Electric Wire Single Twisting Machine Manufacturer
Application:
The cantilever machine suit for various power wire, CAT5,ultraCAT5 and CAT6 data cable,commumication cable and other twist.
Performance and features :
The series of equipment consist of PLC procedure, frequency conversion speed-regulation control, pneumatic control, cantilever cabling twist motion, bobbin capstan take-up motion and reciprocating traverse motion are dual controlled by mechanical linkage and pneumatic linkage,so, the excellent synchronous performance of the unit from starting. Normal opeartion,slow stop and emergency stop status, in addition,the stable twist pitch is also ensure with small errorsat the same time. Such cabling series are unique in the design of production line.Advanced in technology and it is the prefered product for the seriesproduction of cabling and wrapping.
Optional parts :
1.7 head (Multiple-set)active pay-off
2.Multiple-head passive tension pay-off
3.Multiple-head back twisting machine
4.Multiple-head active back twisting machine
5.Side wrapping frame(verticle wrapping machine)
According to the take-up bobbin,it has 630mm,800mm,1000mm,1250mm four specification
Technoical parameter:
| Machine type | JCJX-630 | JCJX-800 | JCJX-1000 | JCJX-1250 |
| Pay-off bobbin dia. | 400-500-630mm | 400-500-630mm | 400-500-630mm | 400-500- 630mm |
| Take-up bobbin dia. | 630mm | 800mm | 1000mm | 1250mm |
| Applicable wire dia. | 0.6-3.0mm | 0.6-3.0mm | 1.0-5.0mm | 1.0-5.0mm |
| MAX. lay-up dia. | 15mm | 20mm | 25mm | 30mm |
| Twisting pitch | 20mm-200mm | 30mm-300mm | 30mm-350mm | 30mm-350mm |
| No.of rotate | 1000r/min | 800r/min | 600r/min | 550r/min |
| Take-up tension | Pneumatic | Pneumatic | Pneumatic | Pneumatic |
| Traversing type | steppless regulation | steppless regulation | steppless regulation | stepless regulation |
| Traversing distance | 2mm-12mm | 3mm-20mm | 3mm-30mm | 3mm-30mm |
| Twisting direction | S /Z | S/Z | S/Z | S/Z |
| Wrapping type | centre/side | centre/side | centre/side | centre/side |
After sales service
A. Pre-sale training:
In order to guarantee the customers are able fully to operate the machine, if the customer need, we can help customer training, includes:
(1) Correct operating mode
(2) Correct maintenance way
(3) Remove simple proble
The buyer provides engineer's roundtrip airplane tickets, board and lodging, the security as well as each person of daily wage $100 .
B. Guarantees
Since the shipment date, 12 month for mechanical part, and 6 month for electrical parts
