Name: Air End
Brand: BAOSI
Original: China
Generally, We usually use BAOSI air end. Secondary choise is HANBELL and TORIN. Price will be changed as your requirement.
- Product Details
- {{item.text}}
Quick Details
-
Dimension(L*W*H):
-
2020*1420*1700 mm
-
Weight:
-
210KG
-
Product name:
-
Screw Air Compressor
-
Cooling method:
-
Air Cooling
-
Motor power:
-
30kw/40hp
-
Working pressure:
-
116psi
-
Capacity:
-
5.0 m3/min
Quick Details
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
SHEN FENG
-
Voltage:
-
220V/380V/415V(customizable)
-
Dimension(L*W*H):
-
2020*1420*1700 mm
-
Weight:
-
210KG
-
Product name:
-
Screw Air Compressor
-
Cooling method:
-
Air Cooling
-
Motor power:
-
30kw/40hp
-
Working pressure:
-
116psi
-
Capacity:
-
5.0 m3/min

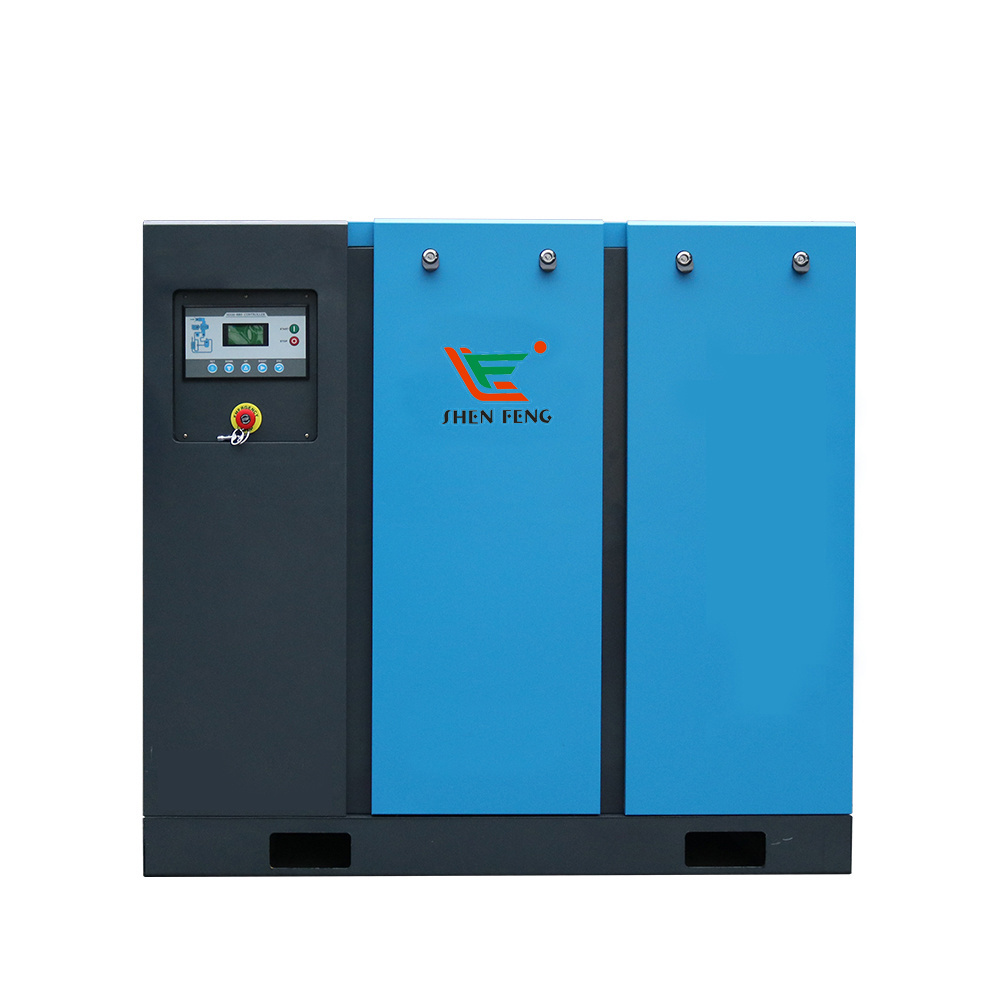

Screw Compressor
SHEN FENG series screw air compressor
SH-series of screw compressors, with a unit displacement ranging from 0.6m'/min to 23.5m'/min and discharge pressure 0.8MPA, include more than 40 kind of various specifications , air-cooled and water-cooled screw compressors, Having competitive price in the market. The products are extensively applied to food, pharmaceutical, textile, instruments, electronics, machinery, printing, chemicals, mining and transportationindustries. By using a large displacement of compressor head, high-performance motor, low speed design, SH-series of screw compressors can offer you the best solutions of air compressors with high cost performance, excellent performance and comfortable services.
|
SH-series screw air compressors
|
|
|
|
|||
|
Common power frequency screw air compressor
|
model: SH-7.5A~SH-175D
|
Kw
|
5.5kw-132kw
|
|||
|
|
Pressure
|
Mpa
|
0.8Mpa
|
|||
|
|
Replacement
|
m³/min
|
0.6-23.5
|
|||
|
Permanent magnet inverter screw compressor
|
model: SH-10DYS~SH-60DYS
|
Kw
|
7.5-45kw
|
|||
|
|
Pressure
|
Mpa
|
0.8Mpa
|
|||
|
|
Replacement
|
m³/min
|
1.2-8.0m³/min
|
|||
|
Variable frequency screw compressor
|
model: SH-10BPD~SH-170BPD
|
Kw
|
7.5-132kw
|
|||
|
|
Pressure
|
Mpa
|
0.8Mpa
|
|||
|
|
Replacement
|
m³/min
|
1.2-23.5m³/min
|
|||
Main Information
1)Top 10 air compressor manufacturer in Shanghai, Founded in 1999,
2) Excellent sales team 35 persons and professional after-sales team 16 persons;
3) 10 years OEM & ODM service experience
4)24 hrs on-line service, engineers and oversea agents technical support after-sales service
5) Our compressors are extensively used for food, pharmaceutical, textile, instrument, electronics, machinery,printing, chemical, mining fields, etc.
Workshop stock
Detailed Images
Machine Parts
Main Features
Name:
Rotor
The role of the rotor is to compress the mixture of air and oil into it and at the same time to get compressed air, which is the most important step in the operation of the air compressor.
Machine Parts
Name:
intake valve
The opening and closing of the intake valve controls whether the air enters the unit, thereby controlling the unit to load and unload. When the unit pressure reaches the set maximum pressure, the intake valve closes, and when the pressure at the outlet of the unit reaches the set minimum pressure, The intake valve opens again and the unit starts loading.
Main Features
Name:
Air filter
The function of air filter is to prevent harmful substances such as dust in air from entering the air compressor. The size of air filter and the quality of paper will directly affect the stability and economy of air compressor.
If you wanna save electricity, We reco mmend you our model PM Variable Frequency screw air compressor.please click the below link.
PM Variable Frequency screw air
compressor
Advantage
Packing & Delivery
Generally, We use plywood case to package the compressor.
