Quick Details
-
Dimensions (L x W x H) (mm):
-
9800*2500*3215
-
Place of Origin:
-
Hubei, China
-
Product name:
-

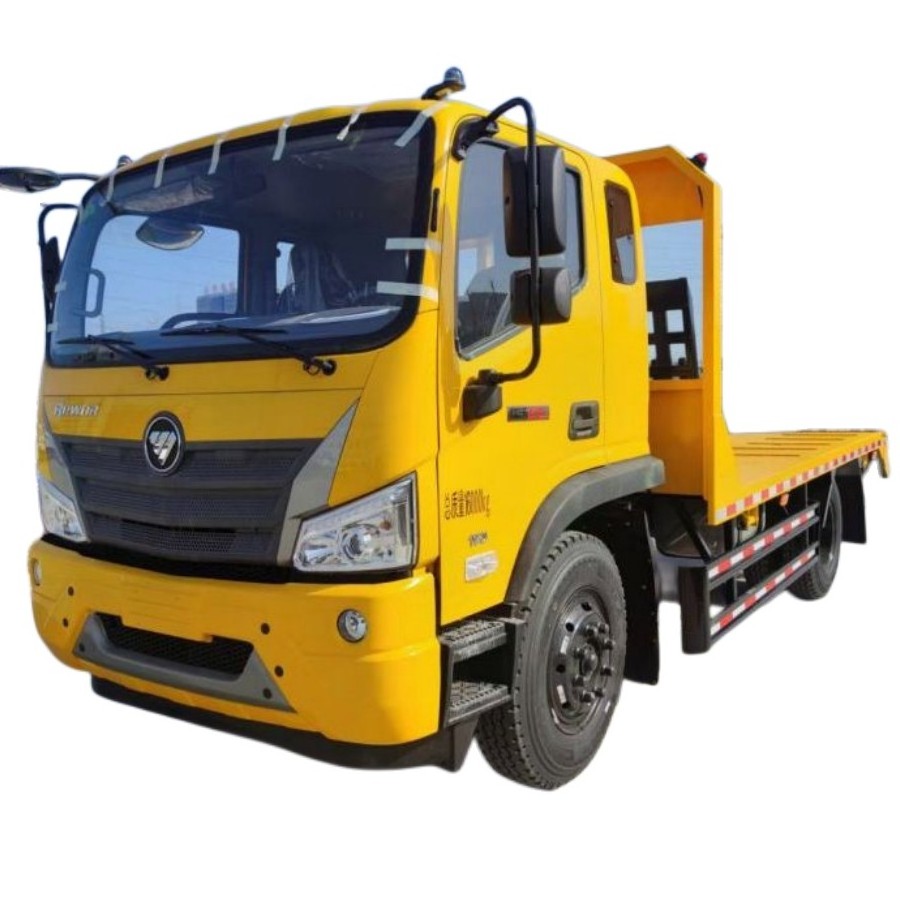

Flatbed Tow Truck
-
Chassis brand:
-
HOWO.DongFeng.FAW.Foton.JAC.Shacman
-
Driving type:
-
LHD RHD
-
Loading capacity:
-
4-30 Ton
-
Keyword:
-
flatbed truck
-
Tires:
-
12.00R20
-
Color:
-
Customer's Requirement
-
Engine:
-
Weichai
-
Emission:
-
Euro2/3/4/5/6
-
Delivery time:
-
45 Days
Quick Details
-
Emission Standard:
-
Euro 3
-
Condition:
-
New
-
Brand Name:
-
CLW
-
Dimensions (L x W x H) (mm):
-
9800*2500*3215
-
Place of Origin:
-
Hubei, China
-
Product name:
-
Flatbed Tow Truck
-
Chassis brand:
-
HOWO.DongFeng.FAW.Foton.JAC.Shacman
-
Driving type:
-
LHD RHD
-
Loading capacity:
-
4-30 Ton
-
Keyword:
-
flatbed truck
-
Tires:
-
12.00R20
-
Color:
-
Customer's Requirement
-
Engine:
-
Weichai
-
Emission:
-
Euro2/3/4/5/6
-
Delivery time:
-
45 Days
Products Description
1. Purpose of 4-50ton flatbed tow truck wrecker/recovery truck/towing truck is used for towing broken cars,vehicle on road.With
increasing ownership of private cars,wreckers are now widly used by government organization or towing company.
2. Optional brand of 4-50 ton flatbed tow truc:howo,Dongfeng,Isuzu,JAC,JMC,Foton,Shacman...
3. Spare parts of 4-50ton flatbed tow truc: Italy brand multi-way valve and balance valve; Gernamy Roxroth technology hydraulic
cylinder and joint; imported sealing element; strengthed checked plate
4. Capacity range of flatbed tow truc:3ton, 4ton, 5ton, 6ton, 8ton, 12ton, 16ton, 20ton, 25ton, 31ton, 40ton, 50ton
Product Paramenters
|
Overall dimensions
|
9800x2500x3215
|
Curb weight
|
10870kg
|
|||
|
Chassis parameters
|
|
|
|
|||
|
Chassis model
|
ZZ1257N4341W
|
Chassis brand
|
FAW /DONGFENG /HOWO/SHACMAN/ISUZU/FUTON
|
|||
|
Overall dimensions
|
9800x2500x3215mm
|
Wheel base
|
3300mm
|
|||
|
Cab
|
Configuration
|
Single cab, power-assisted steering, Air brake system
|
|
|||
|
Engine
|
Model
|
WD615.69, water-cooled,four strokes,6 cylinders in line with water cooling,turbocharged and intercooling, directly injection
|
|
|||
|
|
Emission
|
Euro 2
|
|
|||
|
|
Type
|
4 cylinders, in-line, Diesel engine
|
|
|||
|
|
Rated power
|
66kW /90hp, rated power speed 2800 rpm
|
|
|||
|
|
Displacement
|
3707ml
|
|
|||
|
|
Size
|
12R22.5 11pcs(10+1spare)
|
|
|||
|
|
Number
|
6+1 nos
|
|
|||
|
Drive form
|
4X2 LHD
|
Transmissions
|
6 speed forward 1 reverse.（WLY646）
|
|||
|
Suspension
|
Multi leaf springs
|
Steering device
|
Power assisted steering
|
|||
|
Compactor structure parameters
|
|
|
|
|||
|
Flat dimension
|
6200*2300mm,with container lock
|
|
|
|||
|
Loading system
|
Mechanized, rear loading
|
Lifting system
|
Mechanism of lifting
|
|||
|
Selective configuration
|
PLC electric automatic control, multifunctional rear lifting part, rear handrail and footplate, other shapes of body, rear swing arm, and etc.
|
Dumping direction
|
Rear
|
|||
|
Remark
|
Logo and color can be customized.
|
|
|
|||
