Quick Details
-
Brand Name:
-
TJBC
-
Model Number:
-
QL03D
-
Model:
-
QL03
-
Brand:
-
TJBC
-
TYPE:
-

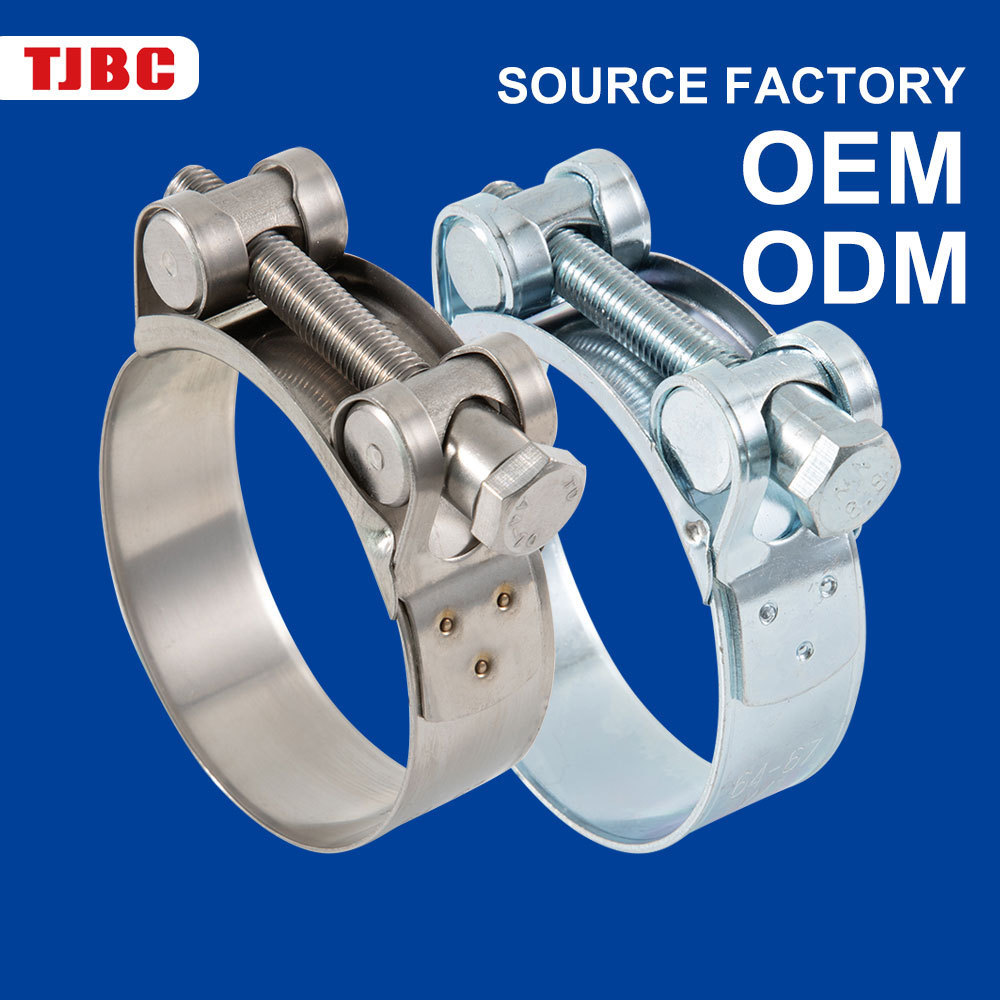

Unitary clamp
-
Nominal diameter:
-
17-19/240-252
-
Fastening diameter:
-
17-19/240-252
-
Texture of material:
-
zinc plated steel/stainless steel
-
Scope of application:
-
auto parts
-
surface treatment:
-
Galvanized
-
Certification:
-
ISO/TUV/BSCI/IATF
Quick Details
-
Measurement system:
-
INCH, Metric
-
Material:
-
Stainless steel, Metal
-
Place of Origin:
-
Tianjin, Tianjin
-
Brand Name:
-
TJBC
-
Model Number:
-
QL03D
-
Model:
-
QL03
-
Brand:
-
TJBC
-
TYPE:
-
Unitary clamp
-
Nominal diameter:
-
17-19/240-252
-
Fastening diameter:
-
17-19/240-252
-
Texture of material:
-
zinc plated steel/stainless steel
-
Scope of application:
-
auto parts
-
surface treatment:
-
Galvanized
-
Certification:
-
ISO/TUV/BSCI/IATF
| Unitary clamp | ||||||||
|
Size mm |
screw |
W1 | W2&W4&W5 |
suggested install torque |
pcs/carton |
|||
|
Item no. |
bandwidth
mm |
Item no. |
bandwidth
mm |
|||||
| 17-19 | M5×40 | QL03A1719 | 0.6×18 | QL03B1719 | QL03D1719 | 0.6×18 | 4.5Nm | 200 |
| 20-22 | M5×40 | QL03A2022 | QL03B2022 | QL03D2022 | 200 | |||
| 23-25 | M5×40 | QL03A2325 | QL03B2325 | QL03D2325 | 200 | |||
| 26-28 | M5×40 | QL03A2628 | QL03B2628 | QL03D2628 | 200 | |||
| 29-31 | M6×55 | QL03A2931 | 0.8×20 | QL03B2931 | QL03D2931 | 0.6×20 | 9Nm | 200 |
| 32-35 | M6×55 | QL03A3235 | QL03B3235 | QL03D3235 | 200 | |||
| 36-39 | M6×55 | QL03A3639 | QL03B3639 | QL03D3639 | 200 | |||
| 40-43 | M6×55 | QL03A4043 | QL03B4043 | QL03D4043 | 100 | |||
| 44-47 | M6×55 | QL03A4447 | 1.2×22 | QL03B4447 | QL03D4447 | 0.8×22 | 100 | |
| 48-51 | M6×55 | QL03A4851 | QL03B4851 | QL03D4851 | 100 | |||
| 52-55 | M6×55 | QL03A5255 | QL03B5255 | QL03D5255 | 100 | |||
| 56-59 | M6×55 | QL03A5659 | QL03B5659 | QL03D5659 | 100 | |||
| 60-63 | M6×55 | QL03A6063 | QL03B6063 | QL03D6063 | 100 | |||
| 64-67 | M8×70 | QL03A6467 | 1.5×22 | QL03B6467 | QL03D6467 | 18Nm | 100 | |
| 68-73 | M8×70 | QL03A6873 | 1.5×24 | QL03B6873 | QL03D6873 | 0.8×24 | 100 | |
| 74-79 | M8×70 | QL03A7479 | QL03B7479 | QL03D7479 | 50 | |||
| 80-85 | M8×70 | QL03A8085 | QL03B8085 | QL03D8085 | 50 | |||
| 86-91 | M8×70 | QL03A8691 | QL03B8691 | QL03D8691 | 50 | |||
| 92-97 | M8×70 | QL03A9297 | QL03B9297 | QL03D9297 | 50 | |||
| 98-103 | M8×70 | QL93A8103 | QL93B8103 | QL93D8103 | 50 | |||
| 1041-12 | M8×80 | QL103A4112 | QL103B4112 | QL103D4112 | 50 | |||
| 113-121 | M8×80 | QL113A3121 | QL113B3121 | QL113D3121 | 50 | |||
| 122-130 | M8×80 | QL123A2130 | QL123B2130 | QL123D2130 | 50 | |||
| 131-139 | M10×90 | QL133A1139 | 1.7×26 | QL133B1139 | QL133D1139 | 1.0×26 | 29Nm | 50 |
| 140-148 | M10×90 | QL143A0148 | QL143B0148 | QL143D0148 | 50 | |||
| 149-161 | M10×110 | QL143A9161 | QL143B9161 | QL143D9161 | 50 | |||
| 162-174 | M10×110 | QL163A2174 | QL163B2174 | QL163D2174 | 25 | |||
| 175-187 | M10×110 | QL173A5187 | QL173B5187 | QL173D5187 | 25 | |||
| 188-200 | M10×110 | QL183A8200 | QL183B8200 | QL183D8200 | 25 | |||
| 201-213 | M10×110 | QL203A1213 | QL203B1213 | QL203D1213 | 25 | |||
| 214-226 | M10×110 | QL213A4226 | QL213B4226 | QL213D4226 | 25 | |||
| 227-239 | M10×110 | QL223A7239 | QL223B7239 | QL223D7239 | 25 | |||
| 240-252 | M10×110 | QL243A0252 | QL243B0252 | QL243D0252 | 25 | |||
|
Material |
Band |
bridge |
Trunnion |
sleeving |
bolt |
| W1 | Zinc plated steel | Zinc plated steel | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| W2 | AISI 430SS | AISI 430SS | Zinc plated steel | Zinc plated steel | Zinc plated steel |
| W4 | AISI 301ss/304ss | AISI 301ss/304ss | AISI 301ss/304ss | AISI 301ss/304ss | A2-70 |
| W5 | AISI 316SS | AISI 316SS | AISI 316SS | AISI 316SS | A4-70 |
