Quick Details
-
Brand Name:
-
CN
-
Model Number:
-
OP-03
-
Height:
-
3000mm~6000mm
-
Width:
-
600mm~1200mm
-
Track and Frame:
-
Aluminum stainless steel
-
Operation way:
-
Manual or automatic
-
Door panels:
-
Single or double glazed tempered glass or laminated glass
-
Sound insulation:
-
38-50dB
-
Power:
-
AC150V~250V
-
Floor guide track:
-
optional
-
Up and bottom seal:
-
optional
-
Door Panel Weight:
-
Max. 750KG
Quick Details
-
Application:
-
Home Office, Hotel, Apartment, Office Building, Hospital, School, Mall, Hall, Villa
-
Design Style:
-
Modern
-
Place of Origin:
-
Guangdong, China
-
Brand Name:
-
CN
-
Model Number:
-
OP-03
-
Height:
-
3000mm~6000mm
-
Width:
-
600mm~1200mm
-
Track and Frame:
-
Aluminum stainless steel
-
Operation way:
-
Manual or automatic
-
Door panels:
-
Single or double glazed tempered glass or laminated glass
-
Sound insulation:
-
38-50dB
-
Power:
-
AC150V~250V
-
Floor guide track:
-
optional
-
Up and bottom seal:
-
optional
-
Door Panel Weight:
-
Max. 750KG
Product Description

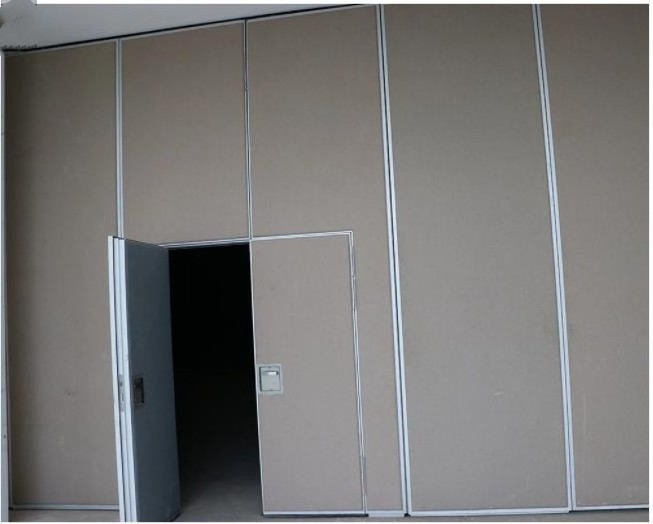

Movable SoundProof Partition Walls Movable push partition walls acoustic sliding partition walls
We service all types of operable walls, room dividers and acoustical divider partitions.
Because movable partition walls are customized products. Each place has different sizes, we make steel framed operable walls and movable partitions of a variety of materials depending on the application for sound transmission, durability, aesthetics, cost and function.
We listen to your goals, understand your needs, provide one-on-one private custom services, make recommendations according to your actual situation, provide professional design and contractor to coordinate building codes, structural and electrical requirements.
Movable Walls System
The movable walls are generally made up of several parts, such as track, horizontal wheel, sealing strip, an outer frame, datum plane material, sound insulation material, transmission rod, sealant strip and so on.
1. Track: the material is made of 6063-T6 anodic alumina, which is used for lifting and hanging screens.
2, Double level hoist: roller material for poly-formaldehyde, wire rod material 45 tempered steel, bearing hanging screen, in the horizontal plane can do any angle rotation, can pass the pulley through the road L, T, X intersection.
3, Hanging wheel seat: material is A3 steel, connecting double horizontal lifting wheel and screen function.
4. Upper pressing strip: anodized alumina, sealing the gap between the screen and the ground and smallpox, and sound insulation as a fixed function.
5, Sealant strip: PVC PVC material, the surface color is black, start sealing, sealing light, contact wall buffering function.
6, Datum panel material: medium density fiberboard, all conform to GB/T11718-1999.
7, Soundproof cotton: the adoption of PAR sound absorbing glass fiber, fire resistance, thermal resistance and noise reduction coefficient.
8. Frame seals: anodized alumina, vertical locking, sealing the narrow gaps from the screen border.
9, Telescopic mechanism: material is standard 45 steel and spring steel, pressure spring operation, can automatically adjust thegap between the screen and the ground.
10, Stirring hand bar: material is standard 45 steel, used for operation up and down, left and right telescopic mechanism.
11, Cover: the material is standard 45 steel, the surface is black chrome plated, built-in spring, protect the rod device.
The movable walls are generally made up of several parts, such as track, horizontal wheel, sealing strip, an outer frame, datum plane material, sound insulation material, transmission rod, sealant strip and so on.
1. Track: the material is made of 6063-T6 anodic alumina, which is used for lifting and hanging screens.
2, Double level hoist: roller material for poly-formaldehyde, wire rod material 45 tempered steel, bearing hanging screen, in the horizontal plane can do any angle rotation, can pass the pulley through the road L, T, X intersection.
3, Hanging wheel seat: material is A3 steel, connecting double horizontal lifting wheel and screen function.
4. Upper pressing strip: anodized alumina, sealing the gap between the screen and the ground and smallpox, and sound insulation as a fixed function.
5, Sealant strip: PVC PVC material, the surface color is black, start sealing, sealing light, contact wall buffering function.
6, Datum panel material: medium density fiberboard, all conform to GB/T11718-1999.
7, Soundproof cotton: the adoption of PAR sound absorbing glass fiber, fire resistance, thermal resistance and noise reduction coefficient.
8. Frame seals: anodized alumina, vertical locking, sealing the narrow gaps from the screen border.
9, Telescopic mechanism: material is standard 45 steel and spring steel, pressure spring operation, can automatically adjust thegap between the screen and the ground.
10, Stirring hand bar: material is standard 45 steel, used for operation up and down, left and right telescopic mechanism.
11, Cover: the material is standard 45 steel, the surface is black chrome plated, built-in spring, protect the rod device.
Specification
Panel Height Maximum16000mm
Panel Width Minimum 600mm, Maximum 1200mm
Thickness of panels 65mm/85mm/100mm/125mm
Weight average 32.00Kg/m2 for whole panels
Rail loading Maximum 450KG/m
Acoustic Rating 25-53db
Sound insulation material: Below 47 dB, fire-proof sound insulation cotton, 80-120KG/M³;
47 dB or above: 1.2mm-1.5mm double-sided steel plate and fire-proof sound insulation cotton100-150KG/M³
Datum plane material: 12mm thick MDF board or Glass-mg board, colour steel board, melamine board and fire resistant plasterboard.
Finished: anodized or electrophoresis or powder coating to all exposed aluminum components available in a wide range of standard colors as required
Hardware and accessory: high-quality stainless steel handle, glass clips, aluminum track, and hinge. More details please contact our salespersons.
Heat insulation and energy saving: excellent insulation performance. According to different occupancy rate, large space can be divided into small space and transparent, so as to reduce air conditioning power consumption.
Efficient fire retardant: the use of efficient fire-resistant materials, fire performance is good;
Beautiful and generous: arbitrary decoration on the surface, which can be decorated with indoor decoration effect.
Designed to suit all applications the range is suitable for use in areas where flexibility is equally as important as performance,
for instance:
» Office interiors and meeting rooms
» Conference and function suites
» Education establishments
» Exhibition centers
» Hotels and restaurants
» High clean factories
Panel Width Minimum 600mm, Maximum 1200mm
Thickness of panels 65mm/85mm/100mm/125mm
Weight average 32.00Kg/m2 for whole panels
Rail loading Maximum 450KG/m
Acoustic Rating 25-53db
Sound insulation material: Below 47 dB, fire-proof sound insulation cotton, 80-120KG/M³;
47 dB or above: 1.2mm-1.5mm double-sided steel plate and fire-proof sound insulation cotton100-150KG/M³
Datum plane material: 12mm thick MDF board or Glass-mg board, colour steel board, melamine board and fire resistant plasterboard.
Finished: anodized or electrophoresis or powder coating to all exposed aluminum components available in a wide range of standard colors as required
Hardware and accessory: high-quality stainless steel handle, glass clips, aluminum track, and hinge. More details please contact our salespersons.
Heat insulation and energy saving: excellent insulation performance. According to different occupancy rate, large space can be divided into small space and transparent, so as to reduce air conditioning power consumption.
Efficient fire retardant: the use of efficient fire-resistant materials, fire performance is good;
Beautiful and generous: arbitrary decoration on the surface, which can be decorated with indoor decoration effect.
Designed to suit all applications the range is suitable for use in areas where flexibility is equally as important as performance,
for instance:
» Office interiors and meeting rooms
» Conference and function suites
» Education establishments
» Exhibition centers
» Hotels and restaurants
» High clean factories
