Factory price hand operated hydraulic pump PAD13

Factory price hand operated hydraulic pump PAD13

FOB Reference Price: Get Latest Price

≥2 Pieces

US $175

≥50 Pieces

US $165

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Type:: One speed double acting

Oil Capacity:: 3.8L

Oil outlet interface:: 3/8''-18NPTF

Air inlet interface:: 1/4''-18NPTF

Fuel:: 32# hydraulic oil

Air consumption:: 255 (L/min)

Oil Tank material:: Steel reservoir

Application:: automobile maintenance,metallurgy,petroleum and chemical industry

Rated pressure:: 70 (Mpa)

Quick Details

Warranty:: 1 year

Place of Origin:: Shandong, China

Product name:: Double acting air hydraulic pump PAD13

Type:: One speed double acting

Oil Capacity:: 3.8L

Oil outlet interface:: 3/8''-18NPTF

Air inlet interface:: 1/4''-18NPTF

Fuel:: 32# hydraulic oil

Air consumption:: 255 (L/min)

Oil Tank material:: Steel reservoir

Application:: automobile maintenance,metallurgy,petroleum and chemical industry

Rated pressure:: 70 (Mpa)

Product Overview

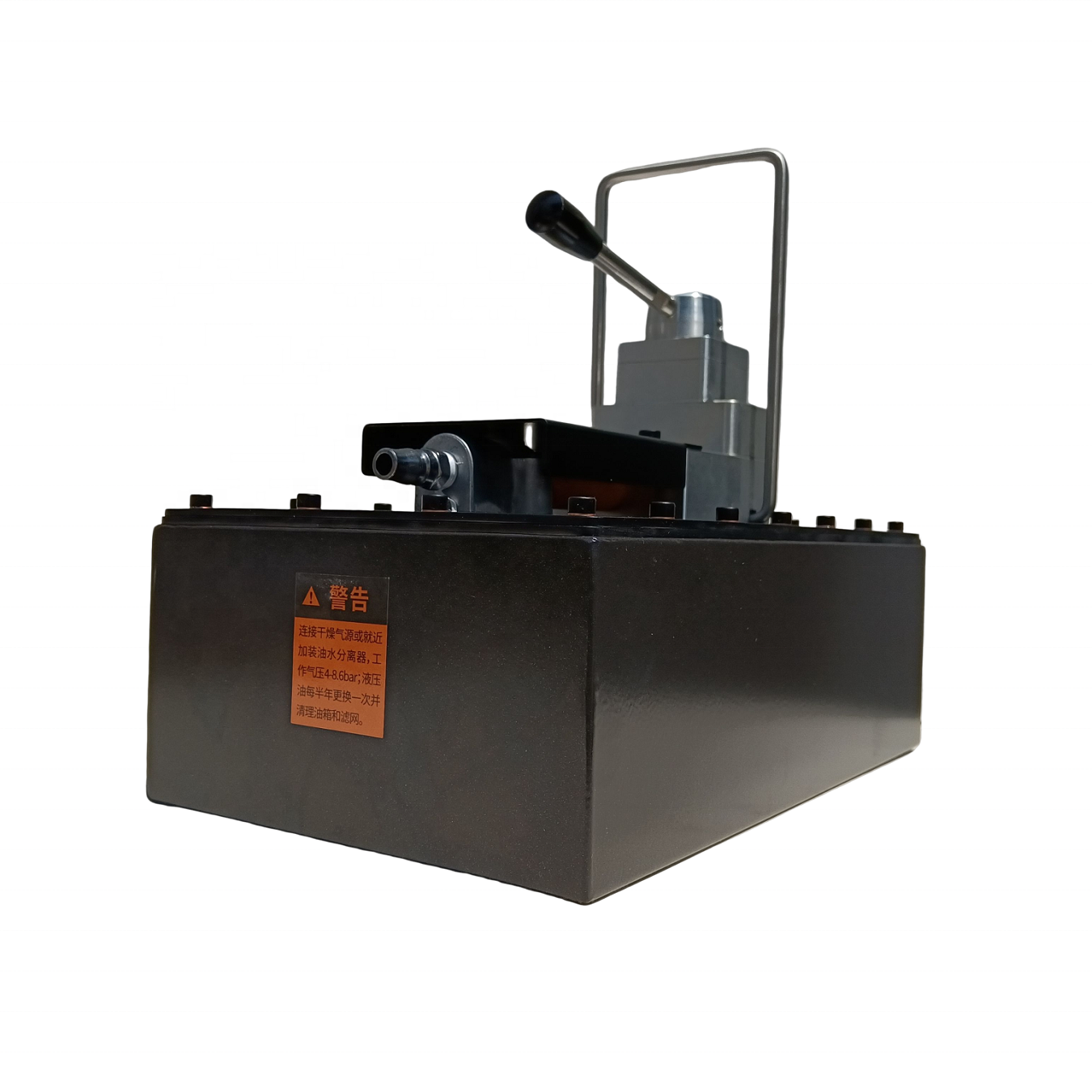

PAD13 manual pneumatic hydraulic pump

Name:Double acting pneumatic hydraulic pump

Function type:single-speed double-acting

Drive mode:pneumatic Operation mode:pedal or hand operated.

Medium:L-HM32#or L-HV32#anti-wear hydraulic oil

Applicable tools:suitable for double-acting cylinders and hydraulic tools.Can also be used for single-acting cylinders and hydraulic tools.

Applicable fields:Widely used in automobile maintenance,metallurgy,petroleum,chemical industry,electric power,lifting,construction,mining,railway,ship and many other
industries.

FEATURES AT A GLANCE

1. Driven by compressed air, there is no danger of electric sparks or flames, which can be used in flammable and explosive working
environments.
2. The structure is compact, light and easy to carry with a low price.
3. Low air consumption and low operating cost.
4. High-strength fuel tank and special hydraulic oil can adapt to harsh working environment.
5. The rated pressure is 70MPa, and the built-in safety relief valve is used for overload protection.

PRODUCT SPECIFICATIONS

No	Item	Data
1	Oil tank capacity (L)	3.9
2	Available oil capacity (L)	3.8
3	Air pressure (Mpa)	6-8
4	Air consumption (L/min)	255
5	Rated pressure (Mpa)	70
6	No-load flow (L/min)	1.16
7	load flow (L/min)	0.15
8	Air inlet interface	1/4''-18NPTF
9	Oil outlet interface	3/8''-18NPTF

Feature:

1. The threaded hole of the oil outlet is 3/8"NPTF, , which is convenient for oil pipe or joint connection and sealing.
2. There are threaded mounting holes at the bottom of the fuel tank for easy installation and fixation.
3. High-quality seals ensure stable performance and long service life of the pump; simple maintenance and low cost of use.
4. The accessories are with high processing precision, good sealing performance, no leakage and good pressure-holding performance.
