- Product Details
- {{item.text}}
Quick Details
-
Dimensions(L*W*H):
-
1000*1450*1200mm
-
Weight:
-
700 KG, 700kg
-
Print Speed:
-
1500-3500 pcs/h
-
Product name:
-
Cloth bag Printer
-
Max enter width:
-
840mm
-
Max printing width:
-
650mm
-
Max printing length:
-
1200mm
-
Rubber letterpress thickness:
-
4-6mm
-
Printing roller diameter:
-
420mm
-
Printing speed pcs/h:
-
1500-3500
-
Color:
-
Cutomized
-
Motor power:
-
0.75kw
Quick Details
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
YW
-
Voltage:
-
380V/50HZ
-
Dimensions(L*W*H):
-
1000*1450*1200mm
-
Weight:
-
700 KG, 700kg
-
Print Speed:
-
1500-3500 pcs/h
-
Product name:
-
Cloth bag Printer
-
Max enter width:
-
840mm
-
Max printing width:
-
650mm
-
Max printing length:
-
1200mm
-
Rubber letterpress thickness:
-
4-6mm
-
Printing roller diameter:
-
420mm
-
Printing speed pcs/h:
-
1500-3500
-
Color:
-
Cutomized
-
Motor power:
-
0.75kw

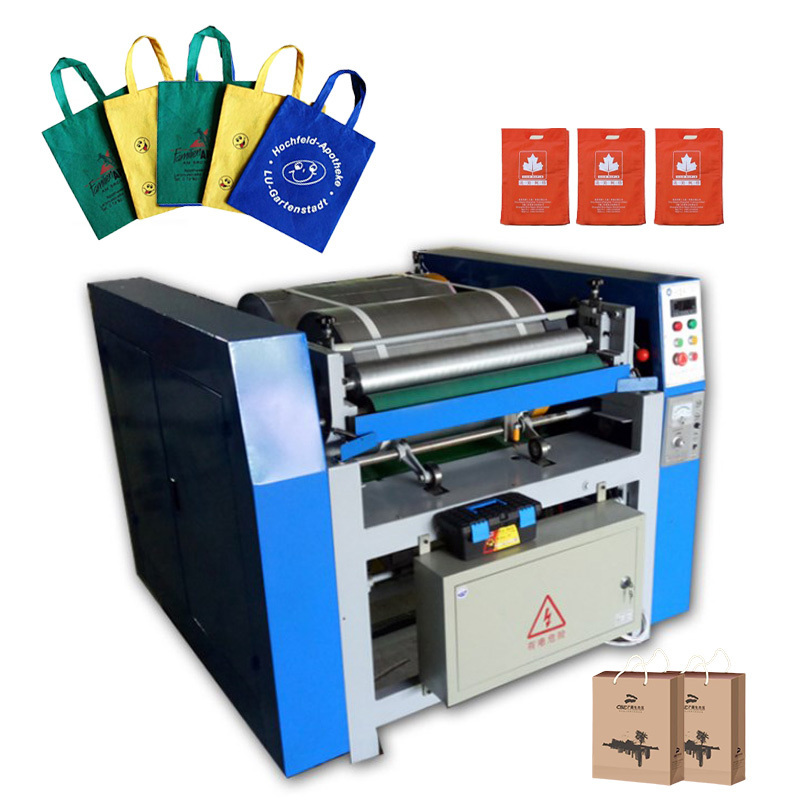

polythene jute pp mylar plastic Offset Tote Cloth Non Woven Paper coffee bag bags Printing Printer Machine
printing machine random accessories
1. Relay: 1
2. Photoelectric switch: 1
3. Press the proximity switch: 1
4. Solenoid valve: 1
5. Allen key: 1 set
6. Phillips screwdriver: 1
7. Open-end wrench: 1
As for the resin or rubber plate and wash ink,we can also supply for you according your need.
Printing machine with dryer:
Product information :
It is wide used for printing packing bag of chemicals, chemicals fertilizer, grain, feedstuff, cement, etc.
The control part of this machine adapts photoelectricity control, electromagnetic regulating, automatic imprinting on-off device, electronic automatic numerating. The power adapts stepless speed control in order to reach stable operation and wide speed control range. The machine is compact, easy to adjust and operate and maintain.
Features :
1.Advanced (plc) controller, optomagnetic position locate & Pneumatic presser automatic clutch
2.Automatic Counting Linkage Work,1000-3500pcs/H
3.Adopt frequency controller ,more steady&power saving.
4.Advanced anilox roller ,automatic ink pump printing ink circulating system. Make Ink More Uniform &Plump
5.Plate print 360°designing,make printer more accurate.
|
Model |
Y W -1 |
Y W -2 |
Y W -3 |
Y W -4 |
Y W -5 |
|
Max enter width |
840mm |
840mm |
840mm |
840mm |
|
|
Max printing width |
650mm |
650mm |
650mm |
650mm |
650mm |
|
Max printing length |
1200mm |
1200mm |
1200mm |
1200mm |
1200mm |
|
Rubber letterpress thickness |
4-6mm |
4-6mm |
4-6mm |
4-6mm |
4-6mm |
|
Printing roller diameter |
420mm |
420mm |
420mm |
420mm |
420mm |
|
Printing speed pcs/h |
1500-3500 |
1500-3500 |
1500-3500 |
1500-3500 |
|
|
1 |
2 |
3 |
4 |
5 |
|
|
Motor power |
1.5kw |
1.5kw |
2.2kw |
3kw |
|
|
Dimension(mm) |
1000*1450*1200 |
1500*1450*1200 |
2100*1450*1200 |
2800*1450*1200 |
3500*1450*1200 |
|
Weight |
700kg |
900kg |
1100kg |
1300kg |
1500kg |
