Quick Details
-
Brand Name:
-
QD
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380V, 220v/380v
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
2.2*0.7*1.1m
-
Weight:
-
110 KG
-
Machinery Function:
-
Fruit/vegetable sorter/grader
-
Output product name:
-
Same size fruit/vegetable
-
Name:
-
Industrial Fruit Sorting Grading Machine Orange
-
power:
-
7.5kw
-
Capacity:
-
1-900kg/h
-
Key words:
-
fruit and vegetable sorting machine
-
material:
-
stainless steel 304
-
Application:
-
vegetable and fruit
-
MOQ:
-
1
-
Round fruits like:
-
apple orange tomato etc
-
Grade:
-
Custmized 3-7 Grades
-
Certification:
-
ISO CE
Quick Details
-
Raw material:
-
Fruit, Vegetables, Nuts
-
Marketing Type:
-
New Product 2021
-
Model Number:
-
QDFJ-2-9
-
Brand Name:
-
QD
-
Place of Origin:
-
Henan, China
-
Voltage:
-
220/380V, 220v/380v
-
Power:
-
0.75kw
-
Dimension(L*W*H):
-
2.2*0.7*1.1m
-
Weight:
-
110 KG
-
Machinery Function:
-
Fruit/vegetable sorter/grader
-
Output product name:
-
Same size fruit/vegetable
-
Name:
-
Industrial Fruit Sorting Grading Machine Orange
-
power:
-
7.5kw
-
Capacity:
-
1-900kg/h
-
Key words:
-
fruit and vegetable sorting machine
-
material:
-
stainless steel 304
-
Application:
-
vegetable and fruit
-
MOQ:
-
1
-
Round fruits like:
-
apple orange tomato etc
-
Grade:
-
Custmized 3-7 Grades
-
Certification:
-
ISO CE

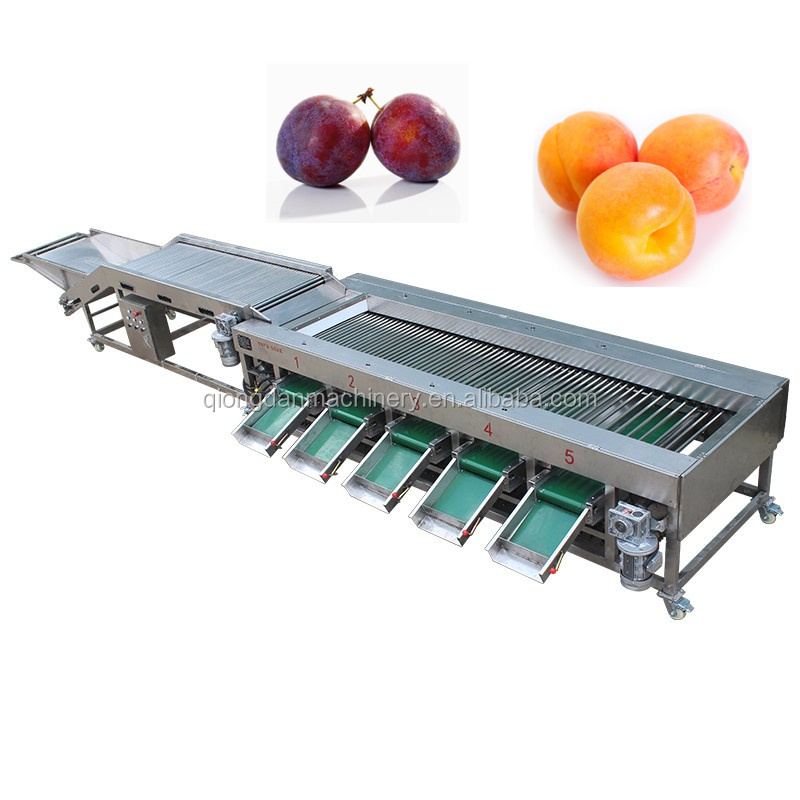

Industrial Fruit Sorting Grading Machine Orange Apple Bear Kiwi Onion Melon Sorter
Stainless steel Weight classifier Machine for Potato Tomato Garlic Chili Pepper Onion Carrot Cucumber Mushroom
Nuts Grading machine for Hazelnut Macadamia Walnut Chestnut Cashew nut
Description of Industrial Fruit Sorting Grading Machine Orange Apple Bear Kiwi Onion Melon Sorter
QD series fruit and vegetable grading machine is my company draw extensively on domestic and foreign fruit and vegetable grading machines for features, design, and manufacture of machine. It is mainly used for grading work onions, potatoes, fruit, tianma, orange, lemon, apple, peach, litchi, kiwi fruit, mushroom, mango, and other materials.
The machine uses high-quality 304 stainless steel, equipment beautiful appearance, easy to install, operate. Environmental health, safety, and reliability, high efficiency. It is the classification device of choice.
This equipment is mainly composed of the drum and the frame body composition, the inner cylinder with a screw feeding device, speed grade(Drum rotational speed) by the inverter control, adjustable speed.
Working Principle of Industrial Fruit Sorting Grading Machine Orange Apple Bear Kiwi Onion Melon Sorter
Fruit size sorting machine uses the diameter-control principle to sort the size of fruit. In the same direction with a uniform walking silica gel conveyor belt in the walk gradually away from the distance between the belt with the gradual expansion of the graded potatoes from small to large were leaked, the advantages of large yield, product no damage.
Feature of Industrial Fruit Sorting Grading Machine Orange Apple Bear Kiwi Onion Melon Sorter
1. This is a multi-funcitonal machine, which has a wide range, easy to move and repair.
2. All parts contact with fruits are thickened and soft, the classification process not cause secondary damage to the fruit.
3. Fruit sorting machine measurement error is small, high sensitivity, stable and reliable.
4. Grades quantity is adjustable, the grade size can be adjusted.
5. Sorting speed can be adjusted,high efficiency, large output.
6. Fruit sorting machine has the automatic protection function, prevent reverse and misuse damage to the equipment.
7. Working track adopts food grade silicone belt, which is full of elasticity, non-toxic and harmless, and resistant to aging.
Parameter of Industrial Fruit Sorting Grading Machine Orange Apple Bear Kiwi Onion Melon Sorter
|
Model |
QDFJ-2-9 |
QDFJ-2-11 |
QDFJ-2-1 3 |
QDFJ-2-1 5 |
||
|
Track qty |
9 |
11 |
13 |
15 |
||
|
Grading qty |
3-6 (Adjustable) |
|||||
|
Suitable size |
Diameter 0.5-4.5cm (Adjustable) / Diameter 5-9cm (Adjustable) |
|||||
|
Power |
0.75kw |
0.75kw*2 |
0.75kw*2 |
0.75kw*2 |
||
|
Capacity |
0.5-1t/h |
1-1.5t/h |
1-1.5t/h |
1.5-3t/h |
||
|
Machine size |
2.2*0.7*1.1m |
2.2*0.7*1.1m |
2.2*0.7*1.1m |
2.2*1.3*1.1m |
||
|
Weight |
110kg |
110kg |
110kg |
260kg |
||
