Quick Details
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongyou
-
Year:
-
2021
-
Voltage:
-
220
-
Dimension(L*W*H):
-
970*930*2920
-
Weight (T):
-
10 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
45 kw
-
Marketing Type:
-
New Product
-
Product name:
-
Hydraulic Press Machine 400 ton
-
Keyword:
-
Hydryalic Press
-
Color:
-
Customizable
-
Power Source:
-
Hydraulic
-
Function:
-
Stamping Metal Product
-
Style:
-
Popular
-
Type:
-
Four Columns
-
Usage:
-
Pressing Metal Sheet
-
Material:
-
Steel Material
-
Model:
-
YQ32-400
Quick Details
-
Machine Type:
-
Four-column Three-beam Hydraulic Press
-
Slide Stroke (mm):
-
800
-
Ejector Force (kN):
-
630
-
Return Force (kN):
-
200 kN
-
Place of Origin:
-
Shandong, China
-
Brand Name:
-
zhongyou
-
Year:
-
2021
-
Voltage:
-
220
-
Dimension(L*W*H):
-
970*930*2920
-
Weight (T):
-
10 T
-
Model Number:
-
YQ32
-
Motor Power (kw):
-
45 kw
-
Marketing Type:
-
New Product
-
Product name:
-
Hydraulic Press Machine 400 ton
-
Keyword:
-
Hydryalic Press
-
Color:
-
Customizable
-
Power Source:
-
Hydraulic
-
Function:
-
Stamping Metal Product
-
Style:
-
Popular
-
Type:
-
Four Columns
-
Usage:
-
Pressing Metal Sheet
-
Material:
-
Steel Material
-
Model:
-
YQ32-400

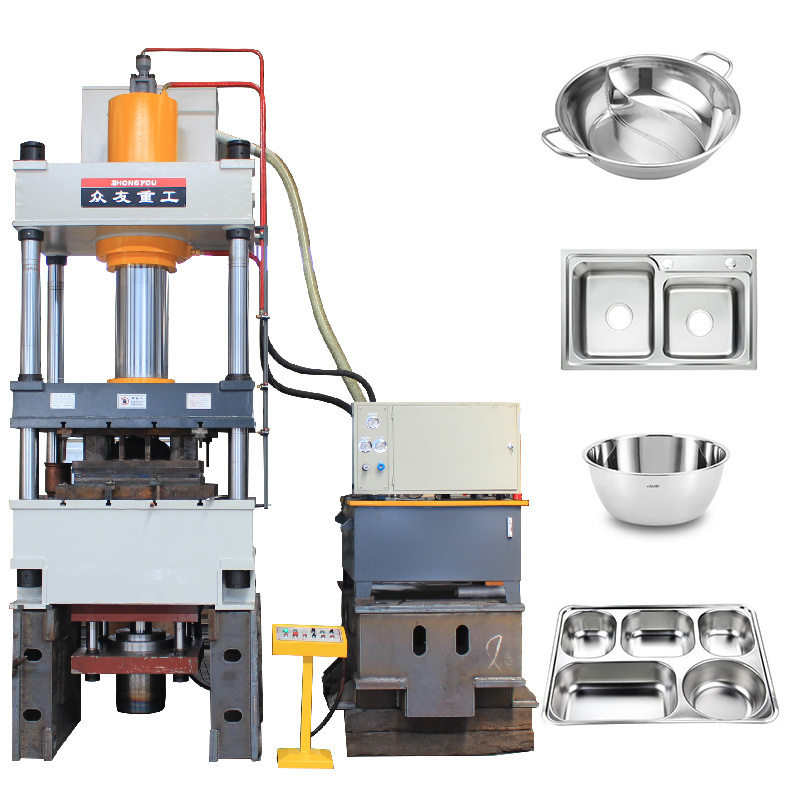

400ton Stainless Steel/Aluminum Pot Making Deep Drawing Press Machine price
Products Description
This four column hydraulic press machine adopts a three-beam and four-column structure with a hydraulic cylinder on the top and a hydraulic cushion on the bottom.It adopts imported oil pump, servo motor and driver to control the action, and the system is equipped with imported high-quality pressure sensor and displacement control ruler, which can accurately adjust the control stroke.
1. A new generation of CNC hydraulic presses, four-column guided body steel plate welding. Applicable technology, SMC.DMC.BMC plastic products molding.
2.servo motor with high-precision oil pump drive segmentation control pressure, speed, exhaust.
3. PLC programming, touch screen display, control.
4.displacement, speed, pressure sensor precision control, arbitrary adjustment on the industrial touch screen.
5.provide remote network services, the machine automatically alarms to indicate failure and maintenance.
Details Images
PLC to realize fully automatic operation, improve efficiency and reduce labor.
We are equipped with a large oil tank to meet the normal use of the machine, complete the work efficiently, and are equipped with lubricating oil and oil pipes to improve work efficiency.
Product Paramenters
|
Parameters
|
Unit
|
YQ32-400
|
YQ32-630
|
YQ32-800
|
|
Nominal Force
|
KN
|
4000
|
6300
|
8000
|
|
System Pressure
|
Mpa
|
25
|
25
|
25
|
|
Slider Max.opening height
|
mm
|
1250
|
1500
|
1800
|
|
Slider effective stroke
|
mm
|
800
|
900
|
1000
|
|
Effective worktable size（L.RxF.B)
|
mm
|
1260*1160
|
1600*1600
|
1500*1500
|
|
Nominal force of upper ejection clinder
|
KN
|
630
|
1000
|
1000
|
|
strok of upper ejection cylinder
|
mm
|
300
|
300
|
350
|
|
Slider descending speed
|
mm/s
|
120
|
150
|
150
|
|
Slider pressing speed
|
mm/s
|
8-15
|
10-22
|
10-20
|
|
Slider return speed
|
mm/s
|
90
|
120
|
120
|
Application
This series of hydraulic presses are suitable for drawing,bending,flanging,cold extruding,blanking precesses for materials,straightening,press-in and forming precesses for powder and abrasive preducts,plastic and insulation materials.
Product packaging
Packaging Details:
Internal plastic moisture-proof anti-rust packaging,
External wooden packaging,
Exclusive container transport.
Delivery Time for High Speed Four Column Hydraulic Press Machine for Oil Filter:
Shipped in 30 days after payment
