Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine
Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine
Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine
Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine
Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine
Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine
Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine
Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine

Birds leg rings engraving machine bird ring / pigeon ring laser marking / 20w fiber laser marking machine

FOB Reference Price: Get Latest Price
≥1 Sets
US $1680
Free Inquiry
Customized Request
  • Product Details
  • {{item.text}}

Quick Details

Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Zhejiang, China
Brand Name:
Holylaser
Marking Head Brand:
SINO
Weight (KG):
130 KG
Core Components:
Laser Source
Laser brand:
Raycus/Max
Marking Speed:
8000mm/s
Laser Power:
20W/30W/50W/100W
Marking Depth:
0-1mm
Marking material:
Metal Jewelry Silver Gold
Working area:
110*110mm /175*175mm/ 200*200mm
Support Format:
DXF PLT JPG BMP PNG
Beam Quality:
M2 <1.5
Laser head:
Sino-galvo Laser Head
Power supply:
110V/220V 10% 50Hz/60Hz

Quick Details

Working Accuracy:
0.01mm
Graphic Format Supported:
AI, BMP, Dst, DXF, LAS, PLT
Laser Type:
Fiber Laser
Cooling Mode:
Air Cooling
Control Software:
EZCAD
Place of Origin:
Zhejiang, China
Brand Name:
Holylaser
Marking Head Brand:
SINO
Weight (KG):
130 KG
Core Components:
Laser Source
Laser brand:
Raycus/Max
Marking Speed:
8000mm/s
Laser Power:
20W/30W/50W/100W
Marking Depth:
0-1mm
Marking material:
Metal Jewelry Silver Gold
Working area:
110*110mm /175*175mm/ 200*200mm
Support Format:
DXF PLT JPG BMP PNG
Beam Quality:
M2 <1.5
Laser head:
Sino-galvo Laser Head
Power supply:
110V/220V 10% 50Hz/60Hz
Product Overview

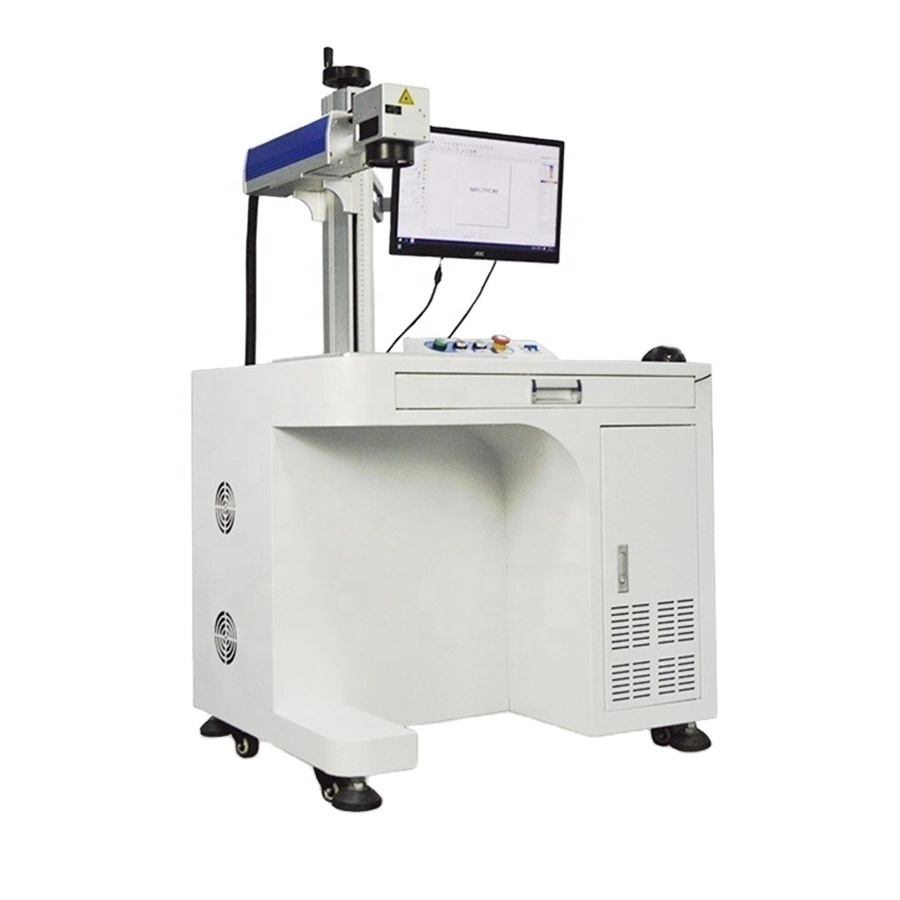

HSGQ S eries 2023 Upgraded Fiber Laser Marking Machine

Fiber laser means a laser that uses a rare-earth-doped glass fiber as a gain medium. A fiber laser can be developed on the basis of an optical fiber amplifier: Under the action of pump light, high power density can be easily formed in the fiber, resulting in a laser of the laser working substance. The energy level "particle number reversal" can form a laser oscillation output when a positive feedback loop (constituting a resonant cavity) is appropriately added. Fiber laser marking machines use laser beams to mark permanent surfaces of various substances. The effect of marking is to reveal the deep material through the evaporation of the surface material, or to “burn” the trace by the light energy to cause the chemical physical change of the surface material, or burn off some of the material through the light energy, showing the required etching. Patterns, text, bar codes, and other types of graphics.
FEATURES AT A GLANCE
*Permanently mark, etch smooth, uneven metals including firearms, tools, parts, jewelry, PVC & Acrylics.
* Compact Scan head with lower maintenance.
* High reliability: laser lifetime is more than 100,000 working hours.
* Foot petal included for production job runs
* Chuck rotary size options for cylindrical objects (optional)
*Operation easily.
Durable High-speed Field Mirror
Ultrafine Galvo
Highest Tech Laser Source
PRODUCT SPECIFICATIONS
No
Item
Fiber Laser Marking Machine
1
Laser Power
20W, 30W, 50W, 100W
2
Max Working Area
70mm, 110mm, 150mm, 175mm, 200mm, 300mm
3
Laser Wavelength
1064nm
4
Marking Speed
0-7000mm/s
5
Monopulse Energy
0.67 mj-1.5 mj
6
Pulse Width
90ns-130ns
7
Repeat Frequency
20KHZ-200KHZ
8
Power Consumed
≦1000W
9
Control Software
Genuine EZCAD
10
Cooling
Air Cooling
11
Power Supply
AC220V+/-10%, 50Hz/60Hz
Samples Show
Max Marking Depth:10mm
Smooth Ring Marking with Rotary
High Precision Marking
Related Products
-Same configuration, different shape.
- Choose your preference.
Sales All Over The World
Various Fairs
FAQ
Q: What’s the package?
A: We have 3 layers package: The outside is plywood case, which is fumigation-free packaging. In the middle is covered with thick sponge to protect the machine from shaking. Inside this is covered by thickening plastic bag for waterproof.

Q: Will the package damaged during transportation?
A: Our package is considerate all the damage factors and make it to be safe, and our shipping agent have full experienced in safe transportation.

Q: How to install and run the machine?
A: Our engineer have installed and tested the machine before shipping. No parts need installed.
For running machine, we have menus and videos to show you for training. And we also will training you on line. Most of customers training to run the machine like this, very little customer come factory for training.

Q: How can I do if the machine goes wrong?
A: If confronted with such problems, please contact us ASAP and do not try to fix the machine by yourself or someone else. We will response within 24 hours as quickly as we can to solve it for you.
