Quick Details
-
Model Number:
-
No. 66121
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS,DIN
-
Material Contact Parts:
-
SS304(1.4301)/SS316L (1.4404)
-
Material Non-contact Parts:
-
SS304(1.4301)
-
Size:
-
1 inch to 1.5 inch ,DN25 to DN40
-
Connection:
-
Butt-weld, Tri-clamp, Thread, Union, Weld-Thread, Flange
-
Seal Material:
-
Silicone, EPDM, FKM, Buna
-
Power Option:
-
Manual
-
Pressure Range:
-
0.2~2.2bar(2.9~31.9psi)
-
External Surface Treatment:
-
Ra32~64uin(o.8~1.6um)
Quick Details
-
Port Size:
-
1 inch to 1.5 inch ,DN25 to DN40
-
Warranty:
-
1 years
-
Place of Origin:
-
Zhejiang, China
-
Model Number:
-
No. 66121
-
Brand Name:
-
COMPASS
-
Standard:
-
SMS,DIN
-
Material Contact Parts:
-
SS304(1.4301)/SS316L (1.4404)
-
Material Non-contact Parts:
-
SS304(1.4301)
-
Size:
-
1 inch to 1.5 inch ,DN25 to DN40
-
Connection:
-
Butt-weld, Tri-clamp, Thread, Union, Weld-Thread, Flange
-
Seal Material:
-
Silicone, EPDM, FKM, Buna
-
Power Option:
-
Manual
-
Pressure Range:
-
0.2~2.2bar(2.9~31.9psi)
-
External Surface Treatment:
-
Ra32~64uin(o.8~1.6um)
Product Description
Applications

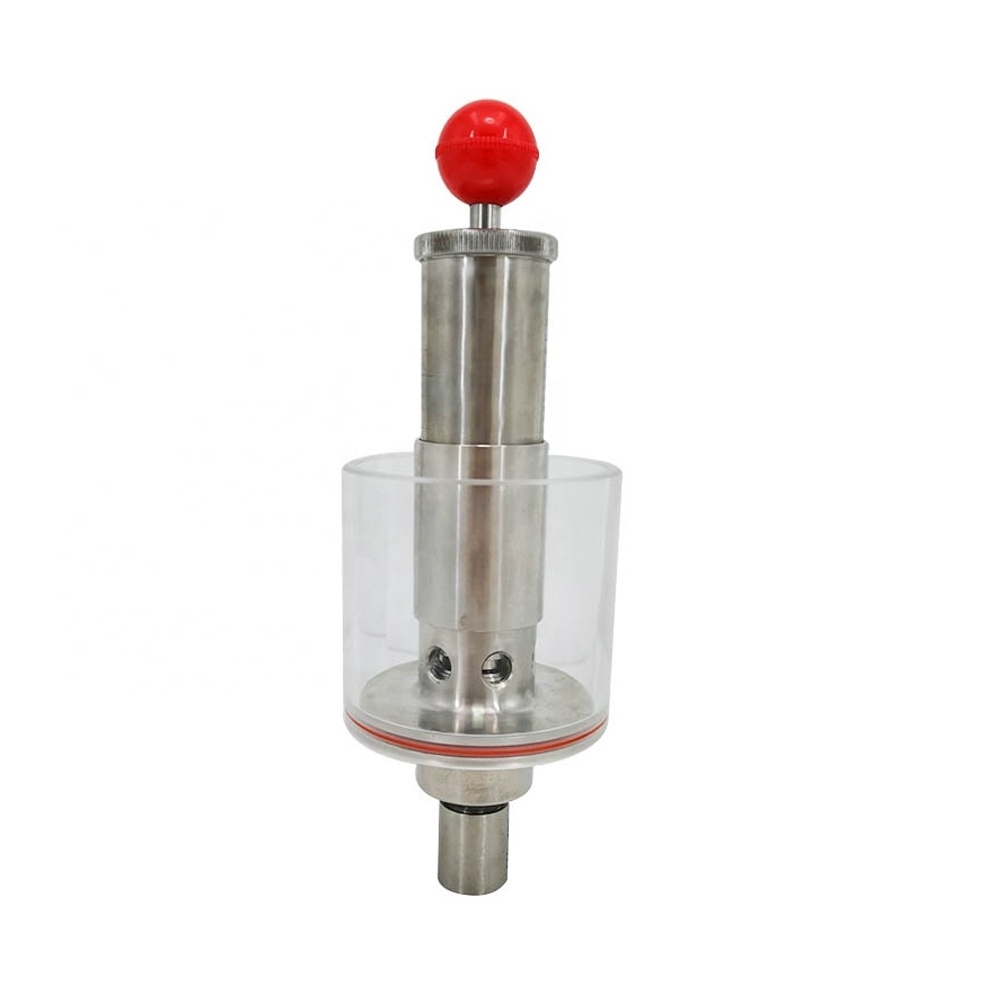

Sanitary Fermentation Tank Air Valve Bunging Valve Water Seal threaded exhaust Valve
Sanitary Air Relief Valve is the sanitary stainless steel valve, It's safety sesign make it prtect the equipment, So it installed in the returen circuit of discharge pressure, It's good for safety protect function in pipeline, Pump, device, storage tank. Extensiveloy use to food, beverage, dairy, Beer industry etc.
Concept
Sanitary Air Relief Valve with spring return are continuously adjutsable. Exactly adjustable to the desired opening pressure, the valves are closed and opened very sensitively with low differential pressure. Sanitary Air Relief Valve is available both in open design(free blowing-off of CO₂) and in closed design enable to collect the excess CO₂
Specification
|
Standard
|
SMS,DIN,3A
|
|
|
|
Material Contact Parts
|
SS304(1.4301)/SS316L (1.4404)
|
|
|
|
Material Non-contact Parts
|
SS304(1.4301)
|
|
|
|
Size
|
1inch to 1.5 inch , DN25 to DN40
|
|
|
|
Connection
|
Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
|
Female Threaded, Socket, Welded, Flange
|
|
|
Seal Material
|
Silicone , EPDM , FKM , Buna . All seals material comply with FDA21CFR117.2600
|
|
|
|
Power Option
|
Manual
|
|
|
|
Pressure Range
|
0.2~2.2bar(2.9~31.9psi)
|
|
|
|
External Surface Treatment
|
Ra32~64uin(o.8~1.6um)
|
|
|
|
Internal Surface Treatment
|
Ra16~32uin(0.4~0.8um)
|
|
|
|
Media
|
Water
|
|
|
Title goes here.
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Temperature range
Domestic Silicone：-22 ~ 302°F (-30~150℃)
Domestic EPDM：14 ~ 230°F (-10~110℃)
Importing Silicone：-40 ~ 392°F (-40~200℃)
Importing EPDM：-13~ 266°F (-25~130℃)
Buna：5~ 212°F (-15~100℃)
FKM：14 ~ 392°F (-10℃~200℃ )
Domestic EPDM：14 ~ 230°F (-10~110℃)
Importing Silicone：-40 ~ 392°F (-40~200℃)
Importing EPDM：-13~ 266°F (-25~130℃)
Buna：5~ 212°F (-15~100℃)
FKM：14 ~ 392°F (-10℃~200℃ )
Options
1.The gasket can be Silicone,EPDM,FKM,Buna. All seals material comply with FDA21CFR117.2600
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
or others upon request.
3.Pressure Range: Changing Spring
4.Available in sizes from 1”to 1.5”，DN25 to DN40
2.Connection can be Butt-weld,Tri-clamp,Male Thread,Female-Male Threaded,Union,Weld-Thread,Flange
or others upon request.
3.Pressure Range: Changing Spring
4.Available in sizes from 1”to 1.5”，DN25 to DN40
Working Principle
The valve controls the pressure by adjusting the spring. When the pressure in the tank is bigger than the valve setting pressure, the valve seat automatically turns on, the pressure in the equipment system is released, and the beer fermentation is effectively processed. The tank is no more in high pressure, which may cause danger. The pressure can be set according to the user's need. The valve has a glass, which can be filled with water. It can be seen when gas comes out. A spare pressure gauge can be available.
Design and features
The valve is used in pressure vessel piping systems.Regulating container high pressure explosion-proof one-way exhaust valve protection function, when the pressure is higher than the set pressure can exhaust (standard 1 bar), whereas closed, pressure regulating lever in scale, the pressure on the scale adjustment, the valve is easy to use, accurate scale, at the same time can also meet the demand in all kinds of production technology.
Application
It is applied in industry and sanitary system. Good sealing,no leak,in the oil, chemical industry, water conservancy,electric power, boiler, machinery, metallurgy, sanitary, construction etc
Packing & Delivery
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
If small order and choose by express , the items are packed by shrink wrap and secondly carton cases.
If heavy weight of cargos,which be packed by strongly seaworthy plywooden cases .
In order to protective items , which will be packed by safety and resistance to shock in plywooden cases .
.
