Quick Details
-
Brand Name:
-
ShowRange
-
Model Number:
-
ETB6-FS
-
Reading range:
-
0.0~199.9
Quick Details
-
Warranty:
-
1 years
-
Power:
-
Electronic
-
Place of Origin:
-
Shanghai, China
-
Brand Name:
-
ShowRange
-
Model Number:
-
ETB6-FS
-
Reading range:
-
0.0~199.9

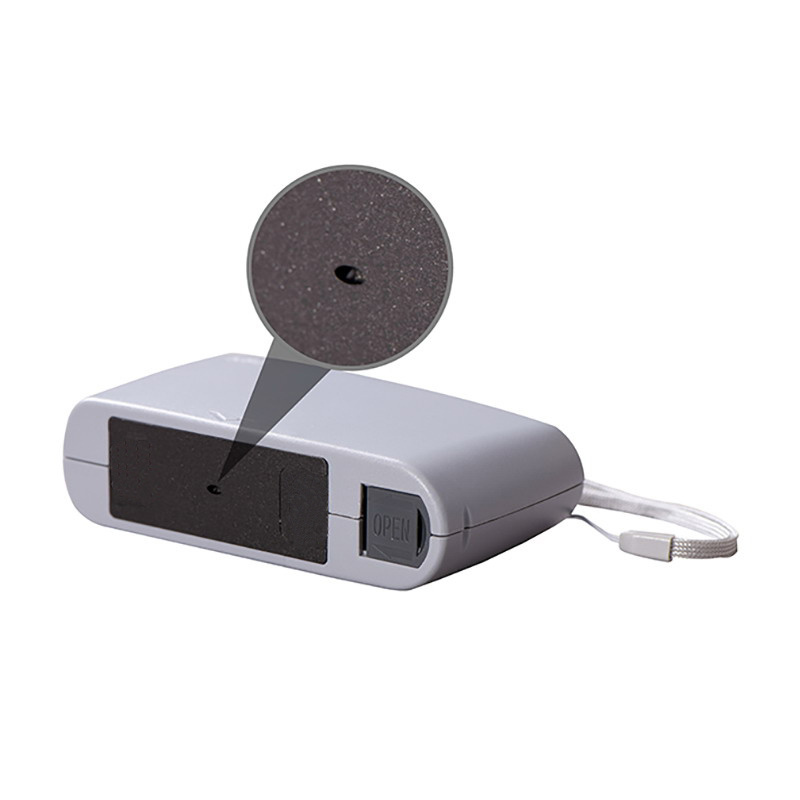

ETB6-FS Micro gloss Meter
|
Technical Specifications |
unit |
parameter value |
|
Reading range |
Gloss unit |
0.0~199.9 |
|
Indication error |
Gloss unit |
±1.5 |
|
Measuring light spot |
Mm2 |
1.5x3 |
|
Measurement window |
Mm2 |
2x4 |
|
Projection angle |
Deg. |
60 |
|
Host volume (L*W*H) |
Mm3 |
123×38×65 |
|
Host weight |
Gram |
300 |
Applications:
*
Measuring beam diameter 1.5mm, measuring window 4mmx2mm, suitable for gloss measurement of facet surface.
*Gloss measurement on the surface of coating materials such as paints, lacquers, paints and inks.
*Gloss measurement of the surface of building decoration materials such as stone, ceramic tile and profile.
*Gloss measurement of paper, bamboo, plastic, film and other surfaces.
*Gloss measurement of the surface of other materials.
Features:
*Single section 5
#
(AA) alkaline batteries or rechargeable batteries are equally easy to use.
*Low energy consumption: Single-cell alkaline battery can be continuously turned on for more than 58 hours.
*The whole set of instruments is designed in one piece, ready to use and easy to carry.
*Specially adjust the button cover for more peace of mind.
*The mouth is anti-scratch coating treatment to prevent scratching the object.
*Small size, beautiful appearance, stable performance and convenient use.
Service:
*One years warranty, indefinite maintenance.
*Free adjustment of instruments indefinitely.
*Provide technical support related to gloss measurement
