Quick Details
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SG820P
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
8 ports POE Switch
-
product Model:
-
WOR-8GE-2GE-POE
-
PoE Ports:
-
8
-
Uplink Ports RJ45 Ports:
-
2
-
Certifications:
-
CE, FCC, RoHS
-
Max Transmission Distance:
-
100m
-
Total Power Budget:
-
96/120W
-
Warranty:
-
3 Years
-
Place of original:
-
China
-
Port of shipment:
-
Shenzhen, Yantian
Quick Details
-
Transmission Rate:
-
10/100/1000Mbps
-
Communication Mode:
-
Full-Duplex
-
Switch Capacity:
-
20
-
Brand Name:
-
Wanglink
-
Model Number:
-
WOR-SG820P
-
Place of Origin:
-
Guangdong, China
-
Product name:
-
8 ports POE Switch
-
product Model:
-
WOR-8GE-2GE-POE
-
PoE Ports:
-
8
-
Uplink Ports RJ45 Ports:
-
2
-
Certifications:
-
CE, FCC, RoHS
-
Max Transmission Distance:
-
100m
-
Total Power Budget:
-
96/120W
-
Warranty:
-
3 Years
-
Place of original:
-
China
-
Port of shipment:
-
Shenzhen, Yantian
Product Description

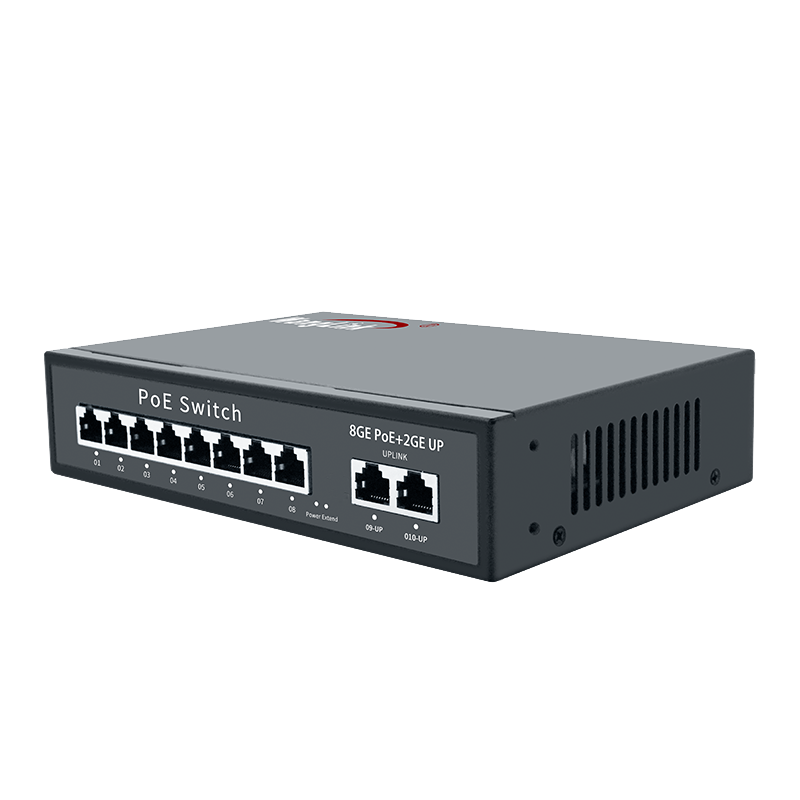

Wanglink 8GE POE+ 2GE Uplink Port Built-in Power Supply 120W Gigabits 8 Port POE Switch For CCTV Camera AP
Features:
1. IEEE 802.3, IEEE 802.3u, IEEE 802.3af/at PoE compliant
2. Support PoE IP cameras, PoE WIFI AP, and PoE IP phones
3. Fluid Control: Full-duplex: IEEE 802.3x, Half-duplex: back pressure
4. One-key Smart: Supports two kinds of working modes (100Meter POE, Extend 250Meter POE VLAN Mode)
5. All ports support wire speed switching, jumbo frame transmission
6. Support upstream ports lightning protection
7. Dynamic power control to ensure stable output power (Enhanced)
8. Improved anti-interference capability, to solve problems in the installation of grounding devices (Enhanced, twice as good as other manufacturers' products)
9. Reliable short-circuit protection to ensure safety (Enhanced)
10. Over-voltage and under-voltage protection (Some other manufacturers' products don't support this)
Products Show
|
Model
|
8GE-2GE-POE
|
|
PoE Ports
|
8
|
|
Uplink Ports RJ45 Ports
|
2
|
|
VLAN Isolation
|
×
|
|
SUPM Mode(250m)
|
×
|
|
Max Transmission Distance
|
100m
|
|
Total Power Budget
|
96/120W
|
|
Switching Capacity
|
20G
|
|
Transmission Method
|
Store and forward
|
|
Power Input
|
100~240V AC, 50-60 Hz
|
|
POE Standard
|
IEEE 802.3af, IEEE 802.3at
|
|
Power Output
|
Up to 30W per port
|
|
Pin Assignment
|
1/2(+), 3/6(-)
|
|
Temperature
|
Working: -20°~65°C Storage: -40°~70°C
|
|
PSE Type
|
End-Span
|
|
Humidity
(Non-condensing) |
Working: 10~90% Storage: 5~95%
|
|
Network protocol
|
IEEE 802.3, IEEE 802.3i 10Base-T, IEEE 802.3u 100Base-TX, IEEE 802.3ab 1000Base-T, IEEE 802.3af/at, IEEE 802.1q
|
|
Certifications
|
CE, FCC, RoHS
|
Our Certifications
Our Company
About Factory
Wanglink headquarter is located in Shenzhen Xiaxue Industry Park , where is a China Hi-tech Industrial Park, covering an area of 20 square kilometers,Brought together many advanced enterprises in the communication industry.Wanglink is one of the important enterprises in this Creative Industrial Park, gaining great support from local government. It is with registered capital of 5 million RMB, covering an area of nearly 2000 square meters for R&D, marketing & sales office.
Since 2013 years, wanglink has invested more than 100 million yuan in production research and development.
We are fully capable of accepting customers' OEM, ODM requirements for products, and targeted products that are suitable for customers.
With rapid development and intensive research work, Wanglink has developed over 400 models in 4 major series, ONU / Switch / SFP / Media converter in dependently. Each series has passed CE Certification,
Formed a complete and highly customizable FTTH/FTTB/FTTX industry chain
Factory Detail
Wanglink obtain the certification of ISO 9000:2000 Quality Management System in June 2015 and the certification of ROHS,CE, FCC in November 2017.
PCB board design and production
Old-Testing Room
Soldering
Warehouse
Customer Photo
2019 CIOE Exhibition
Each year, Wanglink has the plan to
go to the world to participate in the exhibition, Brazil, India, Thailand, Vietnam ....., until now,We have established good business relations with more than 100 countries around the world.
2019 Vietnam ICT COMM
We got many friendship, and hope every our business come to win-win
situation
.each year, we will visit our friend all over the world.
Organized by the Ministry of Industry and Trade of Vietnam and the Ministry of Information and Communication of Vietnam, ICT COMM Vietnam is jointly organized by Vietnam’s largest exhibition service company “ADPEX” United Stock Company and Vietnam Innovation and Promotion Exchange Center (Vietnam Post and Telecommunications Group). Communication electronic ICT professional exhibition.
2018
CeBIT ASEAN Thailand
CeBIT is the world's largest authoritative exhibition in the fields of information, communications and software.
CeBIT ASEAN Thailand, Bangkok International Information and Communication Technology Exhibition, is held in Bangkok, Thailand. The frequency of the exhibition is once a year. It is a series of exhibitions held by the Hannover Messe in Southeast Asia.
FAQ
Q:Why choose Wanglink?
1) Prompt delivery and remarkable services .
2) Competitive selling prices
3) Rich experience of OEM & ODM co-operation
4) 100% new materials for production and 100% reliable quality
Q: Can I have a sample order? What is your MOQ?
A: Yes, we welcome sample order to test and check quality. MOQ is 1 for normal products.
Q: How do you ship the goods and how long does it take arrive?
A: Sea transportation & Air transportation & Express ( DHL / UPS / TNT / Fedex / EMS ). Air transportation & Express usually take 3-5 days to arrive.
Q: Could I use our own logo and label?
A:
Yes, we provide OEM/OEM service and make the products with your own label.
