Industrial Commercial Single Spiral Fresh Fruit juicer extractor machine For Coconut Sugar Cane Orange Carrot Pomegranate Mango

Industrial Commercial Single Spiral Fresh Fruit juicer extractor machine For Coconut Sugar Cane Orange Carrot Pomegranate Mango

FOB Reference Price: Get Latest Price

≥1 Pieces

US $8190

≥100 Pieces

US $1850

Free Inquiry

Customized Request

Product Details

{{item.text}}

Quick Details

Voltage:: 380V, 380V (220V customization)

Power:: 1.5-11, 1.5kw

Weight:: 110 KG, 80kg

Dimension(L*W*H):: 1160*440*920mm

Model:: UDLZ-0.5

Capacity:: 0.5t/h(tomato)

Dimension:: 910*385*810mm

Filter aperture:: Standard 0.6mm(0.3-2mm)

Quick Details

Place of Origin:: Henan, China

Brand Name:: UD

Type:: Fruit and vegetable juicer

Voltage:: 380V, 380V (220V customization)

Power:: 1.5-11, 1.5kw

Weight:: 110 KG, 80kg

Dimension(L*W*H):: 1160*440*920mm

Model:: UDLZ-0.5

Capacity:: 0.5t/h(tomato)

Dimension:: 910*385*810mm

Filter aperture:: Standard 0.6mm(0.3-2mm)

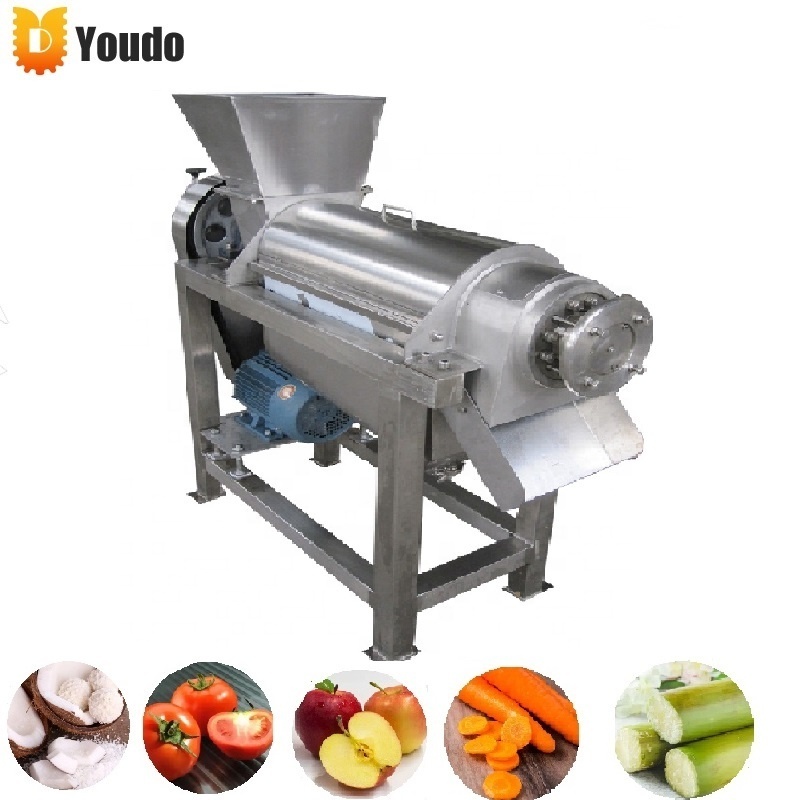

Industrial heavy duty singe screw juicer machine

Structure

The equipment is mainly composed of feeding hopper, front supporting seat, screw, filter, Sheng Ju, rear support, slag tank and other parts.
The left end of the screw spindle is supported in the flow bearing seat, the right end is supported in the hand wheel bearing seat, and the motor is driven by a pair of V-belt drive helix;

Scope of application

Ø The machine is suitable for crushing tomatoes, pineapples, apples, oranges, blueberries, peppers, spinach, coconut meat and various vegetables squeezing and dehydration;

How it works

1. When the fruits and vegetables after crushing or enucleating enter the machine through the material inlet, the
bottom diameter Gradually increase the pitch and gradually reduced, when the material is spirally propelled, because the spiral cavity volume reduction, the formation of the material squeezing.

2. The direction of rotation of the screw spindle from the feed hopper to slag tank direction, clockwise.

3. The raw material is fed into the hopper and pressed under the helical propulsion.

4. The squeezed juice flows through the strainer into the bottom juice holder, and the waste is discharged through the annular gap formed between the spiral and the conical part of the pressure regulation.

5. The pressure head moves along the axial direction to adjust the size of the gap.

6. For clockwise (from the slag tank device to the feed hopper to see turning the hand wheel bearing seat, the pressure

regulator head to the left, the gap is reduced, otherwise the gap becomes larger.)

7. Change the size of the gap, that is, adjust the slag Of the resistance, you can change the slag rate, but if the gap is too small, under strong extrusion, part of the slag particles and the juice will be squeezed through the filter, despite the increase in juice, but the relative decline in the quality of juice, voids Depending on the size of the user specific process requirements may be.

8. So as to achieve the purpose of automatic separation of juice and slag.

Products Description

Model	UDLZ-0.5	UDLZ-1.5	UDLZ-2.5
Capacity	0.5t/h(tomato)	1.5t/h(tomato)	2.5t/h(tomato)
Power	1.5kw	5.5kw	15kw
Voltage	380V （220V customization）			380V （220V customization）	15kw
Dimension	910385810mm	13005001330mm	14807401780mm
Weight	80kg	100kg	120kg
Filter aperture	Standard 0.6mm (0.3-2mm)			Standard 0.6mm (0.3-2mm)	Standard 0.6mm 0.3-2mm

Quality assurance

We have always focused on research and development because they are the key to our corporate innovation. They make us do better in production, technical service and marketing.
We provide high-quality machines and professional after-sales service.
Our goal is to maximize customer satisfaction and value. We usually provide 1 year warranty and free common accessories.

We promise that our products are brand new and have not been used. They are made of corresponding materials and adopted a new design.
The quality, specifications, and functions are in compliance with the contract requirements.
We promise that the products produced on this production line can be stored for one year without any additives.

Test and teardown

We will take the initiative to test the operation of the machine when it is completed, and take videos to let customers rest
assured.When disassembling, we will paste the corresponding label on each part, and provide multi-language installation video and instruction manual. Customer satisfaction is our aim.

Package

We will wrap the machine with film to avoid damp and scattered during transportation, and thicken the export wooden box to surround the machine to protect the machine from impact and friction. The size depends on the machine.

Transportation

We can provide multiple channels of transportation. We guarantee that the freight forwarders we use have more than 5 years of cooperation history, provide you with fast timeliness and economic prices, and ensure the safety and integrity of your machines.

Installation and commissioning

After the equipment arrives at the customer's workshop, please arrange the equipment in accordance with the floor plan drawn up by us. During the epidemic, we can use online videos or video tutorials to guide debugging.

After the epidemic is over, we can also arrange professional engineers to your factory. You need to provide our engineers' round-trip air tickets and accommodation, as well as salary.
