- Product Details
- {{item.text}}
Quick Details
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
4132*1080*2700 mm
-
Weight:
-
200 KG
-
Usage:
-
Slag Separation Screening
-
Color:
-
Red
-
Grain diameter:
-
less than 300 mm
-
Capacity:
-
50-100T/h
-
Noise:
-
less than 70 DB
-
Mesh size:
-
1.0-1.5mm
-
Feature:
-
Easy Operation
-
Item:
-
Sieve Grains
-
Applicable Material:
-
Sand Stone Coal Ore Slag
-
Layer(s):
-
1 Layer
Quick Details
-
Type:
-
Rotary type
-
Place of Origin:
-
Henan, China
-
Brand Name:
-
ZHONGBANGREN
-
Voltage:
-
Optional
-
Dimension(L*W*H):
-
4132*1080*2700 mm
-
Weight:
-
200 KG
-
Usage:
-
Slag Separation Screening
-
Color:
-
Red
-
Grain diameter:
-
less than 300 mm
-
Capacity:
-
50-100T/h
-
Noise:
-
less than 70 DB
-
Mesh size:
-
1.0-1.5mm
-
Feature:
-
Easy Operation
-
Item:
-
Sieve Grains
-
Applicable Material:
-
Sand Stone Coal Ore Slag
-
Layer(s):
-
1 Layer
china rotary drum sieve/Trommel screen,Rotary Drum screen small rotary trommel drum screen,gold trommel sieve

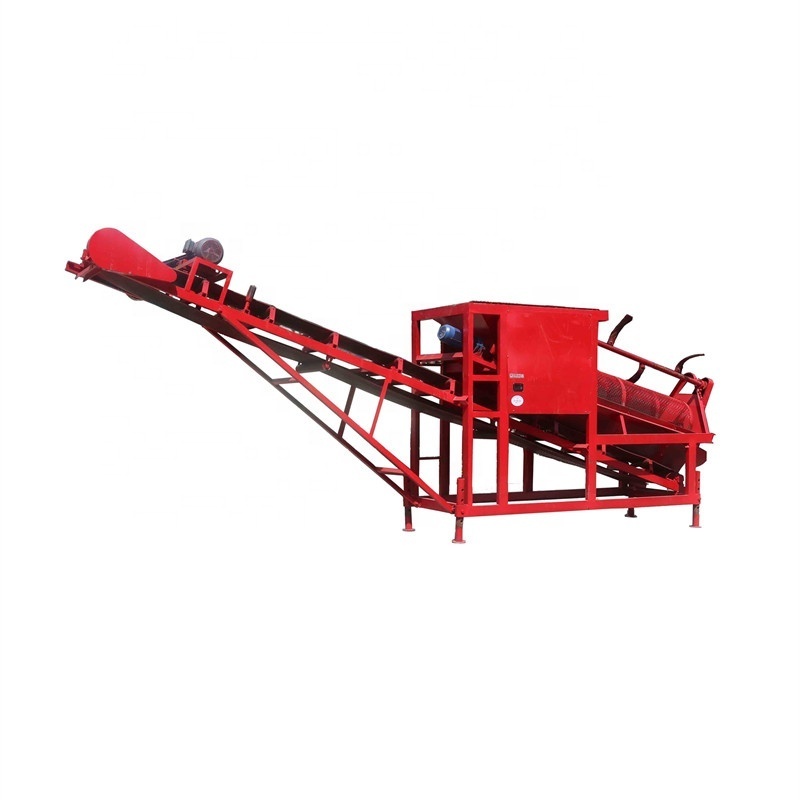

SZJ trommel screen is a kind of mineral machine which uses screening equipment to separate the coarse and fine materials. It consists of a shelf, a reducer, a conveyor belt, a rotating screen, a motor and other parts. It is mainly used for the screening of various solid materials under the size of 300mm, with high screening efficiency, small dust, low noise (less than 70db), small maintenance, long service life, convenient maintenance, simple structure, economic application and a series of advantages, the workload can reach 50T to 100T per hour.
|
Model |
Drum specification ( mm) |
Drum length (mm) |
Roll body Angle |
Drum rotation speed (r/min) |
Screen size (mm) |
Maximum feed diameter( mm) |
Yield ( m³/h)
|
power (KW) |
Dimension(mm) |
|
SZJ20 |
600 |
1500
|
16 |
27.7
|
15*15 |
125 |
20
|
1.5-4 |
4132*1080*2700 |
|
SZJ30 |
600 |
1940 |
15
|
27.7 |
15*15
|
125
|
30 |
2.2-4-0.55 |
7000*1080*2700
|
|
SZJ50 |
950 |
3300 |
20 |
33 |
15*15 |
150 |
50 |
3-7.5-0.5
|
11287*1880*4115
|
